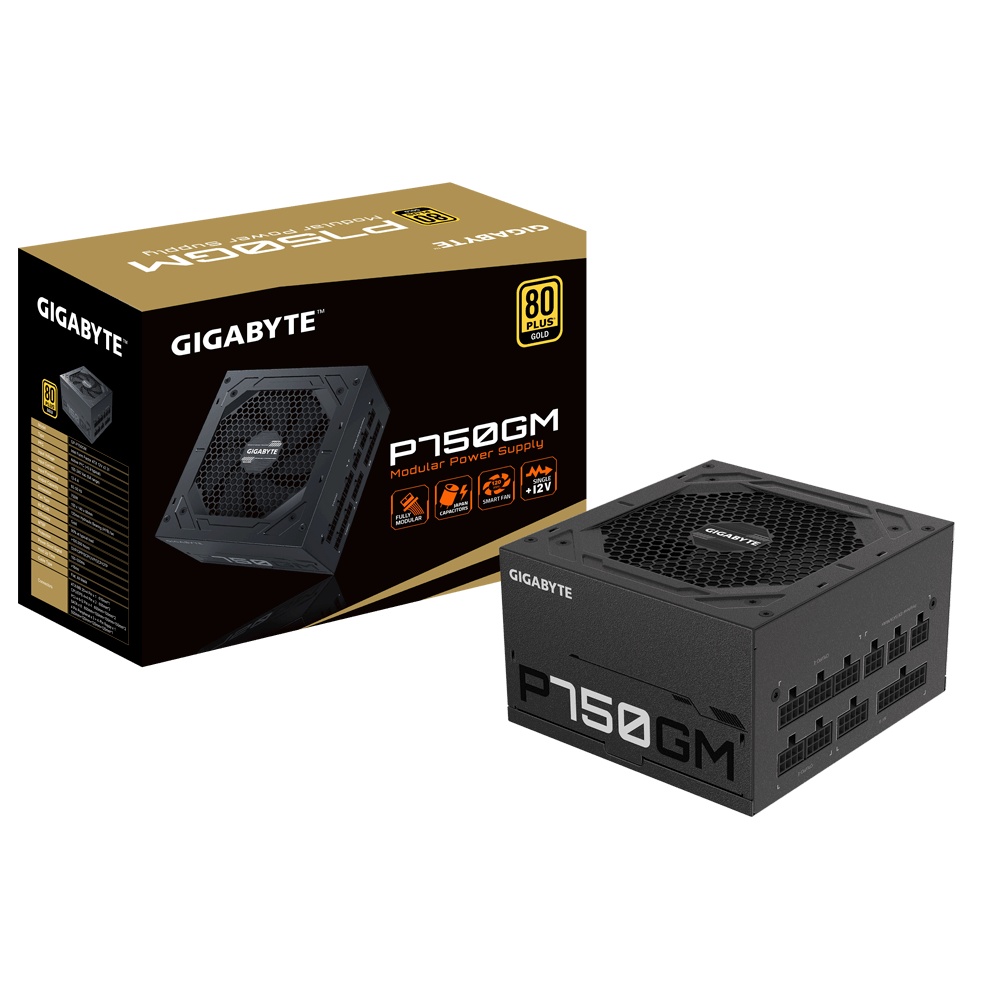

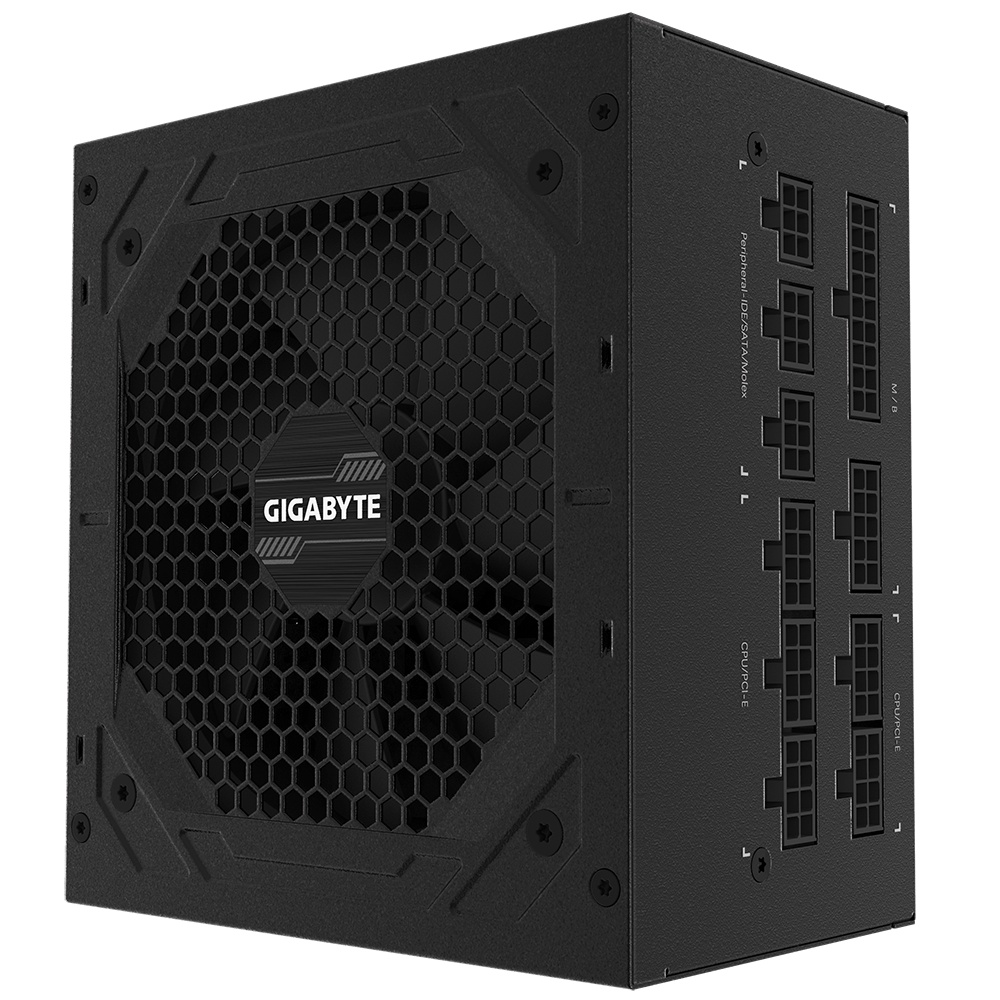

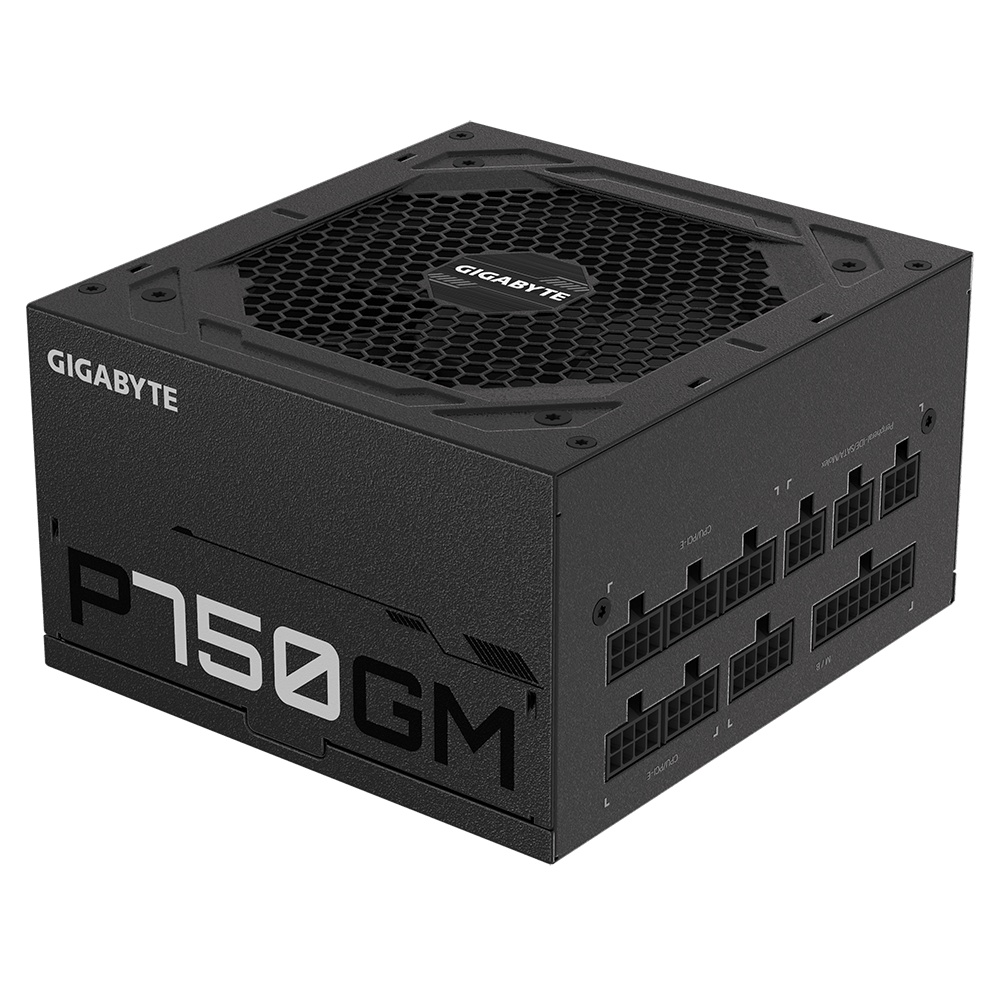

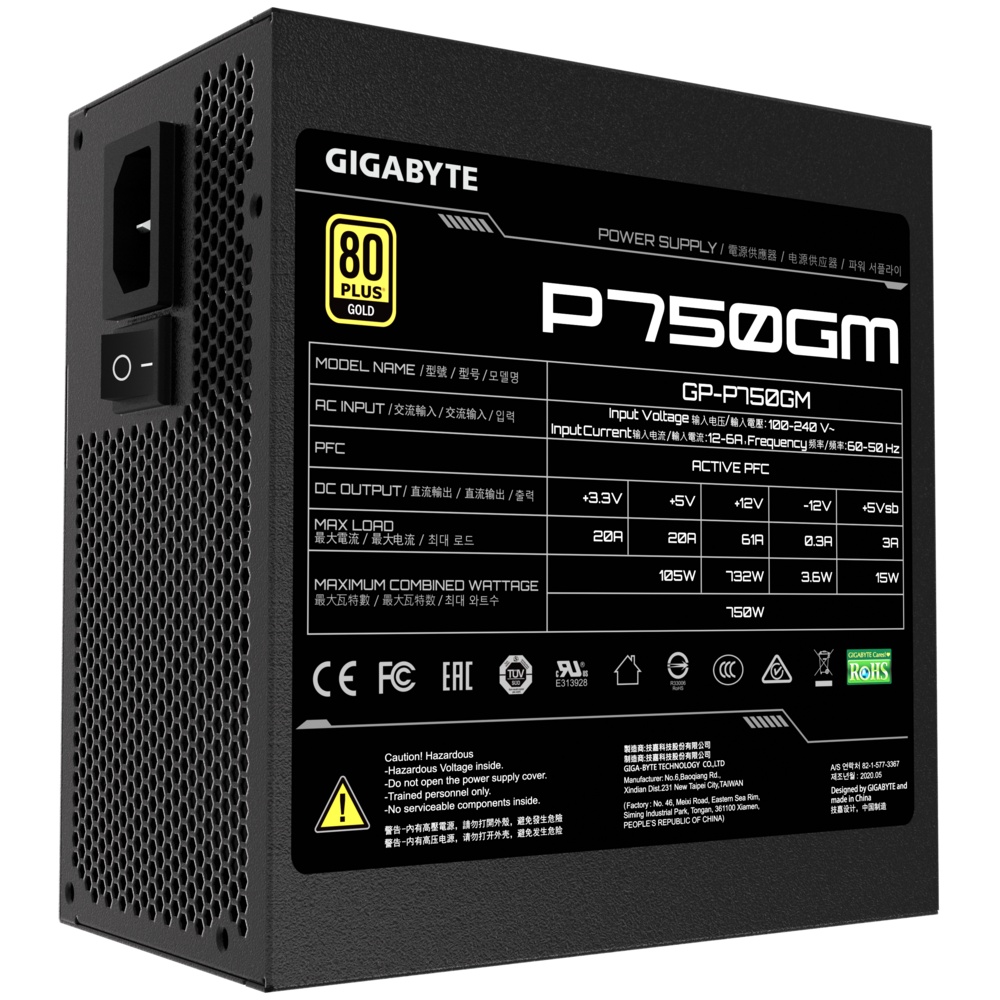

Sursa Gigabyte GP-P750GM, 80 PLUS® Gold, 750W
370 69 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

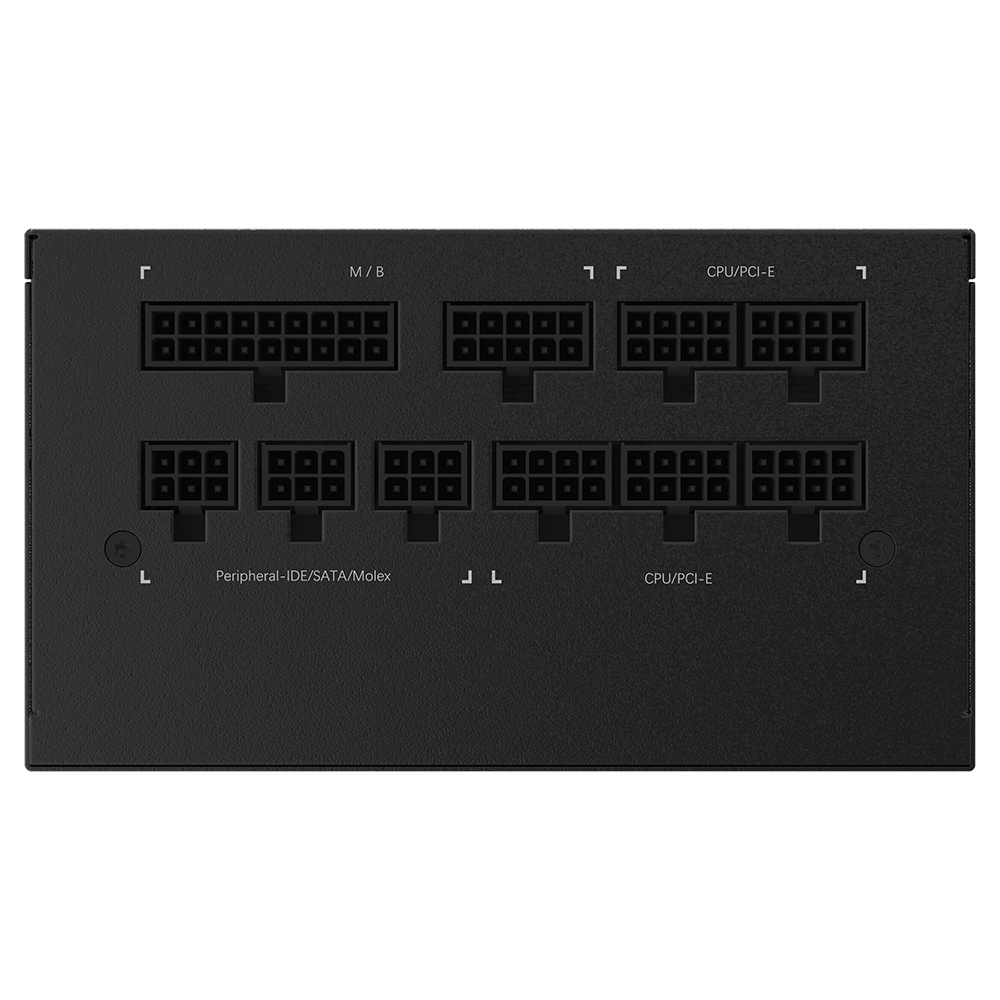

Sursa Gigabyte Gigabyte P750GM 80+ Modulara Model GP-P750GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6 A Input Frequency 60-50 Hz Output Capacity 750W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing ( HYB ) fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-500ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 : 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm *1 https://www.gigabyte.com/Power-Supply/GP-P750GM/sp#sp
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
GP-P750GM
Categorii
Brand
Number of fans
1 fan(s)
Fan diameter
12 cm
80 PLUS certification
80 PLUS Gold
Power supply unit (PSU) form factor
ATX
Purpose
PC
EPS power connector (4+4 pin)
Yes
PCI Express connector
Yes
Cabling type
Fully-Modular
Fan location
Top
Motherboard power cable length
61 cm
Efficiency
90%
Motherboard power connector
20+4 pin ATX
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Number of SATA power connectors
8
Power Factor Correction (PFC) type
Active
Total power
750 W
Modular
Yes
PCI Express power connectors (6+2 pin)
4
SATA power cable length
150,600 mm
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Input current
12 - 6 A
Floppy drive power connector
1
Peripheral (Molex) power connectors (4-pin)
4
ATX version
2.31
CPU power cable length
60 cm
PCI Express power cable length
60 cm
Peripheral (Molex) power cable length
120,500 mm
Harmonized System (HS) code
84733020
Floppy disk drive cable length
12 cm
Hold time
16 ms
Cooling type
Active
Mean time between failures (MTBF)
100000 h
Depth
140 mm
Width
150 mm
Height
86 mm
Cables included
CPU, PCIe, Peripheral (Molex), SATA
AC input frequency
50 - 60 Hz
