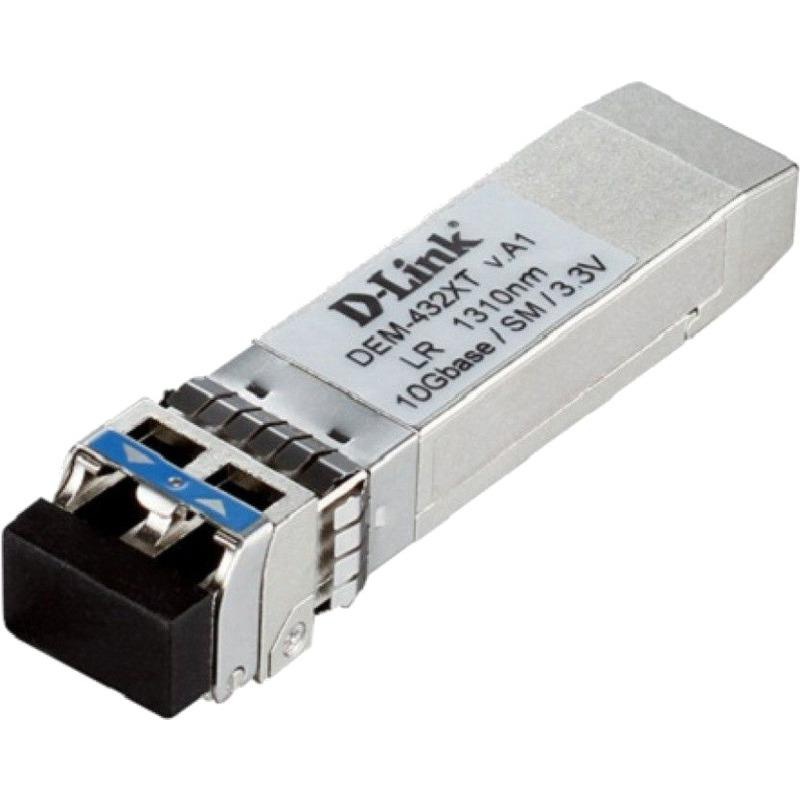

Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR; Fibre Channel FC-PI Standard: 1200-SM-LL-L; Distance Capacity: 10KM; Speed: 10 Gbps; Duplex LC connector; Single- direction; Wavelength: 1310 nm; Power/
207 95 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR; Fibre Channel FC-PI Standard: 1200-SM-LL-L; Distance Capacity: 10KM; Speed: 10 Gbps; Duplex LC connector; Single- direction; Wavelength: 1310 nm; Power/ Maximum Input Current: 3.3 V:300 mA; Minimum/ Maximum Power Budget: 4.1 dB/ 10.1 dB;
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
DEM-432XT
Categorii
Brand
Package depth
131 mm
Storage relative humidity (H-H)
5 - 95%
Compliance certificates
RoHS
Storage temperature (T-T)
-40 - 85 C
Operating temperature (T-T)
0 - 70 C
Hot-Plug support
Yes
Depth
118 mm
Fiber cable diameters supported (core/cladding)
9/125 m
Operating relative humidity (H-H)
5 - 85%
SFP transceiver type
Fiber optic
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
Fiber optic connector
LC
Wavelength
1310 nm
Maximum data transfer rate
10000 Mbit/s
Maximum transfer distance
10000 m
Networking standards
IEEE 802.3ae
Harmonized System (HS) code
85369010
Duplex system
Full
Multi-mode fiber (MMF) supported
No
Safety
UL, TUV, CDRH
Certification
CE, FCC, VCCI, MSA
Mean time between failures (MTBF)
4650000 h
Product colour
Gold, Metallic
Products per shipping (inner) case
50 pc(s)
Shipping (inner) case length
36 cm
Shipping (inner) case net weight
3.2 kg
Pallet gross weight (air)
272 kg
Products per pallet (air)
3000 pc(s)
Pallet height (air)
199 cm
Pallet gross weight (sea)
272 kg
Products per pallet (sea)
3000 pc(s)
Pallet height (sea)
199 cm
Shipping (inner) case gross weight
4.2 kg
Shipping (inner) case height
31 cm
Shipping (inner) case width
26 cm
Pallet gross length
102 cm
Pallet gross width
122 cm
Master (outer) cases per pallet (air)
60 pc(s)
Master (outer) cases per pallet (sea)
60 pc(s)
Fiber ethernet cabling technology
10GBASE
Package width
74 mm
Package height
49 mm
Package weight
64 g
Maximum current
300 A
Height
56.5 mm
Width
148 mm
Weight
195 g
