NOU

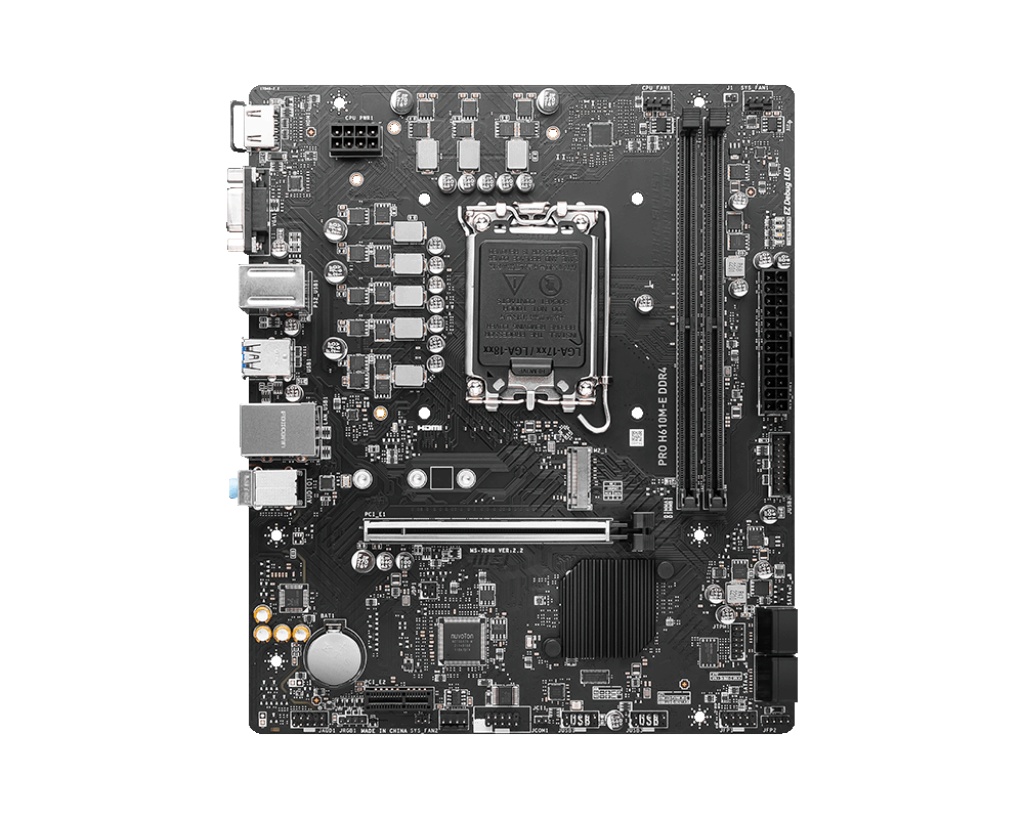

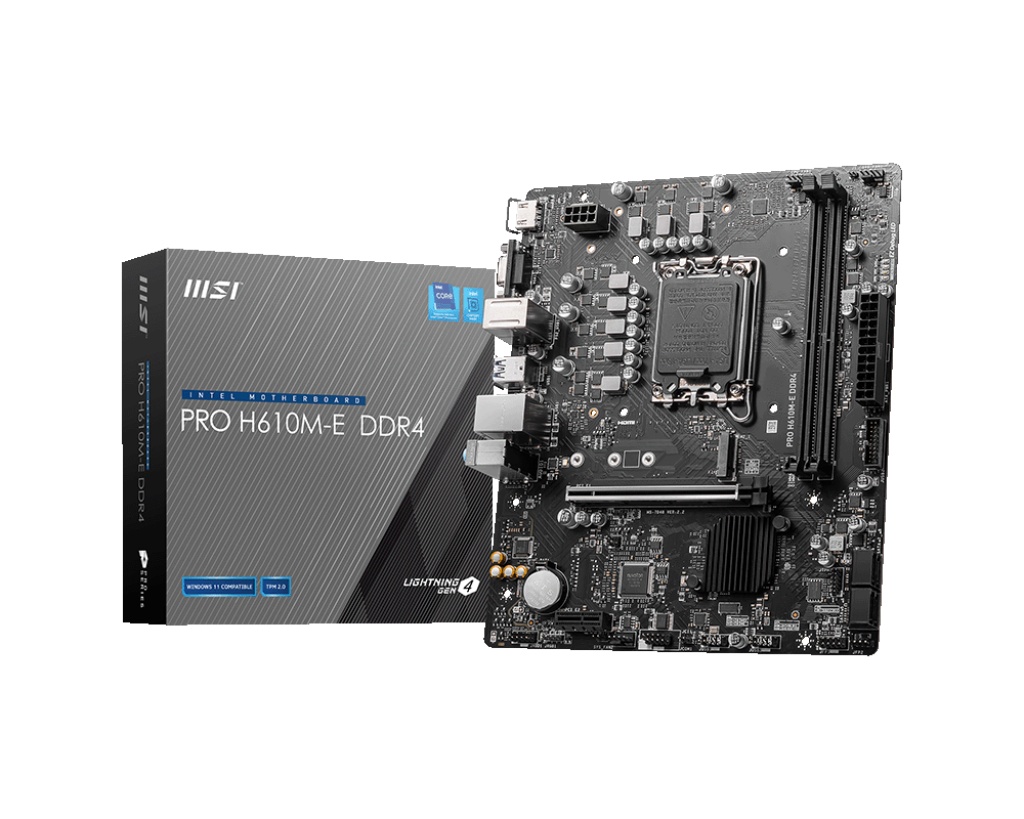

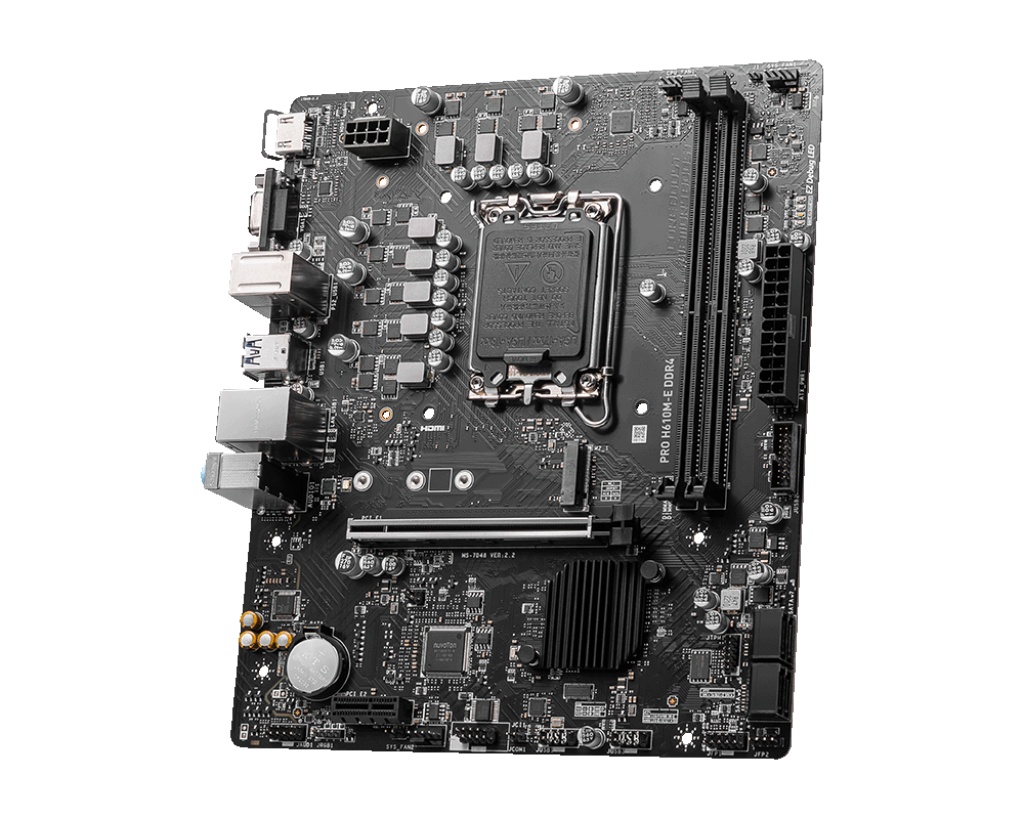

Placa de baza MSI PRO H610M-E DDR4, Socket 1700, DDR4, Micro-ATX
339 48 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza MSI PRO H610M-E LGA1700 DDR4 SPECIFICATIONS Model Name PRO H610M-E DDR4 CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® H610 Chipset Graphics Interface 1x PCIe 4.0 x16 slot Display Interface Support 4K@60Hz as specified in HDMI 1.4, VGA – Requires Processor Graphics Memory Support 2 DIMMs, Dual Channel DDR4-3200 MHz (MAX) Expansion Slots 1x PCIe 3.0 x1 slot Storage 1x M.2 Gen3 x4 32Gbps slot, 4x SATA 6Gbps ports USB ports 4x USB 3.2 Gen 1 5Gbps (4 Type-A) 8x USB 2.0 LAN Realtek® RTL8111H Gigabit LAN Audio 8-Channel (7.1) HD Audio with Audio Boost
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
PRO H610M-E DDR4
Categorii
Brand
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
Intel
Memory channels
Dual-channel
Maximum internal memory
64 GB
USB 2.0 ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Audio output channels
7.1 channels
Wi-FI
No
Number of memory slots
2
Ethernet interface type
Gigabit Ethernet
Number of SATA III connectors
4
Weight
760 g
DVI-D ports quantity
0
Parallel processing technology support
Not supported
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Motherboard form factor
micro ATX
Component for
PC
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Supported memory clock speed (max)
3200 MHz
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Maximum number of SMP processors
1
Front panel audio connector
Yes
TPM connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Audio Chip
Realtek ALC897
Onboard-CPU
No
Motherboard chipset family
Intel
Serial-or-Paralel
Yes/No
BIOS memory size
256 Mbit
Number of chassis fan connectors
1
Drivers included
Yes
Processor socket
LGA 1700
VGA (D-Sub) ports quantity
1
USB 2.0 connectors
4
Cables included
SATA
Motherboard chipset
Intel H610
Supported processor sockets
LGA 1700
Height
65 mm
PCI
1
System Management BIOS (SMBIOS) version
3.4
Supported memory clock speeds
2133,2666,2933,3000,3200 MHz
Compatible processor series
Intel Core™ i9
