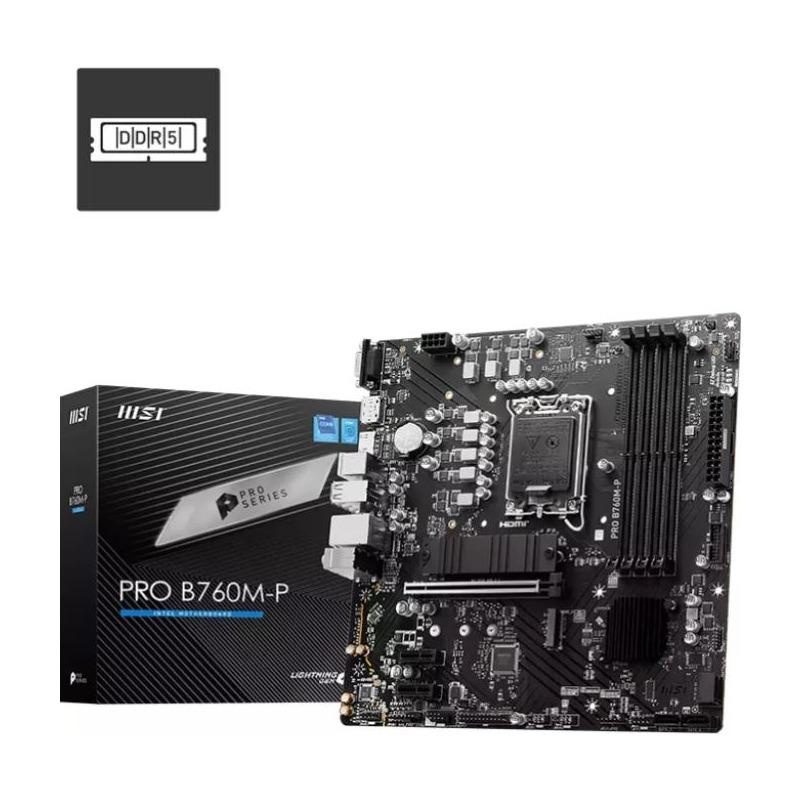

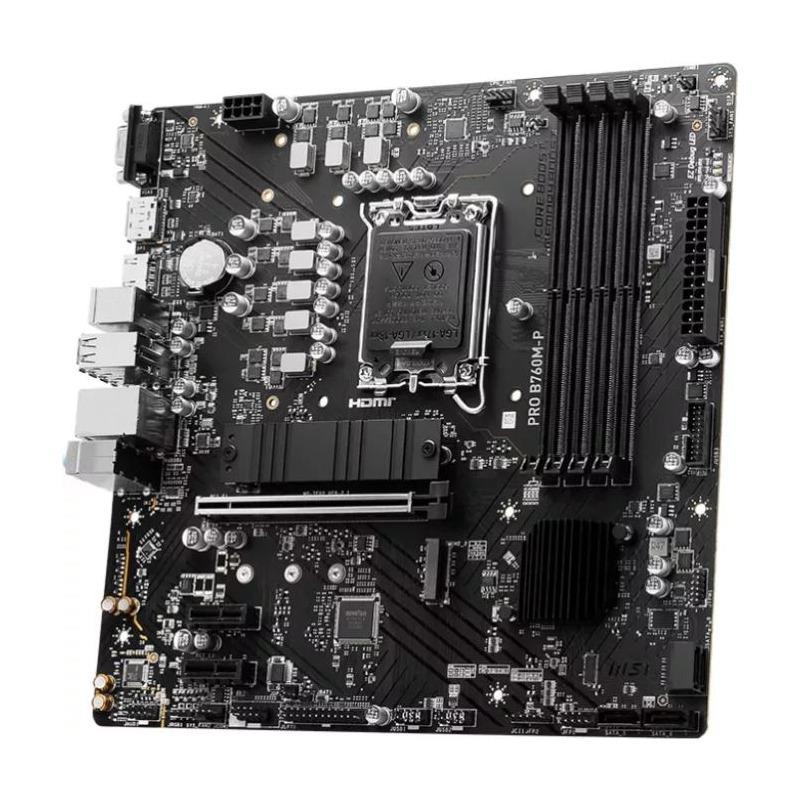

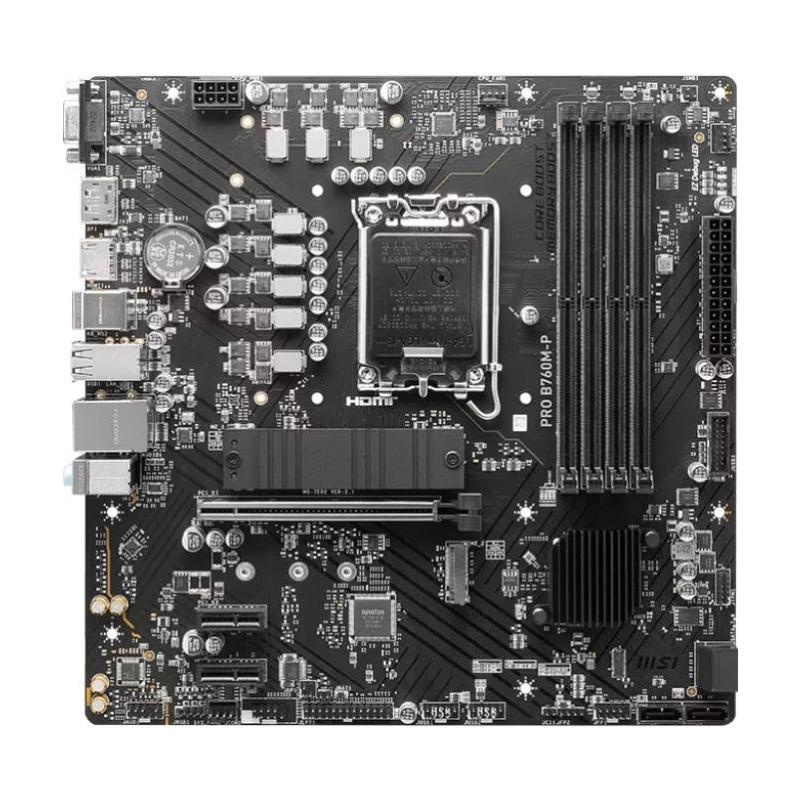

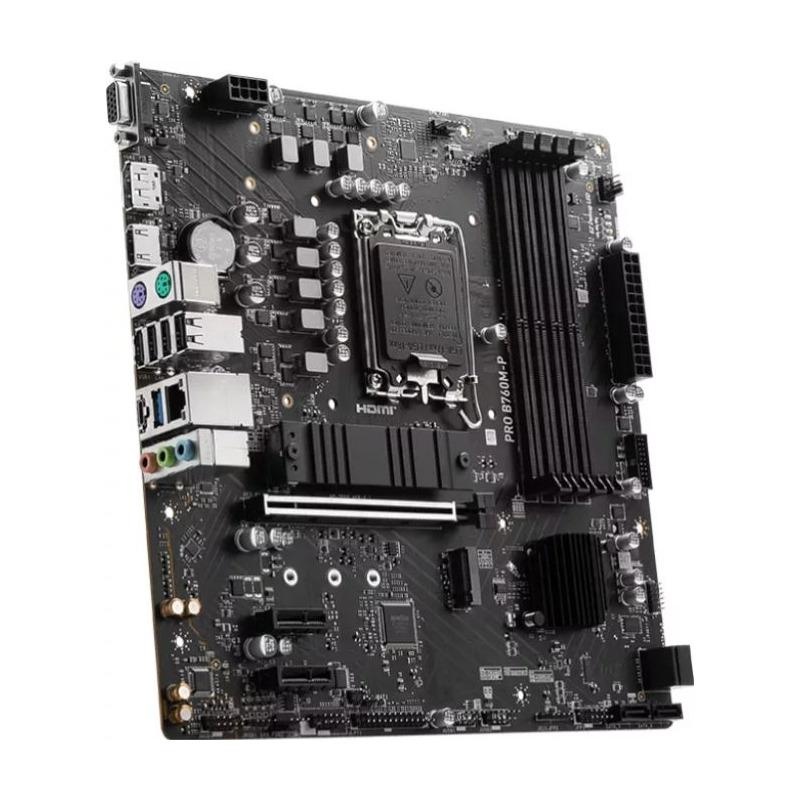

Placa de bază MSI PRO B760M-P LGA1700
458 10 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

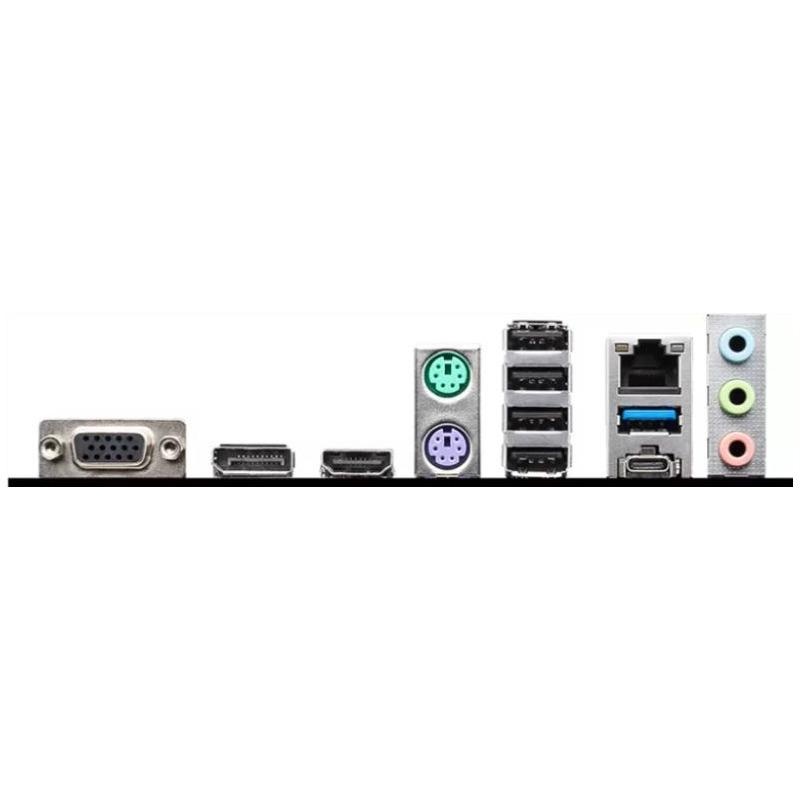

Placa de baza MSI PRO B760M-P LGA1700, 4xDDR5, 1x HDMI 1x DP 1x VGA, 1x PCIE x16 2x PCIE x1, 2x M.2, 4x SATA 6 GB/s, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
PRO B760M-P
Categorii
Brand
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Power source type
ATX
Audio output channels
7.1 channels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
4
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
MB-Format
ATX
USB3
4-8
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
MB-Socket
1700
RAM-Slots
2
PCI-Ex16
1
ACPI version
6.4
System Management BIOS (SMBIOS) version
3.5
USB 2.0 connectors
4
Compatible processor series
Intel Celeron, Intel Pentium Gold
Number of COM connectors
1
Chassis intrusion connector
Yes
PCI-Ex1
2
Parallel connector
Yes
PS/2 ports quantity
2
PCI Express x1 (Gen 4.x) slots
2
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
No
Depth
243.8 mm
Width
243.8 mm
Component for
PC
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cables included
SATA
DisplayPort version
1.4
Ethernet LAN
Yes
Processor manufacturer
Intel
Audio Chip
Realtek ALC897
Maximum internal memory
192 GB
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
1.4
Supported storage drive interfaces
SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
Intel B760
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
1
Headphone outputs
1
