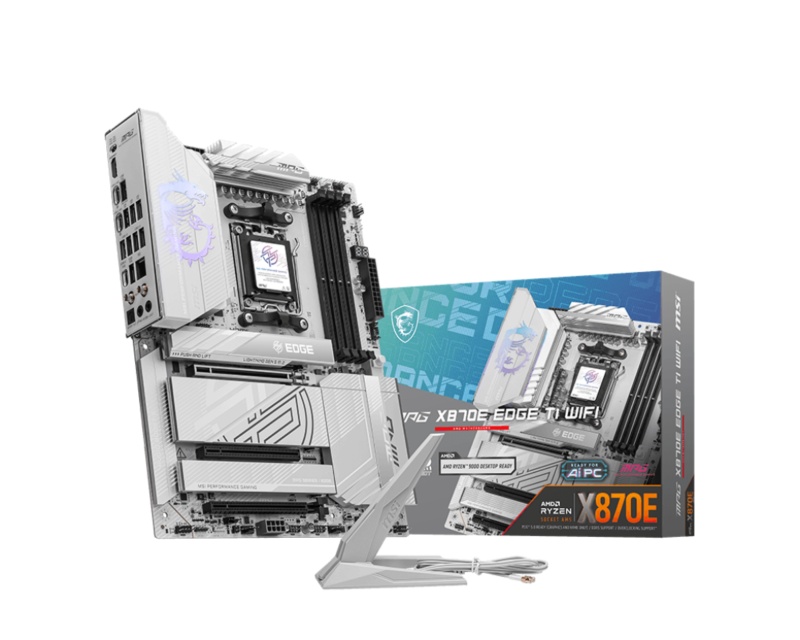

Placa de baza MSI MPG X870E EDGE TI WIFI, Socket AM5, DDR5, ATX
2.251 64 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza MSI MPG X870E EDGE TI WIFI AM5, 4x DDR5, 1x HDMI 2x Type-C DP, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
MPG X870E EDGE TI WIFI
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
1st M.2 highest PCI Express generation
5.0
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Number of SATA III connectors
4
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
2nd M.2 largest key size
2280
RAID levels
0, 1, 5, 10
1st M.2 largest key size
22110
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
3rd M.2 largest key size
2280
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
Total number of SATA connectors
4
Ethernet interface type
5 Gigabit Ethernet
Maximum internal memory supported by processor
256 GB
PC health monitoring
CPU, Fan, Temperature, Voltage
Number of M.2 (M) slots
4
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
4.0
S/PDIF out port
Yes
Number of storage drives supported
8
PCI Express x16 (Gen 3.x) slots
1
LAN controller
Realtek RTL8126
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
2nd M.2 highest PCI Express generation
5.0
Supported memory clock speed (max)
8400 MHz
Supported memory clock speeds
4800,5600,8400 MHz
USB4 Gen 2x2 ports quantity
1
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
Yes
Depth
304.8 mm
Width
243.8 mm
Component for
PC
Product colour
White
DisplayPort version
1.4
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
On-board graphics card
No
Maximum internal memory
256 GB
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
AMD X870E
RAID support
Yes
DisplayPorts quantity
2
VGA (D-Sub) ports quantity
0
