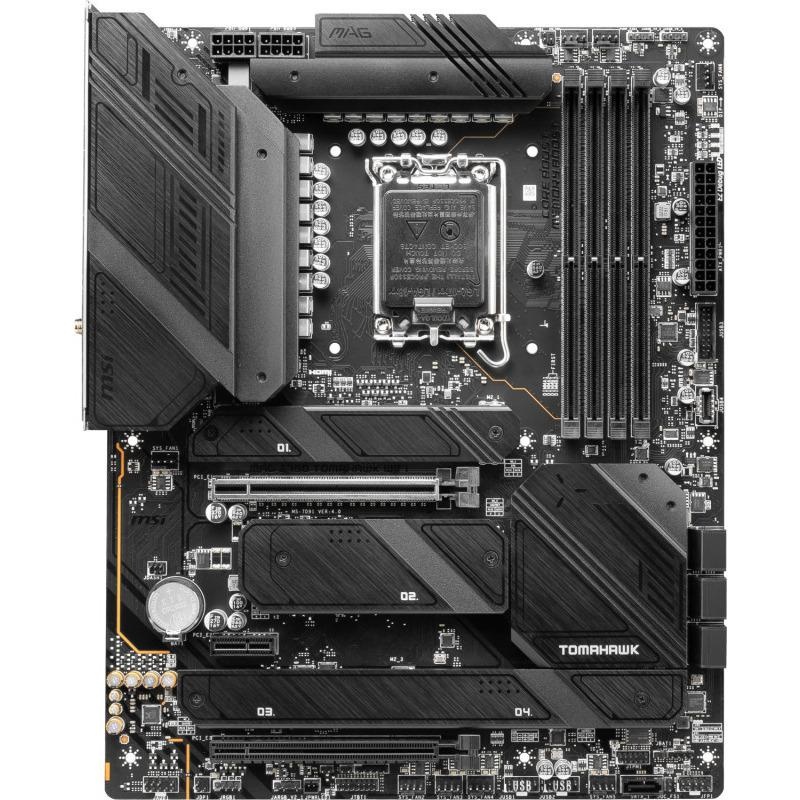

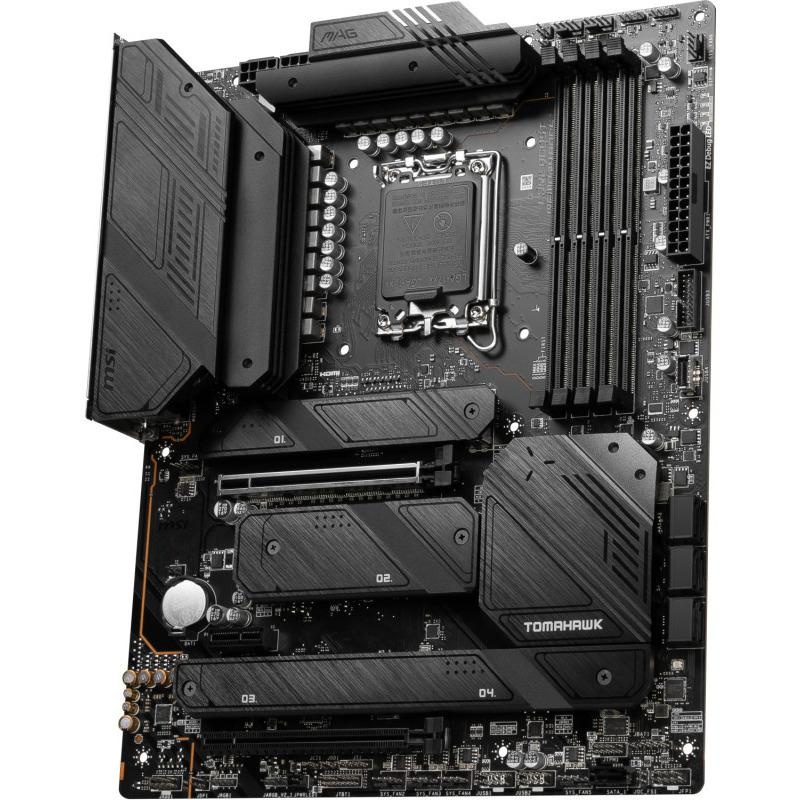

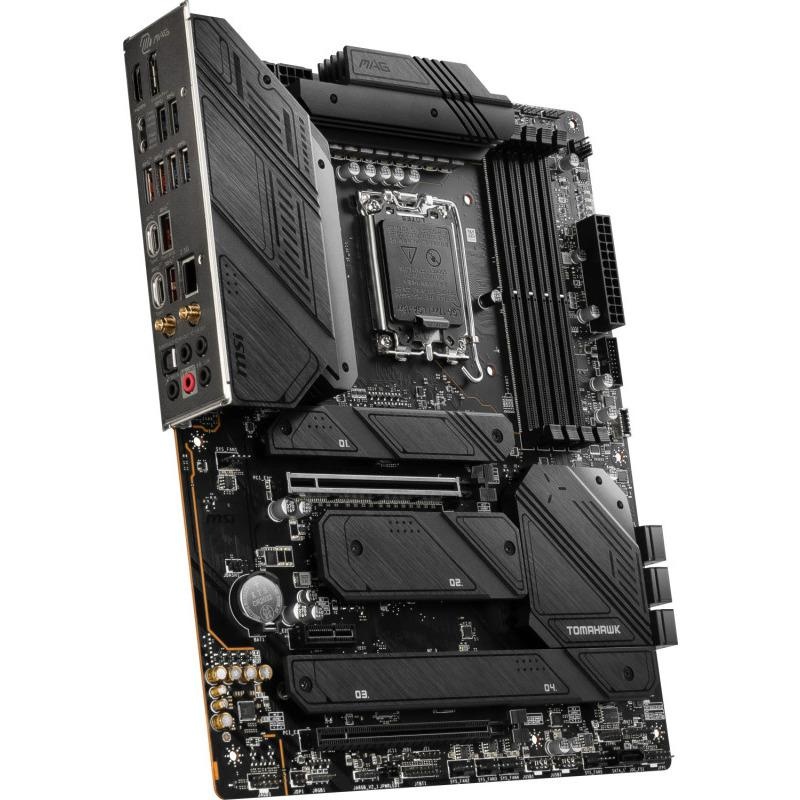

Placa de baza MSI MAG Z790 TOMAHAWK WIFI, Socket 1700, DDR5, ATX

1.979 44 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU Z790 TOMAHAWK WIFI
Disponibil in stoc
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0733.941.350 (Luni-Vineri, 09:00-18:00)

Descriere

Placa de baza MSI MAG Z790 TOMAHAWK WIFI DDR5 LGA 1700 SPECIFICATIONS Model Name MAG Z790 TOMAHAWK WIFI CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® Z790 Chipset Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5 7200+MHz (OC) Storage 4x M.2 Gen4 x4 64Gbps slots, 7x SATA 6Gb/s ports USB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C), 6x USB 3.2 Gen 2 10Gbps (4 Type-A + 2 Type-C), 6x USB 3.2 Gen 1 5Gbps (Type-A), 4x USB 2.0 LAN 1x Intel® 2.5Gbps LAN Wireless / Bluetooth Intel® Wi-Fi 6E, Bleutooth 5.2 Audio 8-Channel (7.1) HD Audio with Audio Boost 5

Ce spun clientii

Detii sau ai utilizat produsul?
Posteaza review

Detalii

SKU
Z790 TOMAHAWK WIFI
Categorii
Placi de baza
Brand
MSI
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Motherboard form factor
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Front panel audio connector
Yes
CPU fan connector
Yes
Number of memory slots
4
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
Supported storage drive types
HDD & SSD
Motherboard chipset family
Intel
USB 2.0 connectors
2
Supported memory clock speed (max)
7200 MHz
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
ACPI version
6.4
System Management BIOS (SMBIOS) version
3.5
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
Compatible processor series
Intel Celeron, Intel Pentium Gold
Chassis intrusion connector
Yes
Number of SATA II connectors
0
Number of SATA connectors
0
Number of M.2 (M) slots
4
S/PDIF out port
Yes
PCI Express x16 (Gen 5.x) slots
2
Maximum internal memory supported by processor
192 GB
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
PCI Express x1 (Gen 4.x) slots
1
Number of SATA III connectors
7
Supported memory clock speeds
4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
RAID levels
0, 5, 10
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
Yes
Depth
304.8 mm
Width
243.8 mm
Component for
PC
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cables included
SATA
DisplayPort version
1.4
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version
5.3
Maximum internal memory
192 GB
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, PCI Express
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Motherboard chipset
Intel Z790
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
