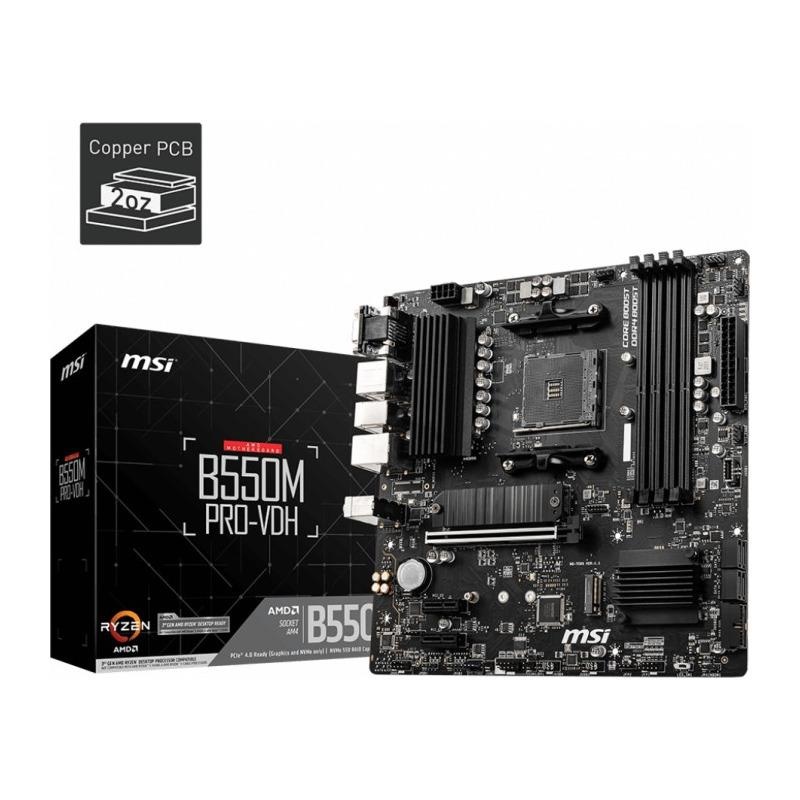

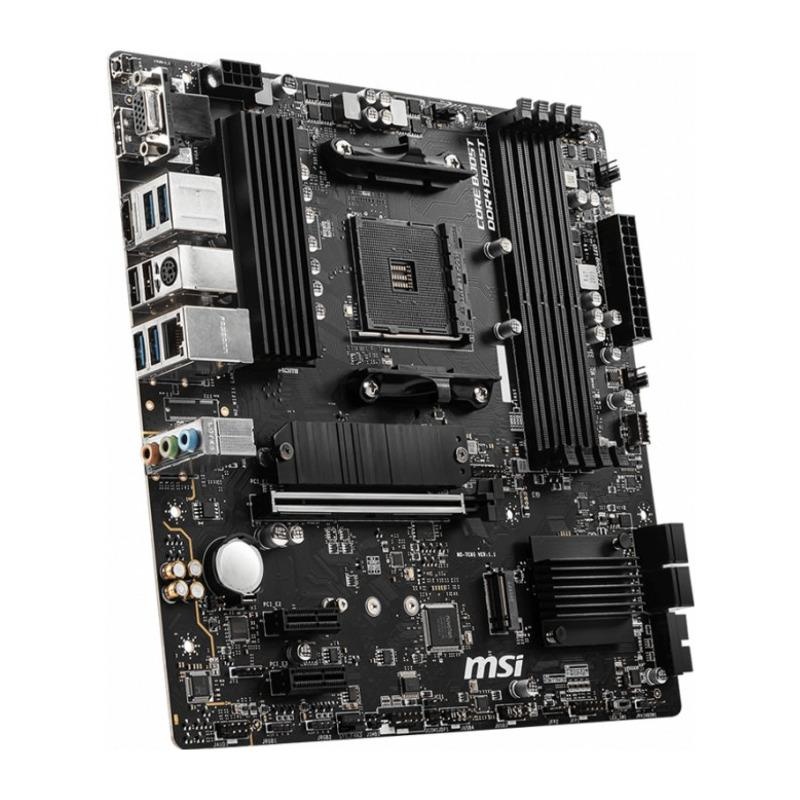

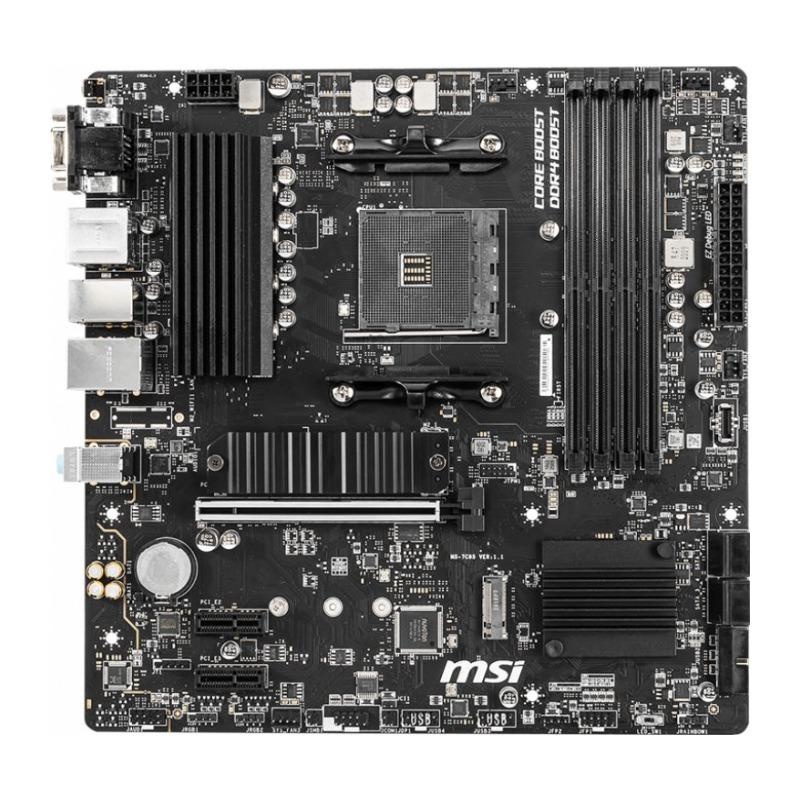

Placa de baza MSI B550M PRO-VDH, Socket AM4, DDR4, Micro-ATX
476 34 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

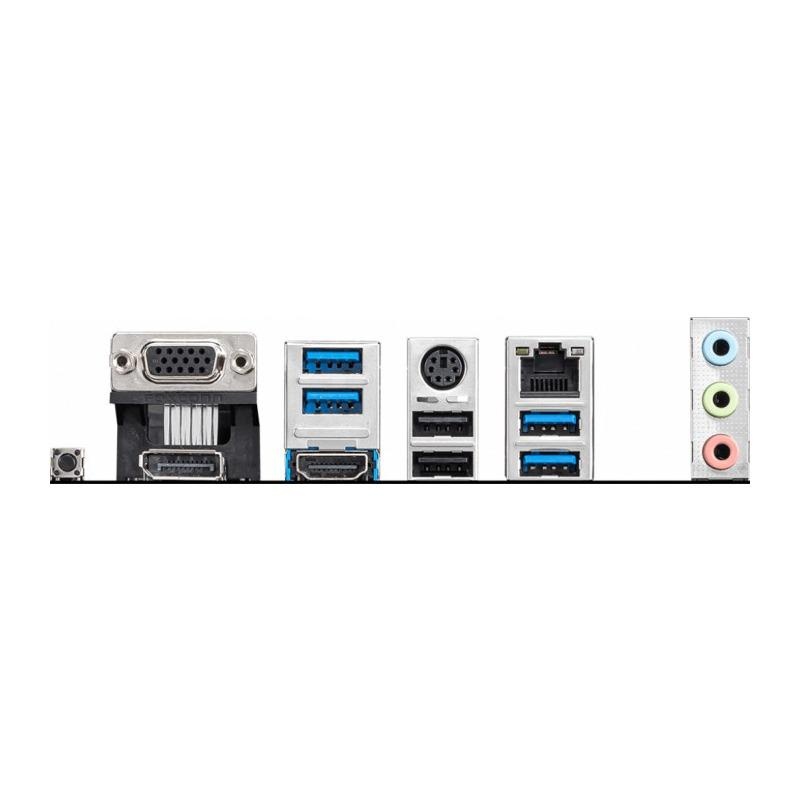

Placa de Baza MSI B550M PRO-VDH AM4 4x DDR4, 1x PCIE x1 2x PCIE x2, 2x M.2, 4x SATA3, 1x VGA 1x HDMI 1x DP, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B550M PRO-VDH
Categorii
Brand
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Clear CMOS jumper
Yes
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Serial port headers
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Supported storage drive types
HDD & SSD
RAID levels
0, 1, 10
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
ECC сompatibility
ECC & Non-ECC
Supported memory types
DDR4-SDRAM
Processor socket
Socket AM4
Maximum number of SMP processors
1
Chassis intrusion connector
Yes
Number of SATA II connectors
0
Drivers included
Yes
PS/2 ports quantity
0
Compatible processor series
AMD Ryzen 3000 Series
Supported memory clock speeds
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
LAN controller
Realtek 8111HN
Harmonized System (HS) code
84733020
Number of Parallel ATA connectors
0
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
No
Depth
24.4 mm
Weight
1 kg
Width
244 mm
Height
65 mm
Component for
PC
Cables included
SATA
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Maximum internal memory
128 GB
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B550
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
1
