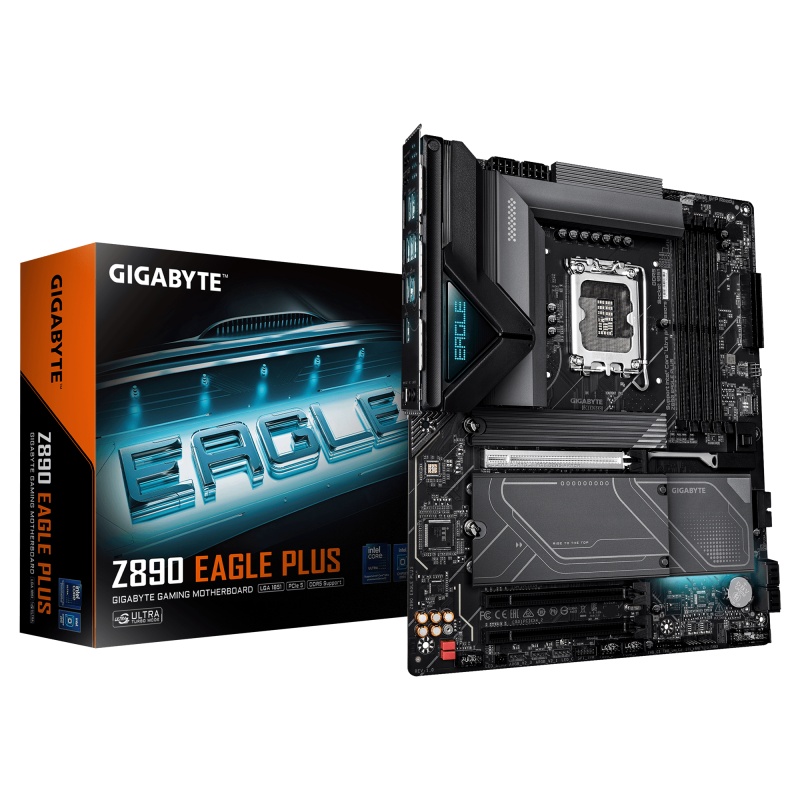

Placa de baza Gigabyte Z890 EAGLE PLUS, LGA 1851, DDR5, ATX
1.168 84 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza GIGABYTE Z890 EAGLE PLUS
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
Z890 EAGLE PLUS
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Screws included
Yes
DVI-D ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
RAID levels
0, 1, 5, 10
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of chassis fan connectors
4
LAN controller
Realtek RTL8125
Number of M.2 (M) slots
4
4th M.2 highest PCI Express generation
4.0
Maximum resolution
3840 x 2160 pixels
Number of EPS power connectors (8-pin)
2
S/PDIF out port
Yes
Number of storage drives supported
8
Thunderbolt headers
2
Digital audio optical out
1
PCI Express x16 (Gen 4.x) slots
2
4th M.2 largest key size
22110
USB4 Gen 2x2 ports quantity
1
BIOS memory size
512 Mbit
Supported memory clock speed (max)
9466 MHz
Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet
Cooling type
Passive
Wi-Fi
No
Depth
244 mm
Weight
2.44 kg
Width
305 mm
Height
35 mm
Component for
PC
Package width
345 mm
Package depth
294 mm
Package height
80 mm
Package weight
2.85 kg
Product colour
Black
Country of origin
China
Windows operating systems supported
Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
Warranty period
3 year(s)
DisplayPort version
2.1
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery capacity
220 mAh
Audio Chip
Realtek ALC1220-VB
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
256 GB
HDMI ports quantity
0
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel Z890
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
Headphone outputs
1
