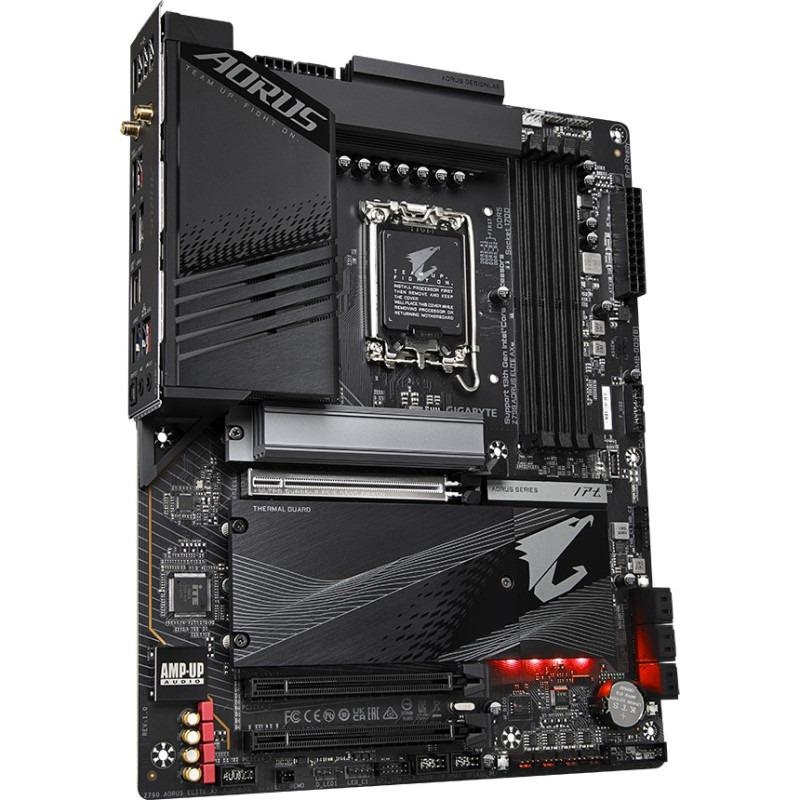

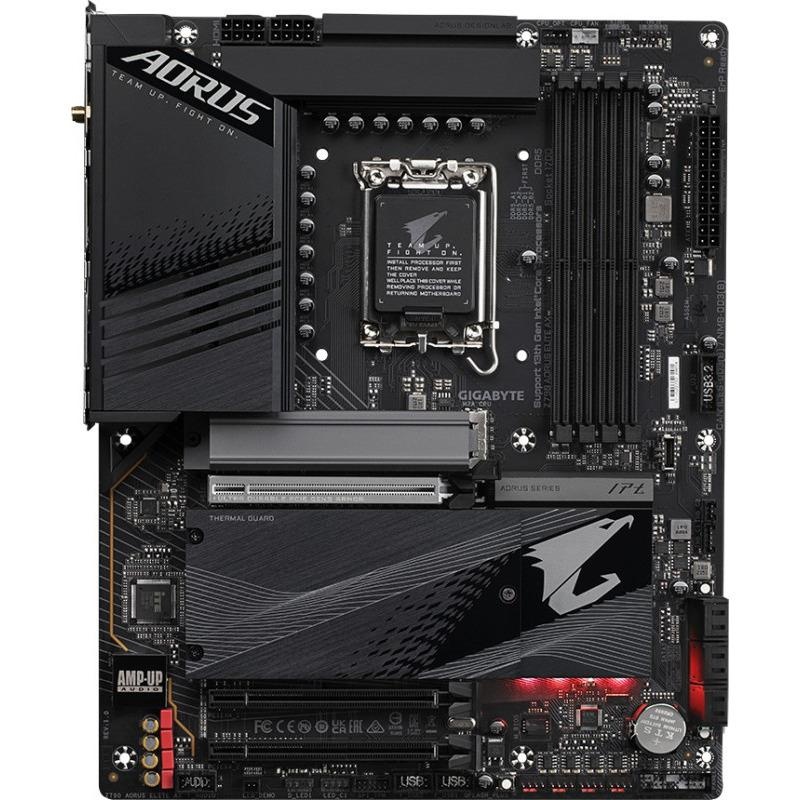

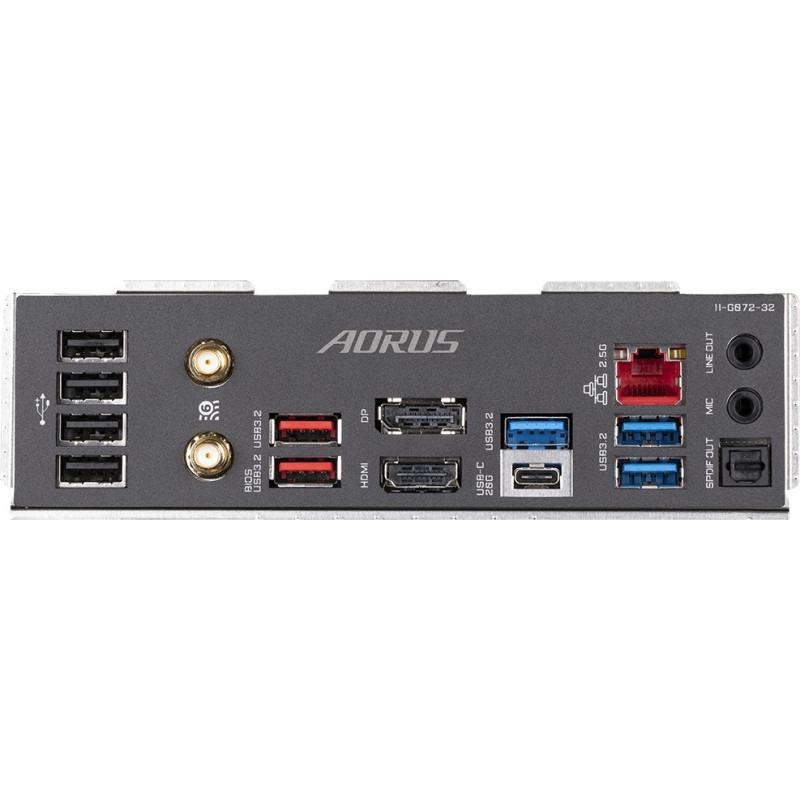

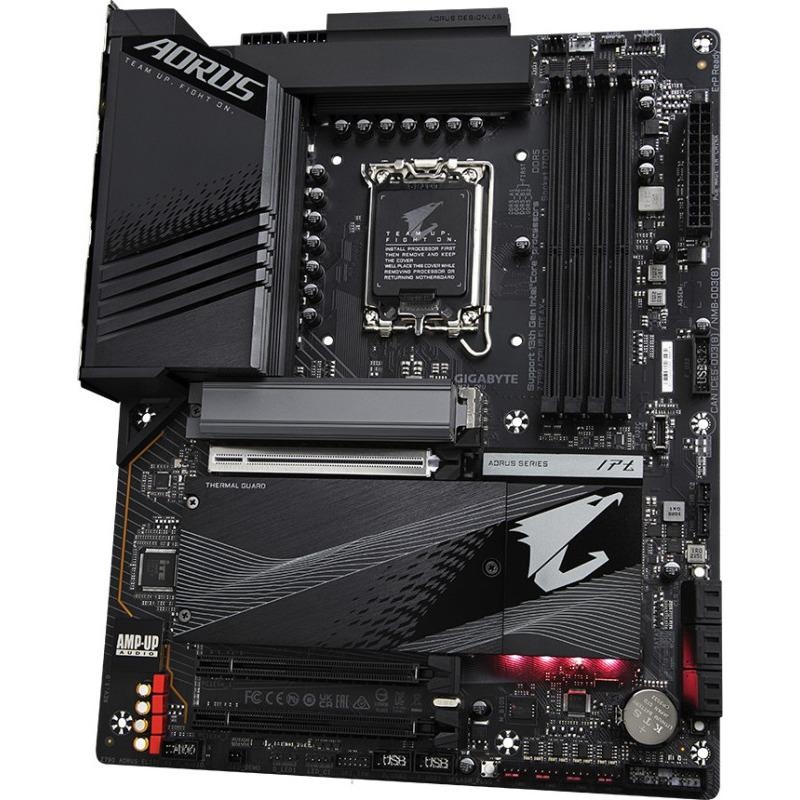

Placa de baza GIGABYTE Z790 AORUS ELITE AX, LGA 1700
1.123 29 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza Gigabyte Z790 AORUS ELITE AX LGA 1700,Z790, PCIe Gen 5, ATX, 4x DIMM slots, DDR5 7600MHz(OC), 4 x M.2 , 6 x SATA, 2.5Gb LAN, WIFI 6E, HDMI, 9x USB, Type-C
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
Z790 AORUS ELITEAX
Categorii
Brand
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speed (max)
7600 MHz
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Microphone in
Yes
Supported storage drive types
HDD & SSD
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
ECC сompatibility
ECC & Non-ECC
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
RAID levels
0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
Number of M.2 (M) slots
4
S/PDIF out port
Yes
Maximum resolution
4096 x 2304 pixels
Number of SATA III connectors
6
Number of HDDs supported
6
PCI Express x16 slots
3
Maximum internal memory supported by processor
192 GB
Thunderbolt headers
2
Total number of SATA connectors
6
Number of storage drives supported
10
Parallel processing technology support
Crossfire
Supported memory clock speeds
7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
Yes
Depth
244 mm
Width
305 mm
Height
35 mm
Component for
PC
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.32 kg
Product colour
Black
Country of origin
China
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cables included
SATA
Bundled software
Norton Internet Security
Warranty period
3 year(s)
DisplayPort version
1.2
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
BLUETOOTH
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
On-board graphics card
No
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
192 GB
WLAN controller model
Intel Wi-Fi 6E AX211
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.0
USB connector type
USB Type-A, USB Type-C
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
Motherboard chipset
Intel Z790
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
HDCP
Yes
Headphone outputs
2
