NOU

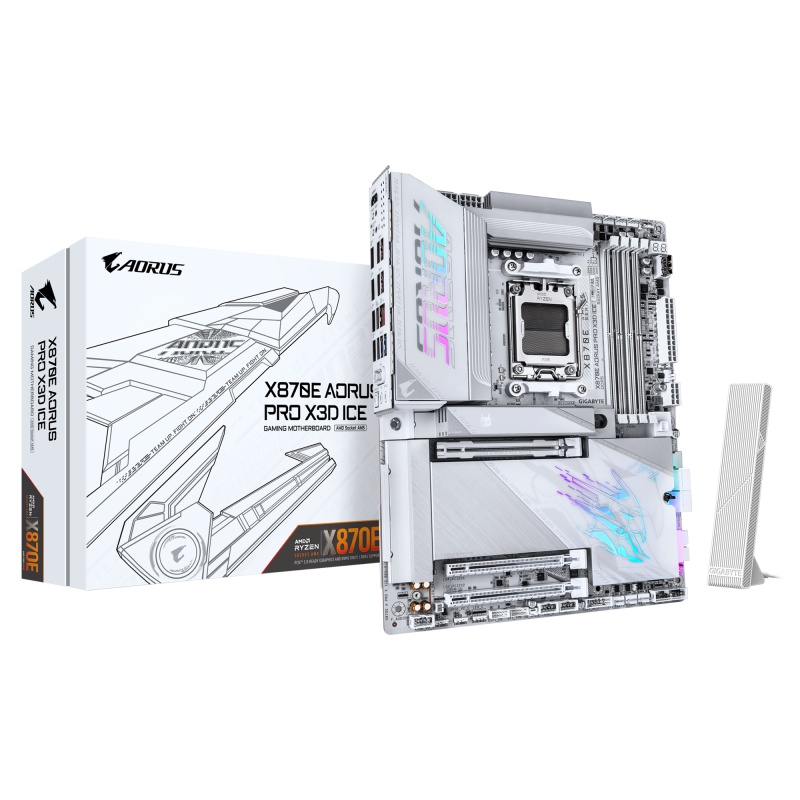

Placa de baza Gigabyte X870E AORUS PRO X3D ICE, Socket AM5, DDR5, ATX
2.084 95 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placă de bază GIGABYTE X870E A PRO X ICE, ATX, socket AM5, chipset AMD X870E, suport DDR5 192 GB, PCIe 5.0 x16, sloturi M.2 PCIe Gen5, WiFi 7 și LAN 2.5 Gbps.
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
X870E A PRO X ICE
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
USB3
4-8
USB 2.0 connectors
2
RAID levels
0, 1, 5, 10
PCI-Ex1
0
Number of M.2 (M) slots
4
4th M.2 highest PCI Express generation
4.0
Number of EPS power connectors (8-pin)
2
USB 3.2 Gen 2x2 connectors
1
S/PDIF out port
Yes
Number of storage drives supported
8
PCI Express x16 (Gen 3.x) slots
1
LAN controller
Realtek RTL8126
USB4 Gen 2x2 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
Maximum resolution
4096 x 2304 pixels
PCI-Ex16
3
Digital audio optical out
1
Number of chassis fan connectors
6
2nd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
Number of water pump connectors
3
BIOS memory size
512 Mbit
PC health monitoring
CPU, Fan, Temperature, Voltage, Water cooling
Supported memory clock speed (max)
9000 MHz
Supported memory clock speeds
9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Number of temperature sensor headers
2
PCI
0
Serial-or-Paralel
Yes/No
Onboard-CPU
No
Cooling type
Passive
Wi-Fi
Yes
Depth
24.4 mm
Weight
3.74 kg
Width
30.5 mm
Height
35 mm
Component for
PC
Package width
340 mm
Package depth
310 mm
Package height
92 mm
Package weight
43 kg
Product colour
White
Country of origin
Taiwan
Windows operating systems supported
Windows 11 x64
Warranty period
3 year(s)
DisplayPort version
1.4
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
BLUETOOTH
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Audio Chip
Realtek ALC1220-VB
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
256 GB
WLAN controller model
Qualcomm QCNCM865
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Motherboard chipset
AMD X870E
RAID support
Yes
VGA (D-Sub) ports quantity
0
HDCP
Yes
Headphone outputs
1
