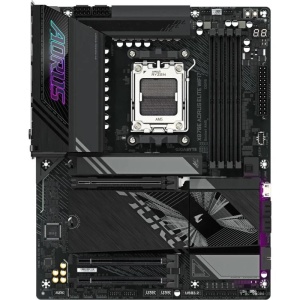

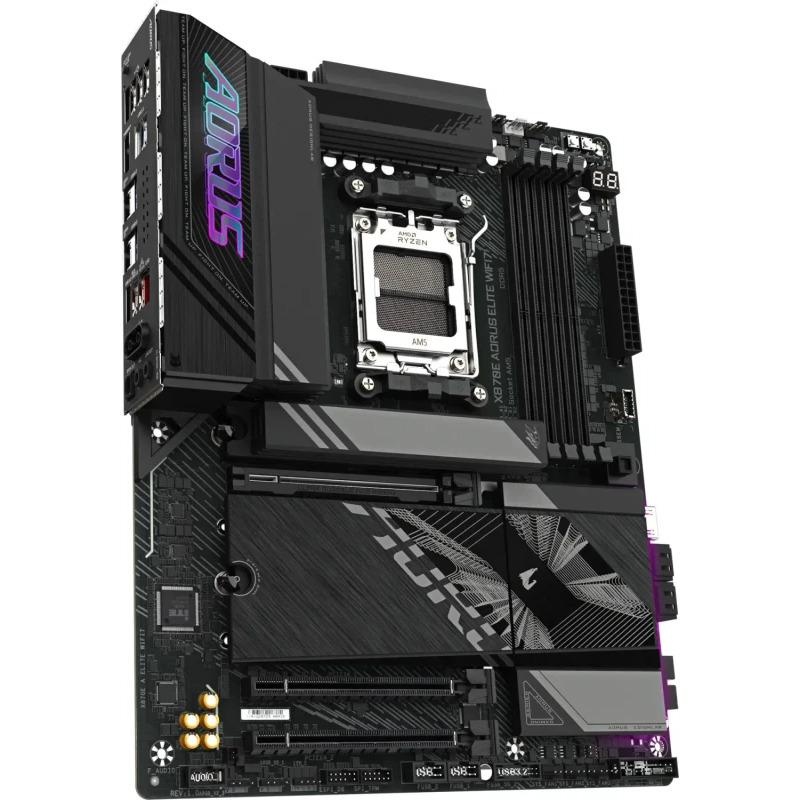

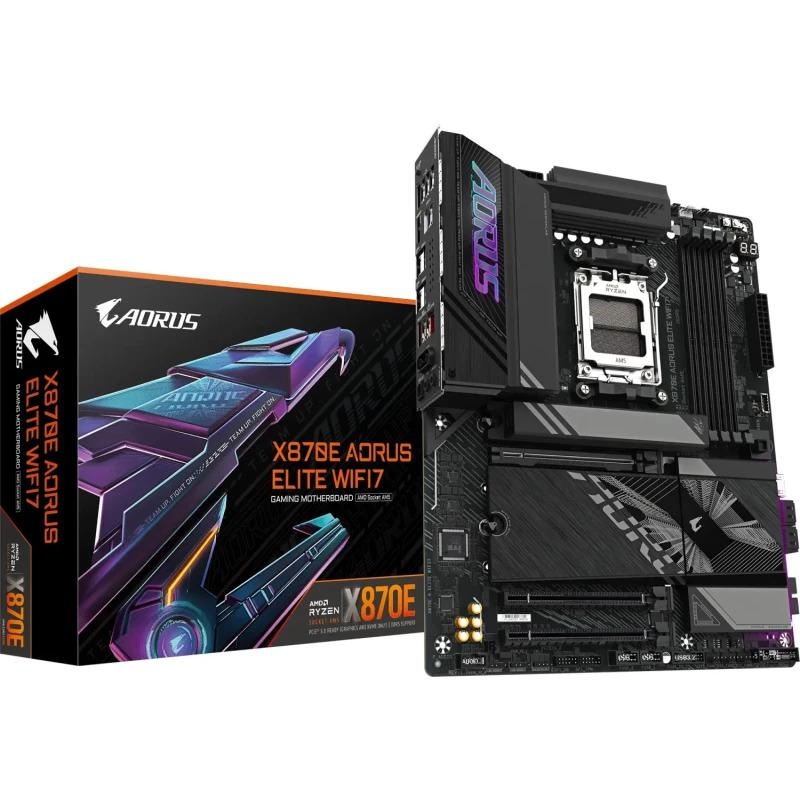

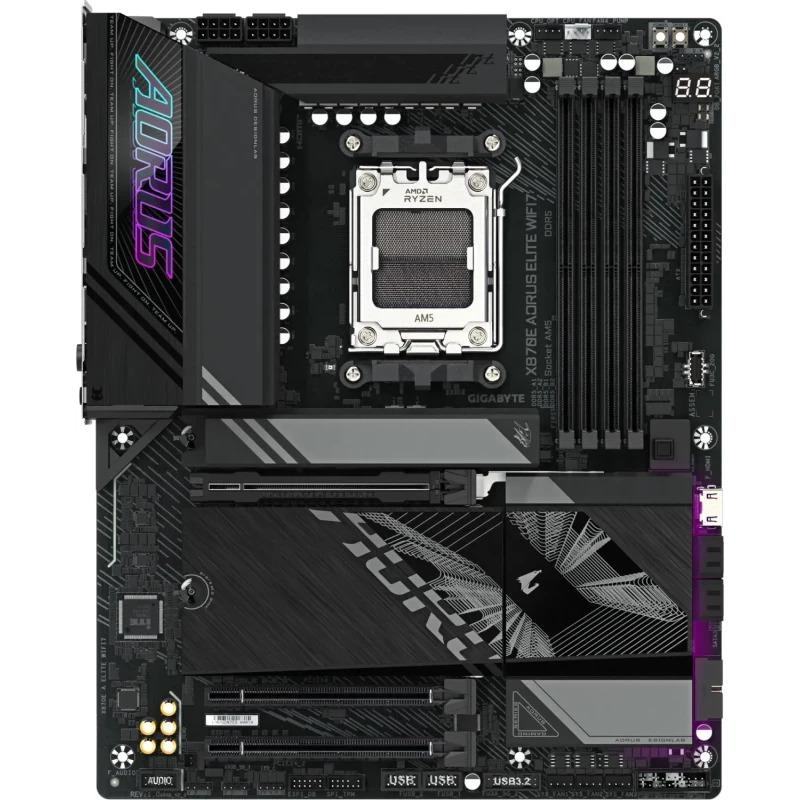

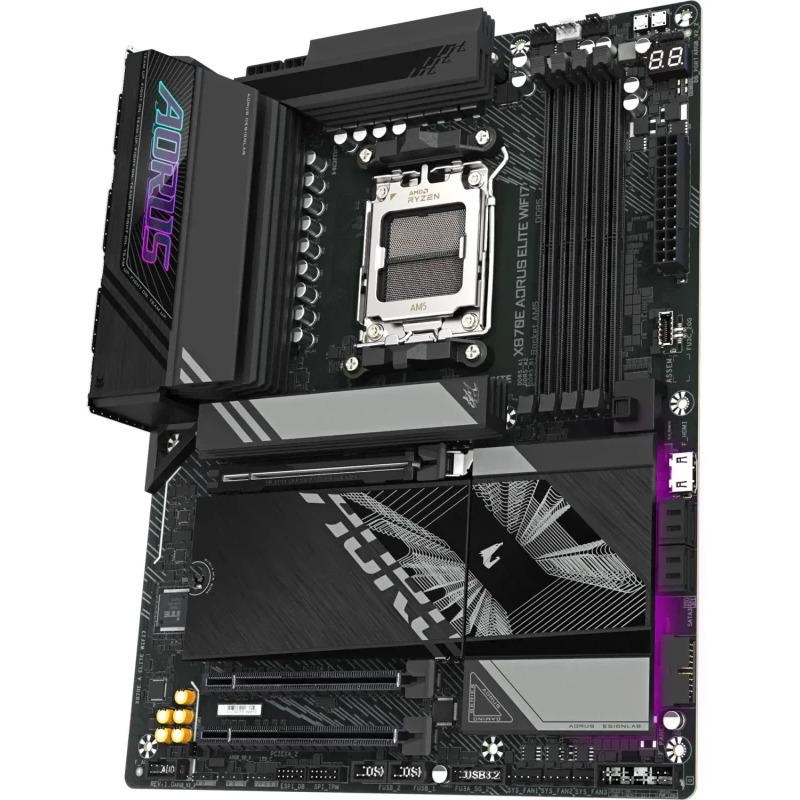

Placa de baza Gigabyte X870E AORUS ELITE WIFI7, Socket AM5, DDR5, ATX
1.705 99 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE X870E AORUS ELITE WIFI7 AM5, 4x DDR5, 1X HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 4x M.2, 4x SATA 6GB/s, ATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
X870E A ELITE WIFI7
Categorii
Brand
Product colour
Black
Wi-FI
Yes
Ethernet LAN
Yes
Bluetooth
Yes
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
0
Batteries included
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
Wi-Fi standards
Wi-Fi 7 (802.11be)
Microphone in
Yes
Processor manufacturer
AMD
Memory channels
Dual-channel
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
WLAN controller model
MediaTek MT7925
USB4 Gen 3x2 ports quantity
0
USB 2.0 ports quantity
4
Headphone outputs
1
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
PCI Express x16 (Gen 5.x) slots
1
Audio Chip
Realtek ALC1220
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Country of origin
China
Audio output channels
7.1 channels
PCI Express x16 (Gen 3.x) slots
1
Supported memory types
DDR5-SDRAM
Width
30.5 mm
Maximum internal memory
256 GB
Number of SATA III connectors
4
Products per shipping (inner) case
1 pc(s)
Warranty period
3 year(s)
DirectX version
12.0
Parallel processing technology support
Not supported
Lithium weight per battery
0.07 g
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Motherboard chipset family
AMD
Component for
PC
On-board graphics card
No
USB 2.0 connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA II connectors
0
Number of SATA connectors
0
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Memory slots type
DIMM
RAID levels
0, 1, 10
RAID support
Yes
Height
35 mm
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 largest key size
22110
Number of M.2 (M) slots
4
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
Motherboard form factor
ATX
Windows operating systems supported
Windows 11 x64
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
Front panel connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
4
Number of EPS power connectors (8-pin)
2
TPM connector
Yes
Number of water pump connectors
2
USB 3.2 Gen 2x2 connectors
1
Supported memory clock speed (max)
8200 MHz
ECC сompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Number of memory slots
4
Unbuffered memory
Yes
Antenna included
Yes
Screws included
Yes
Package height
80 mm
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
S/PDIF out port
Yes
WiFi-AP antenna jack
2
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Realtek RTL8125
Number of HDDs supported
4
1st M.2 largest key size
25110
Package depth
294 mm
MB-Format
ATX
PCI-Ex1
0
RAM-Slots
4
MB-Socket
AM5
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
Onboard-CPU
No
PCI-Ex16
3
2nd M.2 highest PCI Express generation
5.0
Number of storage drives supported
8
Motherboard chipset
AMD X870E
USB4 Gen 2x2 ports quantity
2
BIOS memory size
256 Mbit
USB 3.2 Gen 2x2 Type-C ports quantity
0
PC health monitoring
CPU, Fan, Temperature, Voltage
mSATA ports quantity
0
Maximum internal memory supported by processor
256 GB
Package weight
2.74 kg
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Package width
34.5 mm
Depth
24.4 mm
Weight
2.4 kg
3rd M.2 highest PCI Express generation
5.0
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
PCI Express x4 slots
2
PCI Express x1 (Gen 3.x) slots
0
PCI Express x1 (Gen 4.x) slots
0
PCI Express x4 (Gen 4.x) slots
0
PCI Express x4 (Gen 3.x) slots
0
PS/2 ports quantity
0
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB
