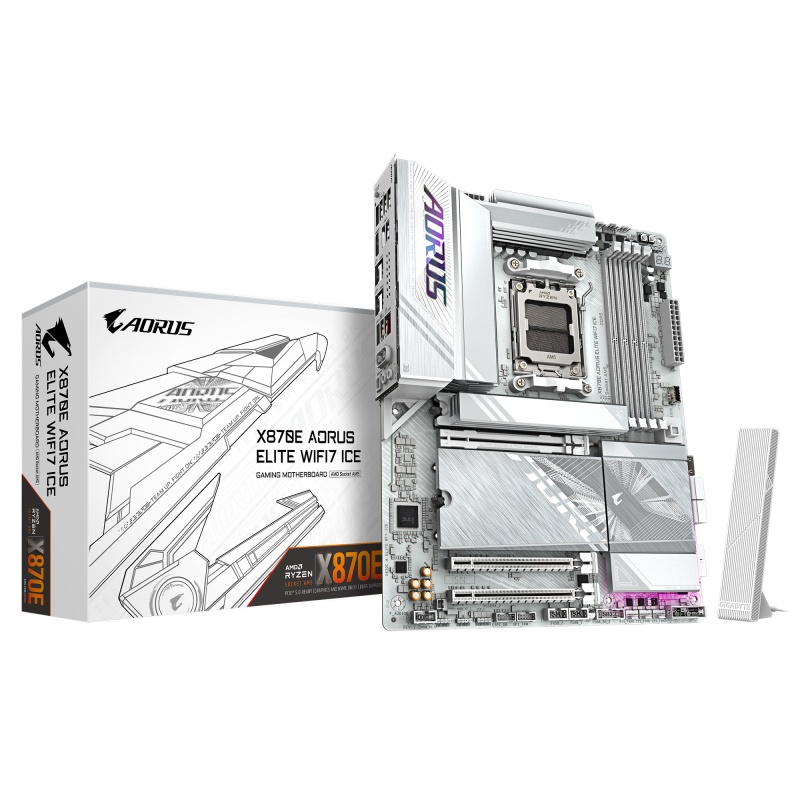

Placa de baza Gigabyte X870E AORUS ELITE WIFI7 ICE, Socket AM5, DDR5, ATX
1.629 79 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE X870E AORUS ELITE WIFI7 ICE AM5, 4x DDR5, 2x USB4 1x HDMI 1x front HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 4x M.2, 4x SATA 6GB/s, ATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
X870E A ELITE WF7 ICE
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 largest key size
22110
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
USB3
4-8
USB 2.0 connectors
2
RAID levels
0, 1, 5, 10
PCI-Ex1
0
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
LAN controller
Realtek RTL8125
Supported memory clock speed (max)
8200 MHz
Number of M.2 (M) slots
4
4th M.2 highest PCI Express generation
4.0
Number of EPS power connectors (8-pin)
2
USB 3.2 Gen 2x2 connectors
1
S/PDIF out port
Yes
Number of storage drives supported
8
PCI Express x16 (Gen 3.x) slots
1
USB4 Gen 2x2 ports quantity
2
PCI-Ex16
3
Digital audio optical out
1
2nd M.2 highest PCI Express generation
5.0
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
Supported memory clock speeds
8200,8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Wi-Fi
Yes
Depth
24.4 mm
Weight
2.64 kg
Width
30.5 mm
Height
35 mm
Component for
PC
Package width
34.5 mm
Package depth
294 mm
Package height
80 mm
Package weight
2.64 kg
Product colour
White
Windows operating systems supported
Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty period
3 year(s)
DisplayPort version
1.4
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
BLUETOOTH
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
On-board graphics card
No
Audio Chip
Realtek ALC1220-VB
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
256 GB
WLAN controller model
Realtek RTL8922AE
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, PCI Express 5.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD X870E
RAID support
Yes
VGA (D-Sub) ports quantity
0
HDCP
Yes
Headphone outputs
1
