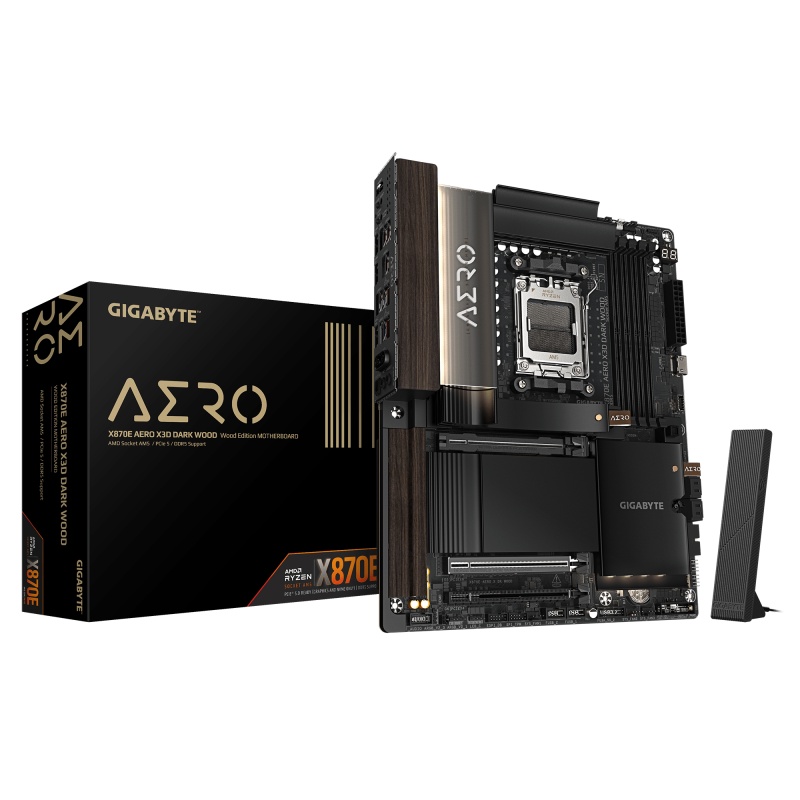

Placa de baza Gigabyte X870E AERO X3D DARK WOOD, Socket AM5, DDR5, ATX
2.253 39 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza GIGABYTE X870E AERO X DK WOOD
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
X870E AERO X DK WOOD
Categorii
Brand
PCI Express x16 (Gen 4.x) slots
1
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
USB 2.0 connectors
2
RAID levels
0, 1, 5, 10
1st M.2 largest key size
2580
Number of M.2 (M) slots
4
4th M.2 highest PCI Express generation
4.0
Number of EPS power connectors (8-pin)
2
USB 3.2 Gen 2x2 connectors
1
S/PDIF out port
Yes
Number of storage drives supported
8
LAN controller
Realtek RTL8126
USB4 Gen 2x2 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
PCI Express x16 (Gen 5.x) slots
2
Digital audio optical out
1
Number of chassis fan connectors
6
2nd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
Number of water pump connectors
3
BIOS memory size
512 Mbit
Supported memory clock speed (max)
9000 MHz
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Number of temperature sensor headers
2
Supported memory clock speeds
9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Cooling type
Passive
Wi-Fi
Yes
Depth
244 mm
Weight
3.17 kg
Width
305 mm
Height
35 mm
Component for
PC
Package width
341 mm
Package depth
306 mm
Package height
89 mm
Package weight
3.67 kg
Product colour
Black
Windows operating systems supported
Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
Warranty period
3 year(s)
DisplayPort version
1.4
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
BLUETOOTH
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Battery capacity
220 mAh
Audio Chip
Realtek ALC1220-VB
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
256 GB
WLAN controller model
MediaTek MT7927
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, PCI Express 5.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
Motherboard chipset
AMD X870E
RAID support
Yes
VGA (D-Sub) ports quantity
0
HDCP version
2.3
HDCP
Yes
Headphone outputs
1
