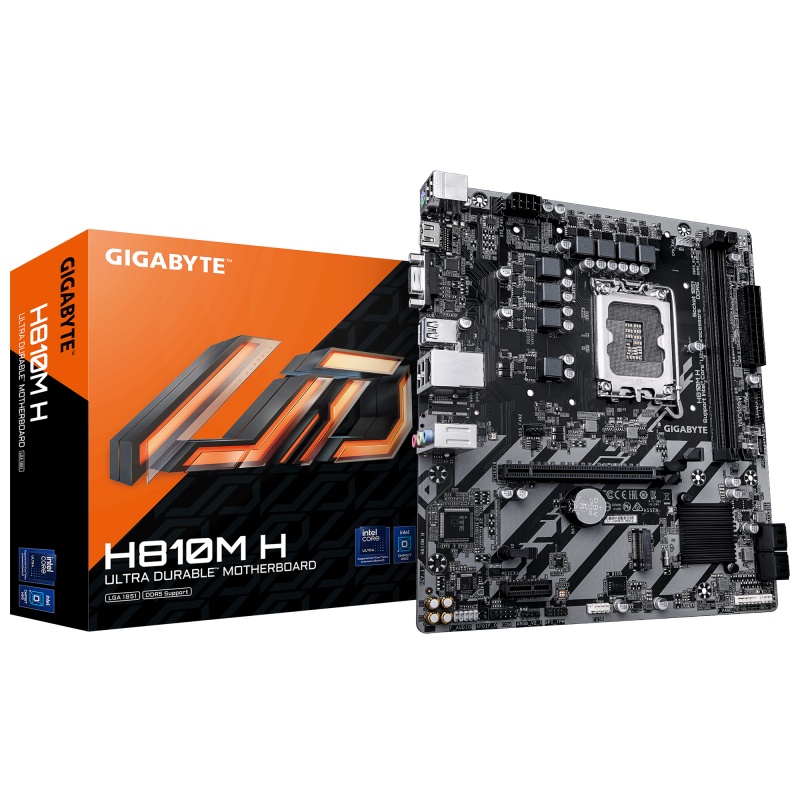

Placa de baza Gigabyte H810M H, Socket 1851, DDR5, Micro-ATX
433 59 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE H810M H LGA1851, 2x DDR5, 1x HDMI 1x D-Sub, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
H810M H
Categorii
Brand
Ethernet LAN
Yes
HDCP
Yes
Ethernet LAN (RJ-45) ports
1
Batteries included
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
Processor manufacturer
Intel
Microphone in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Memory channels
Dual-channel
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Maximum internal memory
128 GB
Processor socket
LGA 1851 (Socket V1)
Line-in
Yes
Audio output channels
7.1 channels
Wi-FI
No
Number of memory slots
2
Supported memory types
DDR5-SDRAM
Ethernet interface type
Gigabit Ethernet
Depth
215 mm
Number of SATA III connectors
4
PCI Express x1 (Gen 3.x) slots
1
Weight
860 g
Products per shipping (inner) case
1 pc(s)
Warranty period
3 year(s)
DirectX version
12.0
DVI-D ports quantity
0
Parallel processing technology support
Not supported
Lithium weight per battery
0.07 g
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Number of M.2 (M) slots
1
Motherboard form factor
micro ATX
Component for
PC
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
RGB LED pin header
Yes
ECC сompatibility
ECC & Non-ECC
Memory slots type
DIMM
Package width
265 mm
PS/2 ports quantity
1
RAID support
Yes
Height
35 mm
Width
244 mm
Power source type
ATX
Cooling type
Passive
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Maximum resolution
4096 x 2160 pixels
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
Front panel connector
Yes
TPM connector
Yes
Maximum internal memory per slot
64 GB
Unbuffered memory
Yes
Screws included
Yes
Supported storage drive types
HDD & SSD
1st M.2 highest PCI Express generation
4.0
USB 2.0 connectors
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of HDDs supported
4
1st M.2 largest key size
2280
Product colour
Dark brown
Audio Chip
Realtek ALC897
Number of storage drives supported
5
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex16
1
Onboard-CPU
No
PCI-Ex1
1
Motherboard chipset family
Intel
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
RAID levels
0, 1, 5, 10
MB-Format
micro-ATX
MB-Socket
LGA1851
BIOS memory size
256 Mbit
Windows operating systems supported
Windows 10 x64, Windows 11 x64
LAN controller
Realtek RTL8111H
Package depth
265 mm
Package height
54 mm
Number of CPU fan connectors
1
Motherboard chipset
Intel H810
Number of RGB LED pin headers
2
Supported memory clock speeds
5600,6400 MHz
Supported memory clock speed (max)
6400 MHz
USB 2.0 ports quantity
5
VGA (D-Sub) ports quantity
1
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
S/PDIF out connector
Yes
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
RAM-Slots
2
Package weight
860 g
