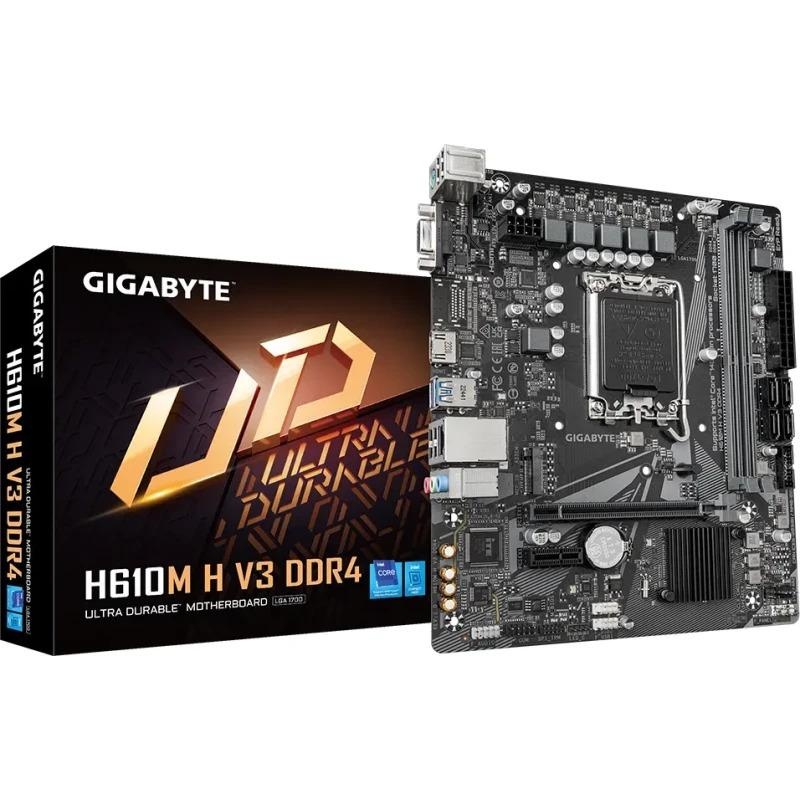

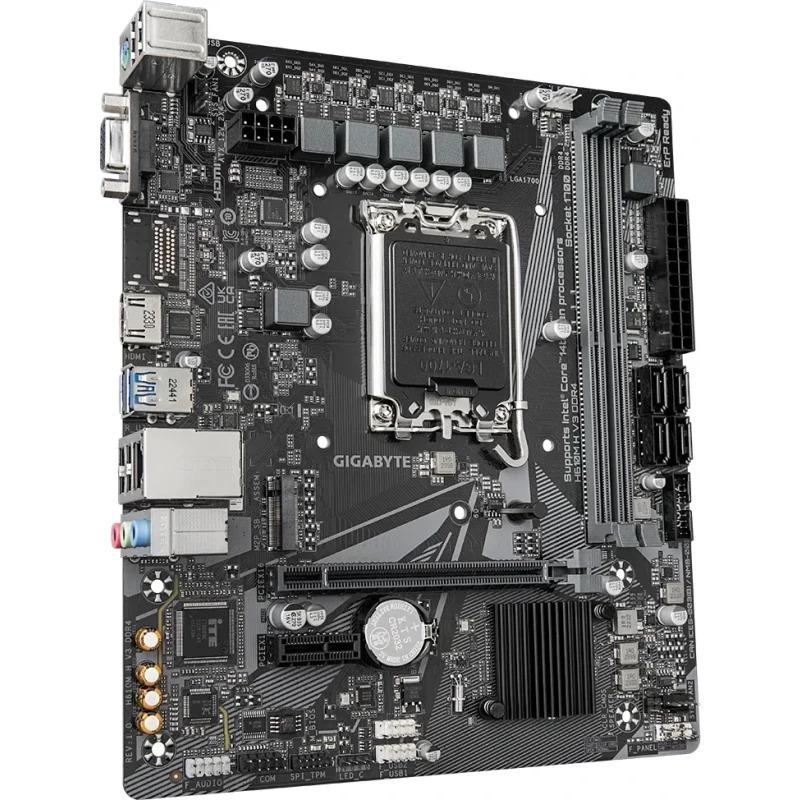

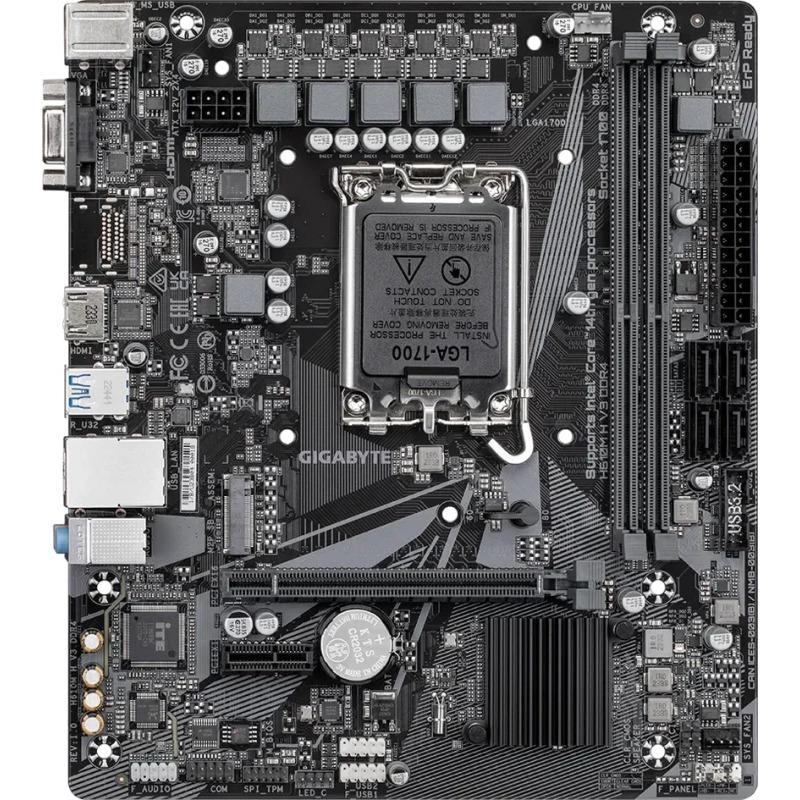

Placa de baza Gigabyte H610M H V3, LGA 1700, DDR4, Micro-ATX
319 92 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE H610M H V3 LGA1700, 2x DDR4, 1x D-Sub 1x HDMI, 1x PCIE x16 1x PCIE x1, 1x M.2, 4x SATA 6GB/s, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
H610M H V3 DDR4
Categorii
Brand
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Serial port headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
Gigabit Ethernet
Microphone in
Yes
Supported storage drive types
HDD & SSD
USB3
4-8
PCI-Ex1
1
BIOS memory size
128 Mbit
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
MB-Socket
1700
MB-Format
micro-ATX
RAM-Slots
2
PCI-Ex16
1
Number of M.2 (M) slots
1
PS/2 ports quantity
1
Number of storage drives supported
5
Supported memory types
DDR4-SDRAM
Supported memory clock speed (max)
3200 MHz
Maximum resolution
4096 x 2304 pixels
DVI-D ports quantity
1
PCI Express x16 slots
1
PCI Express x1 slots
1
Graphics card family
Intel
Supported memory clock speeds
3200, 3000, 2933, 2666, 2400, 2133 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Number of HDDs supported
1
Graphics card
HD Graphics
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Active
Wi-Fi
No
Depth
215 mm
Width
230 mm
Height
35 mm
Component for
PC
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
684 g
Product colour
Black
Country of origin
China
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cables included
SATA
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Audio Chip
Realtek ALC897
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
64 GB
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB connector type
USB Type-A
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel H610 Express
DisplayPorts quantity
2
VGA (D-Sub) ports quantity
1
HDCP
Yes
Headphone outputs
3
