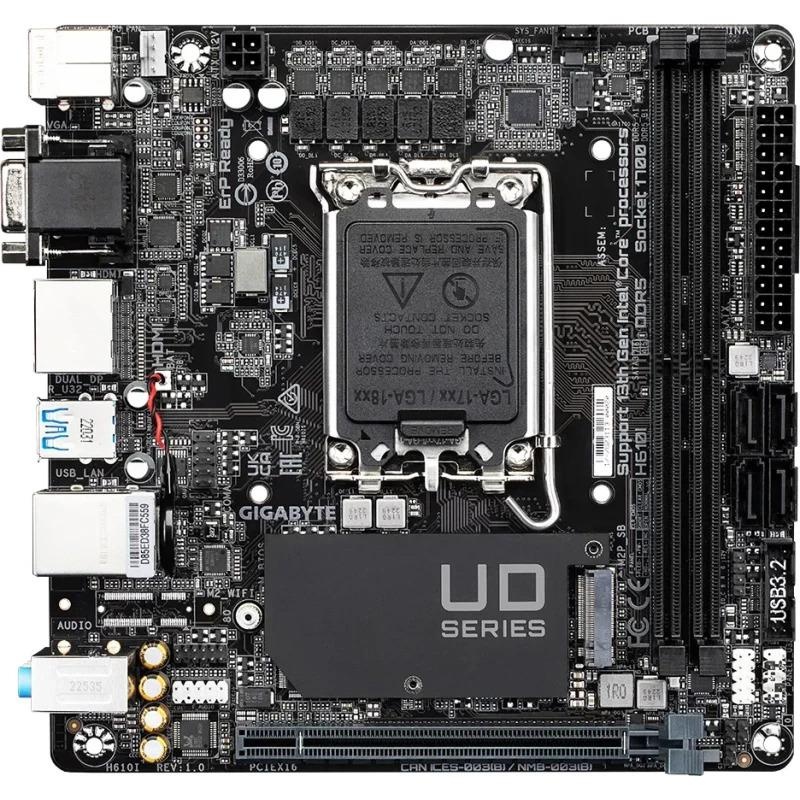

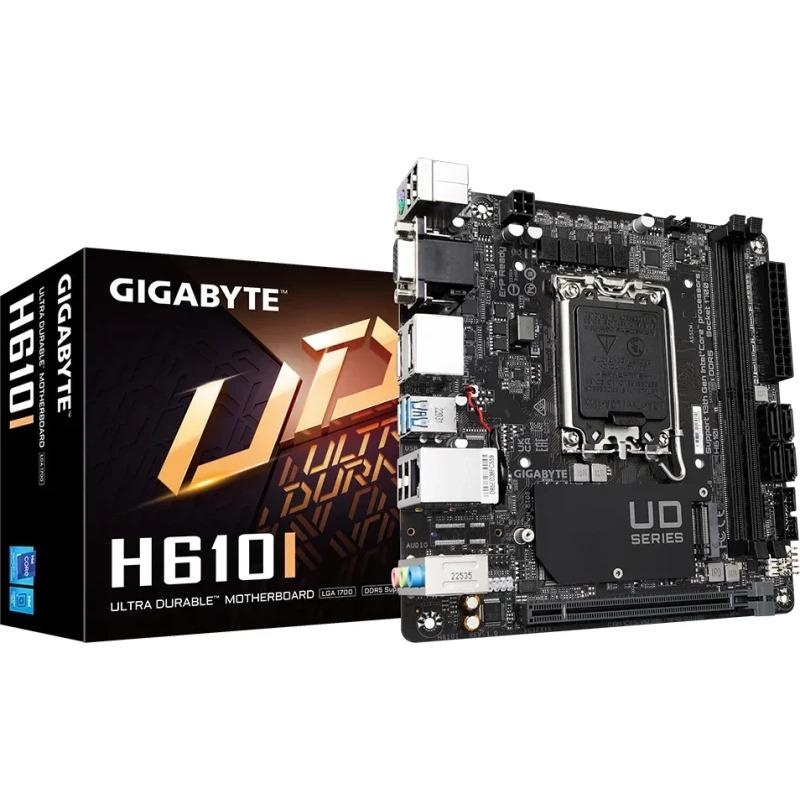

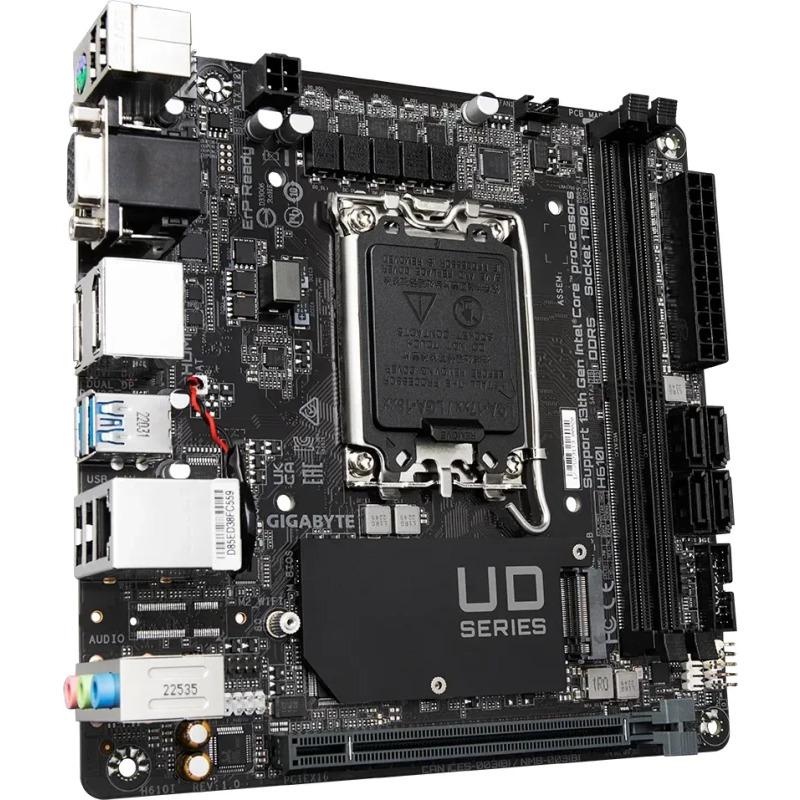

Placa de bază Gigabyte H610I LGA1700
497 81 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

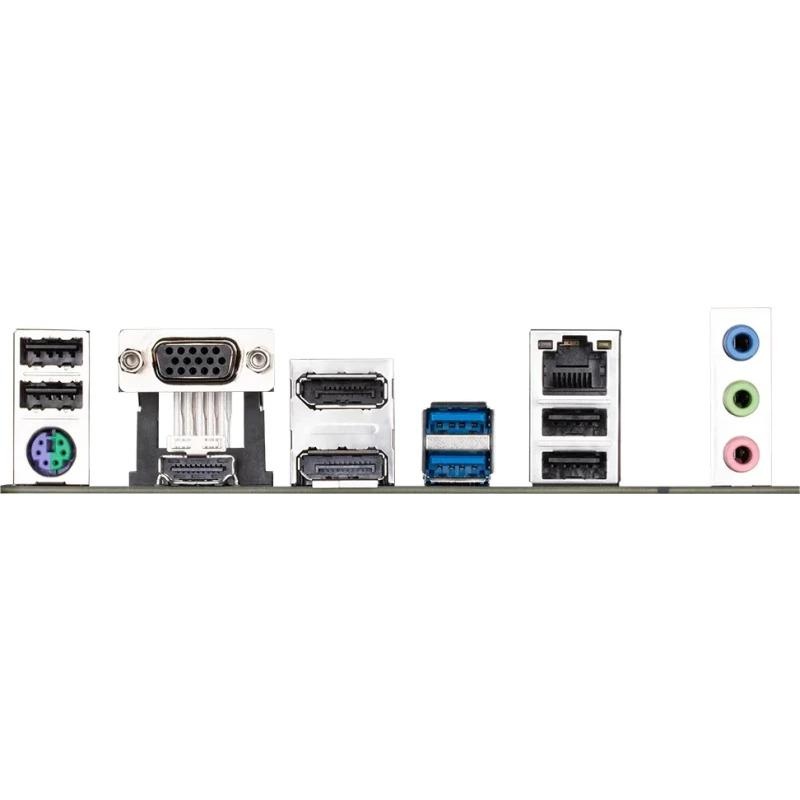

Placa de Baza GIGABYTE H610I LGA1700, 2x DDR5, 1x D-Sub 1x HDMI 2x DP, 1x PCIE X16, 1x M.2, 4x SATA 6GB/s, Mini-ITX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
H610I
Categorii
Brand
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Serial port headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Microphone in
Yes
Supported storage drive types
HDD & SSD
Motherboard chipset family
Intel
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of M.2 (M) slots
1
USB 2.0 connectors
1
PS/2 ports quantity
1
Number of storage drives supported
5
Chassis intrusion connector
Yes
PC health monitoring
Fan, Temperature, Voltage
Maximum resolution
4096 x 2304 pixels
Supported memory clock speed (max)
5600 MHz
PCI Express x16 slots
1
Motherboard form factor
mini ITX
Graphics card family
Intel
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Number of HDDs supported
1
Maximum internal memory supported by processor
64 GB
Supported memory clock speeds
5600, 5200, 4800, 4400 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Active
Wi-Fi
No
Depth
170 mm
Width
170 mm
Height
35 mm
Component for
PC
Package width
222 mm
Package depth
180 mm
Package height
65 mm
Package weight
590 g
Country of origin
China
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cables included
SATA
Bundled software
Norton Internet Security (OEM version); LAN bandwidth management software
DisplayPort version
1.2
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Audio Chip
Realtek ALC897
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
64 GB
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.0
USB connector type
USB Type-A
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel H610 Express
DisplayPorts quantity
2
VGA (D-Sub) ports quantity
1
HDCP
Yes
Headphone outputs
3
