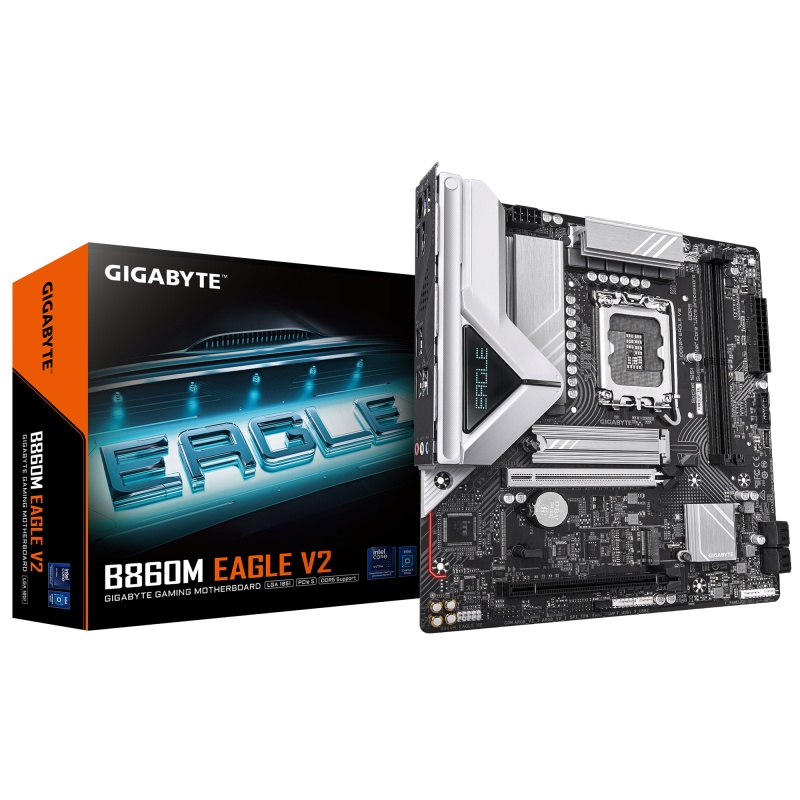

Placa de baza Gigabyte B860M EAGLE V2, Socket 1851, DDR5, Micro-ATX
670 31 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B860M EAGLE V2
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Screws included
Yes
DVI-D ports quantity
0
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
USB3
4-8
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
Number of chassis fan connectors
2
S/PDIF out connector
Yes
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
MB-Format
micro-ATX
RAM-Slots
2
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
PS/2 ports quantity
1
MB-Socket
LGA1851
PCI-Ex1
0
Ethernet interface type
2.5 Gigabit Ethernet
PCI-Ex16
2
Format
Micro-ATX (mATX)
Tip Memorie
DDR5
Number of RGB LED pin headers
3
LAN controller
Realtek RTL8125
Supported memory clock speed (max)
9066 MHz
Supported memory clock speeds
9066,8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,5600 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Gaming
Nu
Wi-Fi
No
Depth
225 mm
Weight
1.01 kg
Width
244 mm
Height
35 mm
Component for
PC
Package width
265 mm
Package depth
265 mm
Package height
54 mm
Package weight
1.2 kg
Product colour
Dark brown
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty period
3 year(s)
DisplayPort version
2.1
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
BLUETOOTH
Nu
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Audio Chip
Realtek ALC897
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
128 GB
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B860
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
Thunderbolt
Nu
HDCP
Yes
Headphone outputs
1
HDMI
Da
