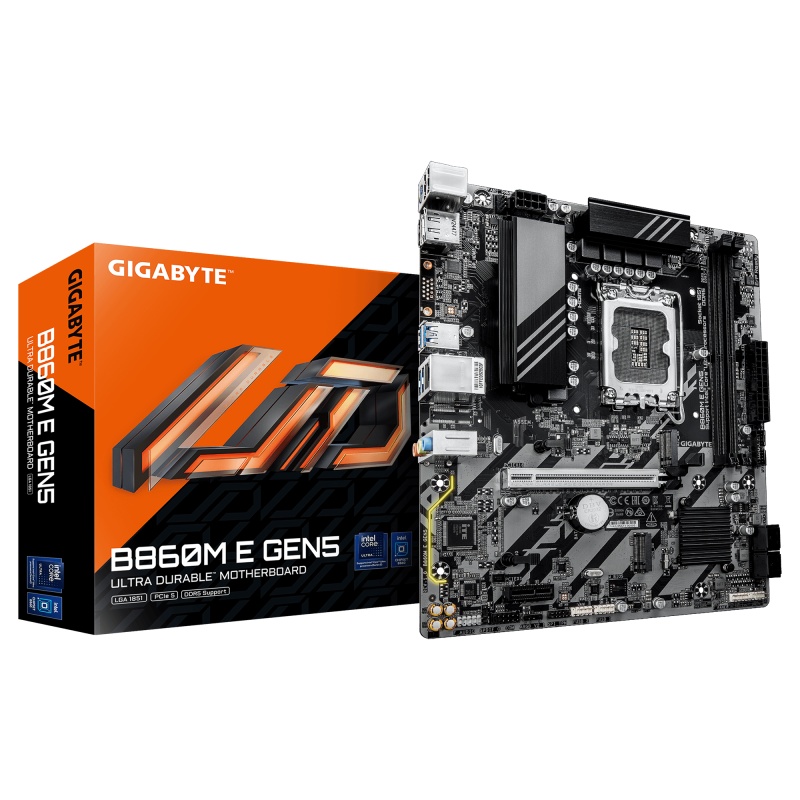

Placa de baza Gigabyte B860M E GEN5, Socket 1851, DDR5, Micro-ATX
531 99 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza Gigabyte B860M E GEN5
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B860M E GEN5
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
PCI Express x1 (Gen 3.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Screws included
Yes
DVI-D ports quantity
0
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
S/PDIF out connector
Yes
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
Number of RGB LED pin headers
2
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
PS/2 ports quantity
1
Supported memory clock speed (max)
8800 MHz
Number of chassis fan connectors
1
Cooling type
Passive
Wi-Fi
No
Depth
215 mm
Weight
910 g
Width
244 mm
Height
35 mm
Component for
PC
Package width
265 mm
Package depth
265 mm
Package height
54 mm
Package weight
988 g
Product colour
Dark brown
Country of origin
China
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
NortonInternet Security (OEM version)
Warranty period
3 year(s)
DisplayPort version
2.1
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery capacity
220 mAh
Audio Chip
Realtek ALC897
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
128 GB
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B860
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
HDCP version
2.3
HDCP
Yes
Headphone outputs
1
