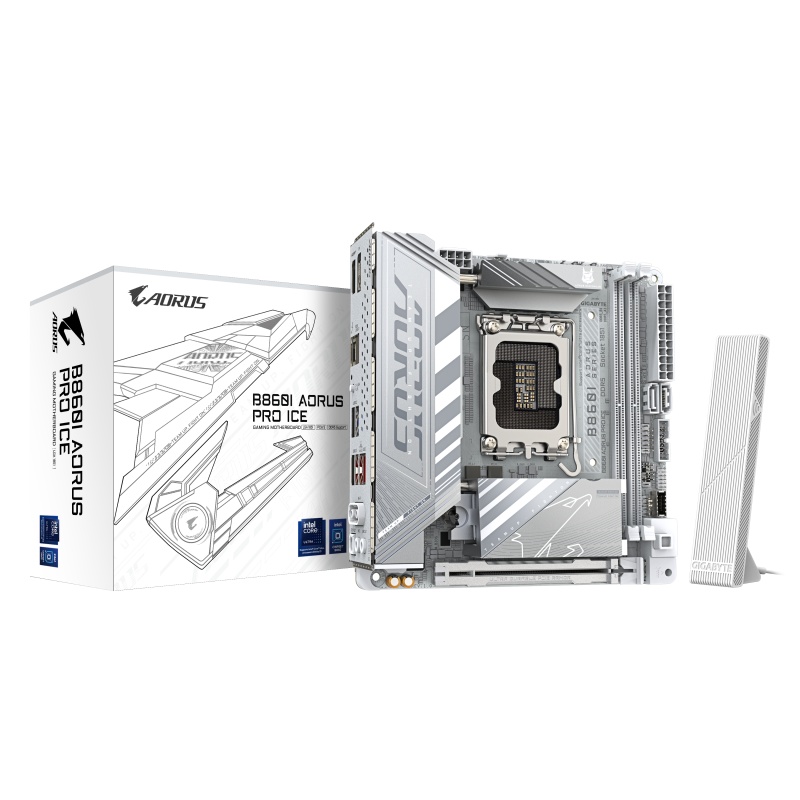

Placa de bază Gigabyte B860I AORUS PRO ICE LGA1851
1.066 00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B860I AORUS PRO ICE LGA1851, 2x DDR5, 1x Intel Thunderbolt 1x DP 1x HDMI, 1x PCIE 5.0 x16, 2x M.2, 2x SATA 6GB/s, mini- ITX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B860I AORUS PRO ICE
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
Number of SATA III connectors
2
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
Number of EPS power connectors (8-pin)
1
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard chipset family
Intel
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
RAID levels
0, 1, 5, 10
Number of RGB LED pin headers
2
USB 2.0 connectors
1
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Number of water pump connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
Tip Memorie
DDR5
LAN controller
Realtek RTL8125
S/PDIF out port
Yes
Maximum resolution
5120 x 2880 pixels
Number of storage drives supported
4
Number of HDDs supported
2
Number of chassis fan connectors
1
Motherboard form factor
mini ITX
Number of displays supported
3
Digital audio optical out
1
Compatible processor series
Intel Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported memory clock speeds
5600,6400,9200 MHz
Supported memory clock speed (max)
9200 MHz
Thunderbolt ports quantity
1
Format
Mini-ITX
Cooling type
Passive
Gaming
Nu
Wi-Fi
Yes
Depth
170 mm
Weight
1.3 kg
Width
170 mm
Height
35 mm
Component for
PC
Package width
235 mm
Package depth
227 mm
Package height
95 mm
Product colour
White
Country of origin
China
Windows operating systems supported
Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty period
3 year(s)
DisplayPort version
2.1
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Audio Chip
Realtek ALC897
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
128 GB
WLAN controller model
MediaTek MT7925
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B860
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
Thunderbolt
Da
HDCP
Yes
Headphone outputs
1
HDMI
Da
