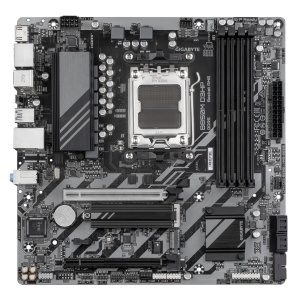

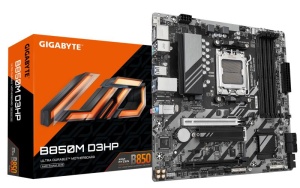

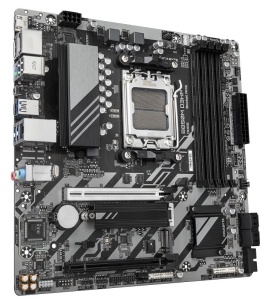

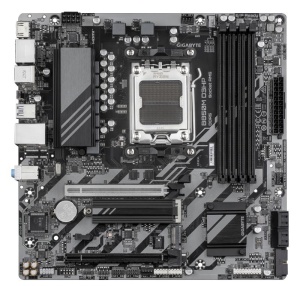

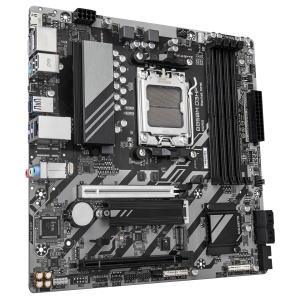

Placa de Baza GIGABYTE B850M D3HP AM5
681 31 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B850M D3HP AM5, 4x DDR5, 1x HDMI 2x DP, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B850M D3HP
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
3
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Ethernet interface type
Gigabit Ethernet
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID levels
0, 1, 10
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of storage drives supported
6
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
1st M.2 largest key size
2580
Supported memory clock speed (max)
8200 MHz
PCI Express x16 (Gen 3.x) slots
1
Peripheral (Molex) power connectors (4-pin)
1
Supported memory clock speeds
4400,4800,5200,8200 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
No
Depth
244 mm
Weight
1.3 kg
Width
24.4 mm
Height
35 mm
Component for
PC
Product colour
Brown
Country of origin
China
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Audio Chip
Realtek ALC897
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
256 GB
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B850
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
HDCP
Yes
Headphone outputs
1
