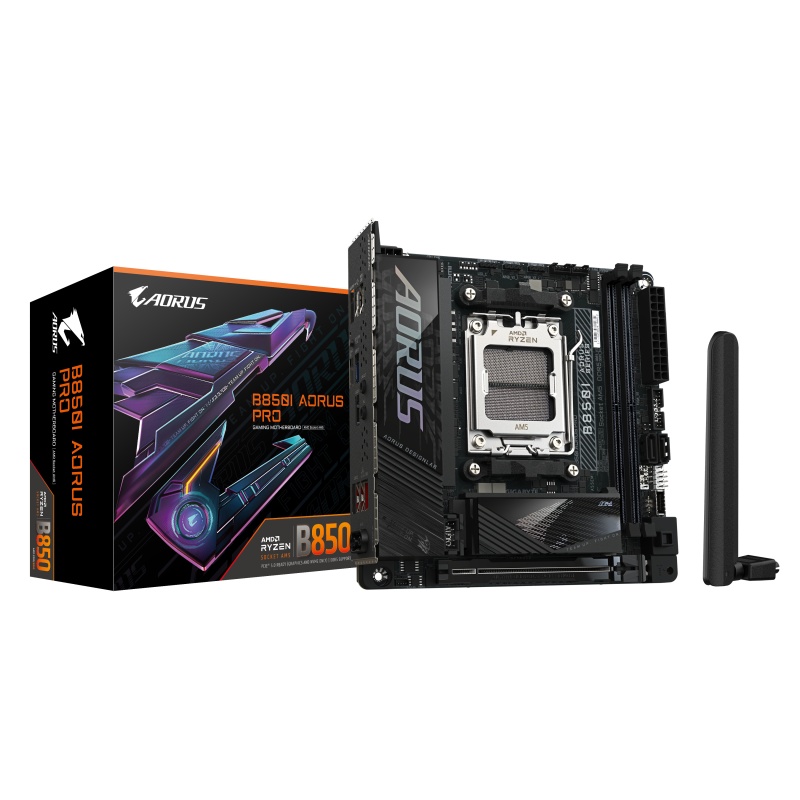

Placa de bază Gigabyte B850I AORUS PRO AM5
1.416 97 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B850I AORUS PRO AM5, 2x DDR5, 1x HDMI, 1x PCIE 5.0 x16, 2x M.2, 2x SATA 6GB/s, mini-ITX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B850I AORUS PRO
Categorii
Brand
Number of SATA III connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
3
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Ethernet interface type
Gigabit Ethernet
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Microphone in
Yes
Supported storage drive types
HDD & SSD
RAID levels
0, 1, 10
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 2.0 connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of storage drives supported
4
Number of HDDs supported
2
PCI Express x16 (Gen 5.x) slots
2
Motherboard form factor
mini ITX
Supported memory clock speed (max)
8400 MHz
Supported memory clock speeds
4400,4800,5200,8400 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
Yes
Depth
170 mm
Weight
1.3 kg
Width
170 mm
Height
35 mm
Component for
PC
Product colour
Black, Brown
Country of origin
China
Windows operating systems supported
Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Audio Chip
Realtek ALC897
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
128 GB
WLAN controller model
Realtek RTL8922AE
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
AMD B850
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
HDCP
Yes
Headphone outputs
1
