NOU

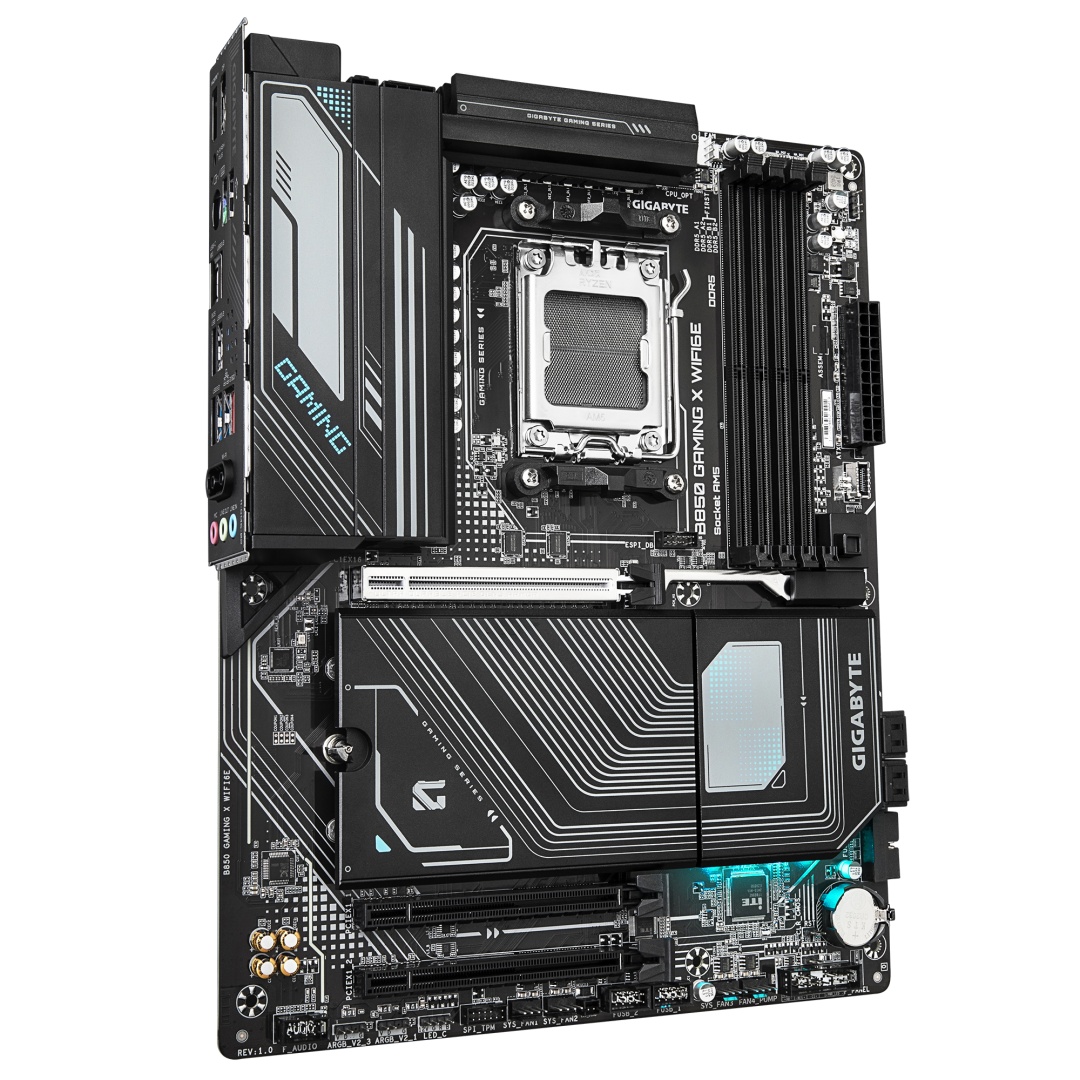

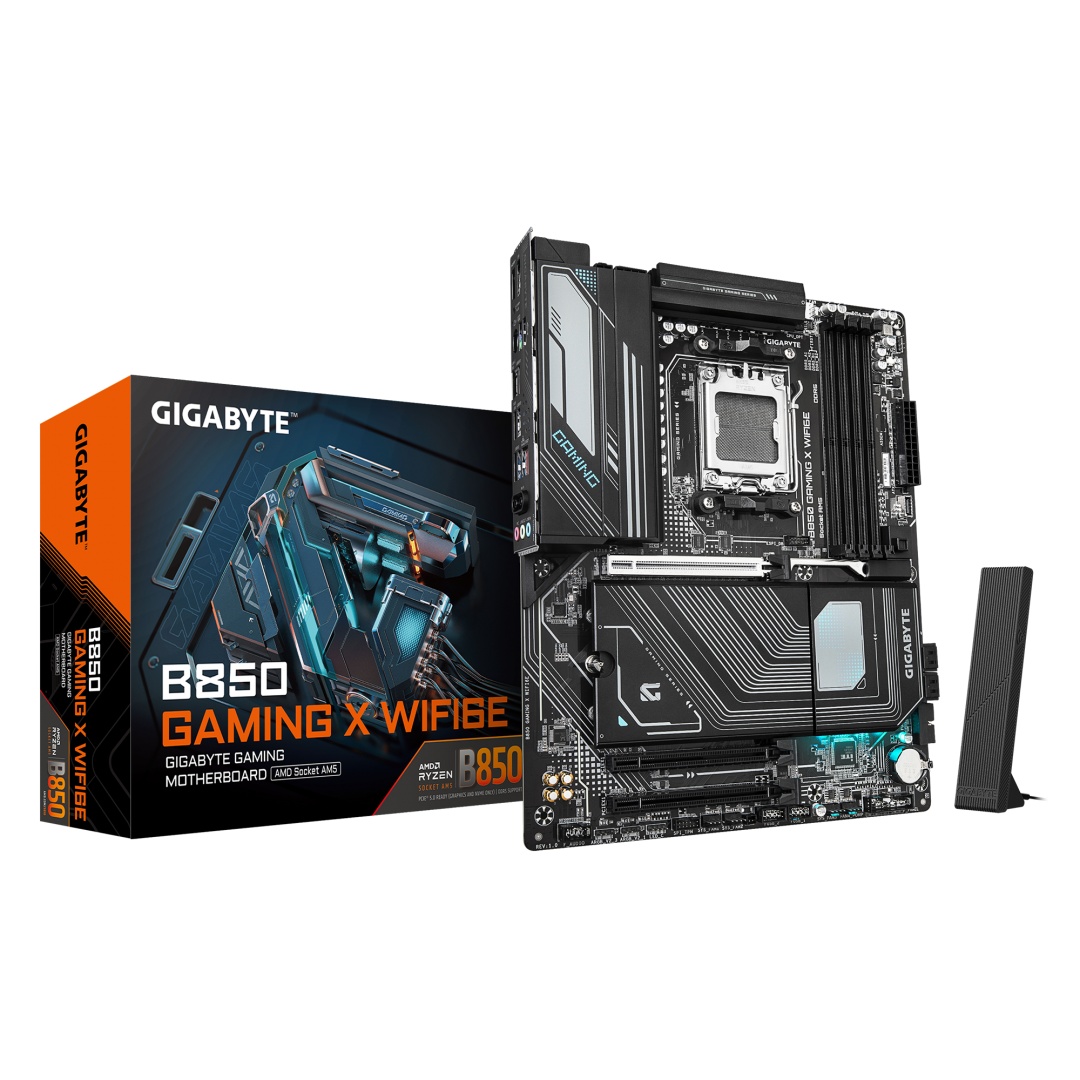

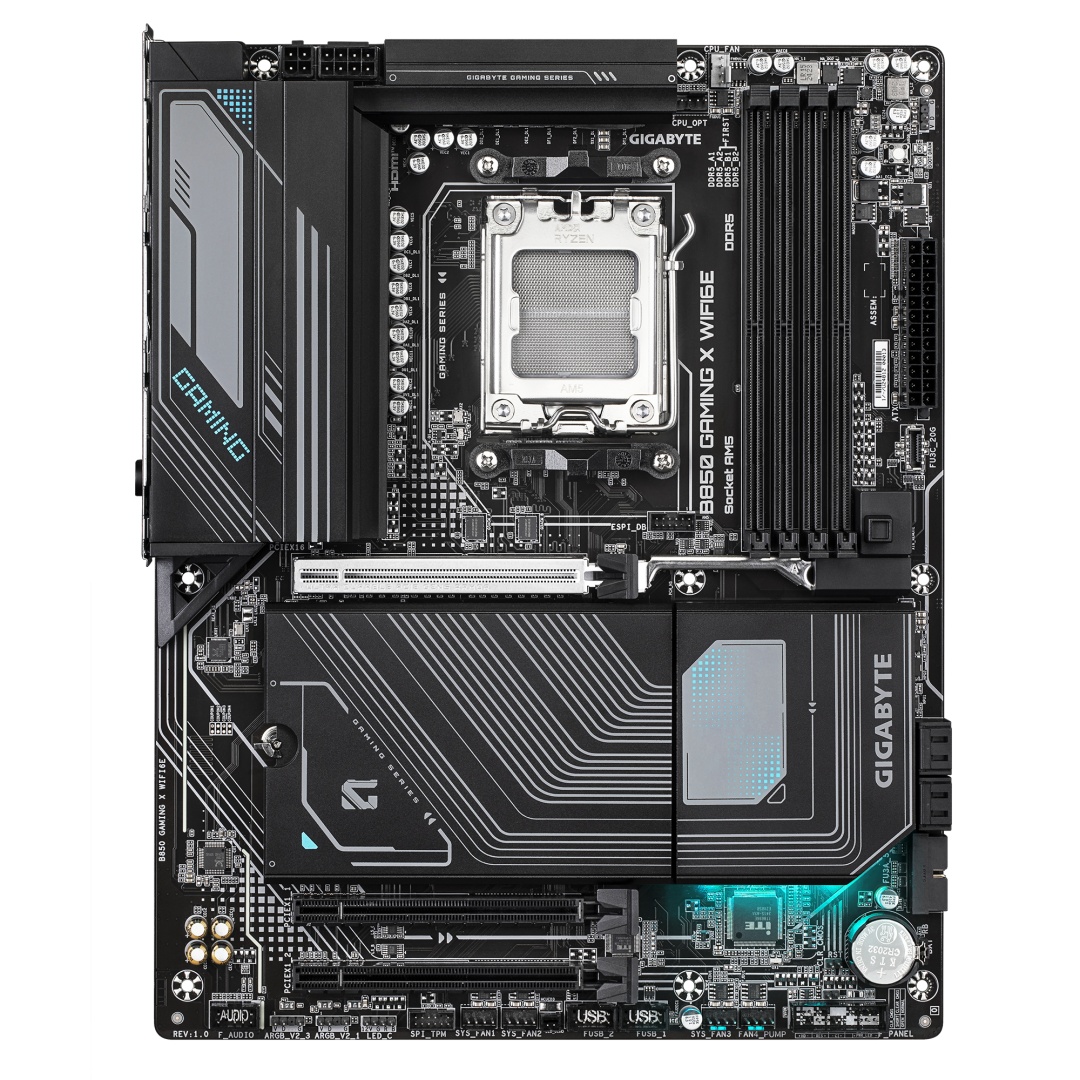

Placa de baza Gigabyte B850 GAMING X WIFI6E, Socket AM5, DDR5, ATX
1.018 07 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B850 GAMING X WIFI6E AM5, 4x DDR5, 1x HDMI 1x DP, 1x PCIE x16 2x PCIE x1, 3x M.2, 4x SATA 6GB/s, ATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B850 GAMING X WIFI6E
Categorii
Brand
Wi-FI
Yes
Ethernet LAN
Yes
Bluetooth
Yes
DisplayPorts quantity
1
HDCP
Yes
Ethernet LAN (RJ-45) ports
1
Bluetooth version
5.3
Batteries included
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Microphone in
Yes
Processor manufacturer
AMD
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Memory channels
Dual-channel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Headphone outputs
1
PCI Express x16 (Gen 5.x) slots
1
USB 2.0 ports quantity
3
Country of origin
China
Audio output channels
7.1 channels
Supported memory types
DDR5-SDRAM
VGA (D-Sub) ports quantity
0
Width
30.5 mm
Maximum internal memory
256 GB
Number of SATA III connectors
4
Products per shipping (inner) case
1 pc(s)
Warranty period
3 year(s)
DirectX version
12.0
DVI-D ports quantity
0
Parallel processing technology support
Not supported
Lithium weight per battery
0.07 g
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Motherboard chipset family
AMD
Component for
PC
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Memory slots type
DIMM
RAID levels
0, 1, 10
RAID support
Yes
Height
35 mm
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
Motherboard chipset
AMD B850
Power source type
ATX
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Maximum resolution
4096 x 2160 pixels
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
USB 3.2 Gen 2x2 connectors
1
12V power connector
Yes
Supported memory clock speeds
4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz
Supported memory clock speed (max)
8200 MHz
ECC сompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Number of memory slots
4
Unbuffered memory
Yes
Antenna included
Yes
Screws included
Yes
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of EPS power connectors (8-pin)
1
Serial port headers
1
Ethernet interface type
2.5 Gigabit Ethernet
Number of HDDs supported
4
1st M.2 largest key size
25110
Audio Chip
Realtek ALC897
Number of M.2 (M) slots
3
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
PCI-Ex16
1
Onboard-CPU
No
PCI Express x16 (Gen 3.x) slots
2
Number of chassis fan connectors
3
DisplayPort version
2.1
PCI-Ex1
2
Peripheral (Molex) power connectors (4-pin)
1
BIOS memory size
256 Mbit
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Number of storage drives supported
7
Product colour
Brown
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Depth
24.4 mm
WLAN controller model
Realtek RTL8111H
Weight
2.1 kg
Package weight
2.38 kg
