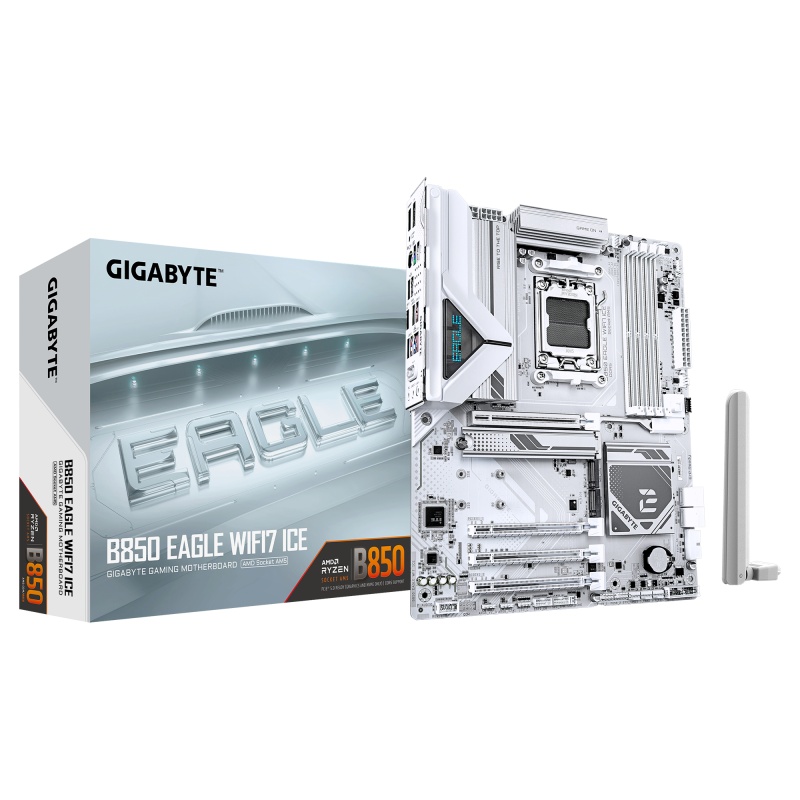

Placa de baza Gigabyte B850 EAGLE WIFI7 ICE, Socket AM5, DDR5, ATX
880 70 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B850 EAGLE WIFI7 ICE AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 2x PCIE 3.0 x16, 3x M.2, 4x SATA 6GB/s, ATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B850 EAGLE WF7 ICE
Categorii
Brand
Wi-FI
Yes
Ethernet LAN
Yes
DisplayPorts quantity
1
HDCP
Yes
HDMI version
1.4
Batteries included
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Microphone in
Yes
Product colour
White
Processor manufacturer
AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Memory channels
Dual-channel
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 2.0 ports quantity
4
Headphone outputs
1
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
PCI Express x16 (Gen 5.x) slots
1
DisplayPort version
1.4
Line-in
Yes
Audio output channels
7.1 channels
Supported memory types
DDR5-SDRAM
VGA (D-Sub) ports quantity
0
Width
30.5 mm
Maximum internal memory
256 GB
Number of SATA III connectors
4
Products per shipping (inner) case
1 pc(s)
Warranty period
3 year(s)
DirectX version
12.0
DVI-D ports quantity
0
Parallel processing technology support
Not supported
Lithium weight per battery
0.07 g
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Motherboard chipset family
AMD
Component for
PC
USB 2.0 connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Memory slots type
DIMM
PS/2 ports quantity
1
RAID levels
0, 1, 10
RAID support
Yes
Height
35 mm
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
Motherboard chipset
AMD B850
Power source type
ATX
Cooling type
Passive
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Windows operating systems supported
Windows 11 x64
Maximum resolution
4096 x 2160 pixels
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
Front panel connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
4
TPM connector
Yes
Number of water pump connectors
2
12V power connector
Yes
Supported memory clock speed (max)
8200 MHz
ECC сompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Number of memory slots
4
Unbuffered memory
Yes
WLAN controller model
Realtek RTL8922AE
Antenna included
Yes
Screws included
Yes
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Realtek RTL8125
Number of HDDs supported
4
1st M.2 largest key size
22110
Audio Chip
Realtek ALC897
Number of M.2 (M) slots
3
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
MB-Format
ATX
PCI-Ex1
0
RAM-Slots
4
MB-Socket
AM5
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
Onboard-CPU
No
PCI Express x16 (Gen 3.x) slots
2
PCI-Ex16
3
Peripheral (Molex) power connectors (4-pin)
1
BIOS memory size
256 Mbit
Number of storage drives supported
7
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Package weight
1.89 kg
Depth
24.4 mm
Weight
16.9 kg
