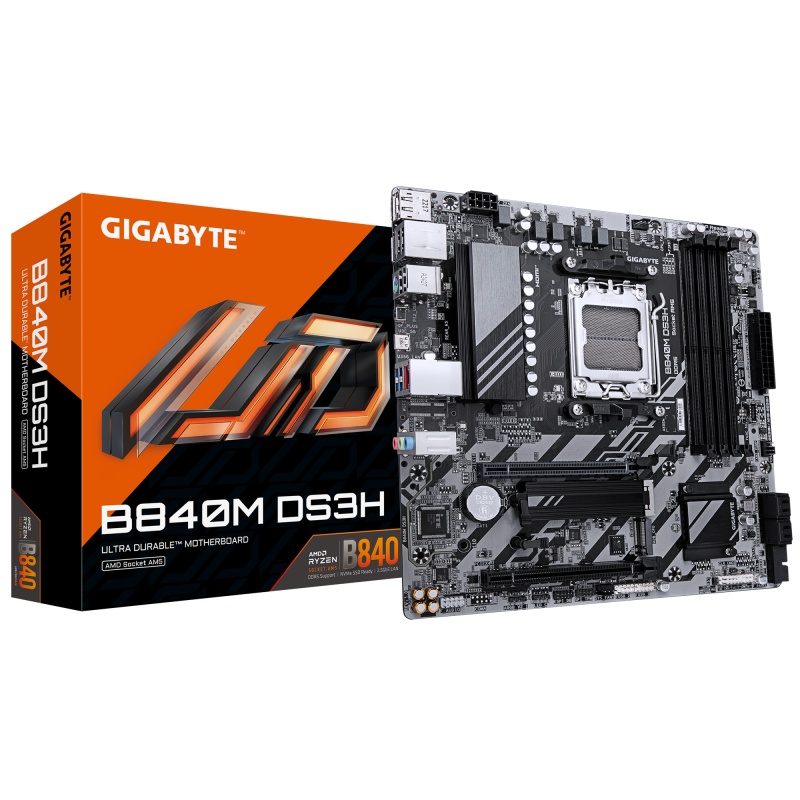

Placa de bază Gigabyte B840M DS3H AM5
484 81 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B840M DS3H AM5, 4x DDR5, 1x HDMI 2x DP, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B840M DS3H
Categorii
Brand
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID levels
0, 1, 10
RAM-Slots
4
MB-Socket
AM5
USB3
4-8
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
Motherboard form factor
micro ATX
USB 2.0 connectors
2
Number of chassis fan connectors
2
Number of storage drives supported
6
MB-Format
micro-ATX
PS/2 ports quantity
1
PCI-Ex1
0
Ethernet interface type
2.5 Gigabit Ethernet
PCI-Ex16
2
1st M.2 largest key size
2580
Number of RGB LED pin headers
3
LAN controller
Realtek RTL8125
Supported memory clock speed (max)
8200 MHz
PCI Express x16 (Gen 3.x) slots
1
2nd M.2 largest key size
25110
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Wi-Fi
No
Depth
244 mm
Weight
1.05 kg
Width
244 mm
Height
35 mm
Component for
PC
Package width
265 mm
Package depth
265 mm
Package height
54 mm
Package weight
11.3 kg
Product colour
Dark brown
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty period
3 year(s)
DisplayPort version
1.4
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Audio Chip
Realtek ALC897
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
256 GB
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
HDMI version
2.1
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B840
RAID support
Yes
DisplayPorts quantity
2
VGA (D-Sub) ports quantity
0
HDCP
Yes
Headphone outputs
1
