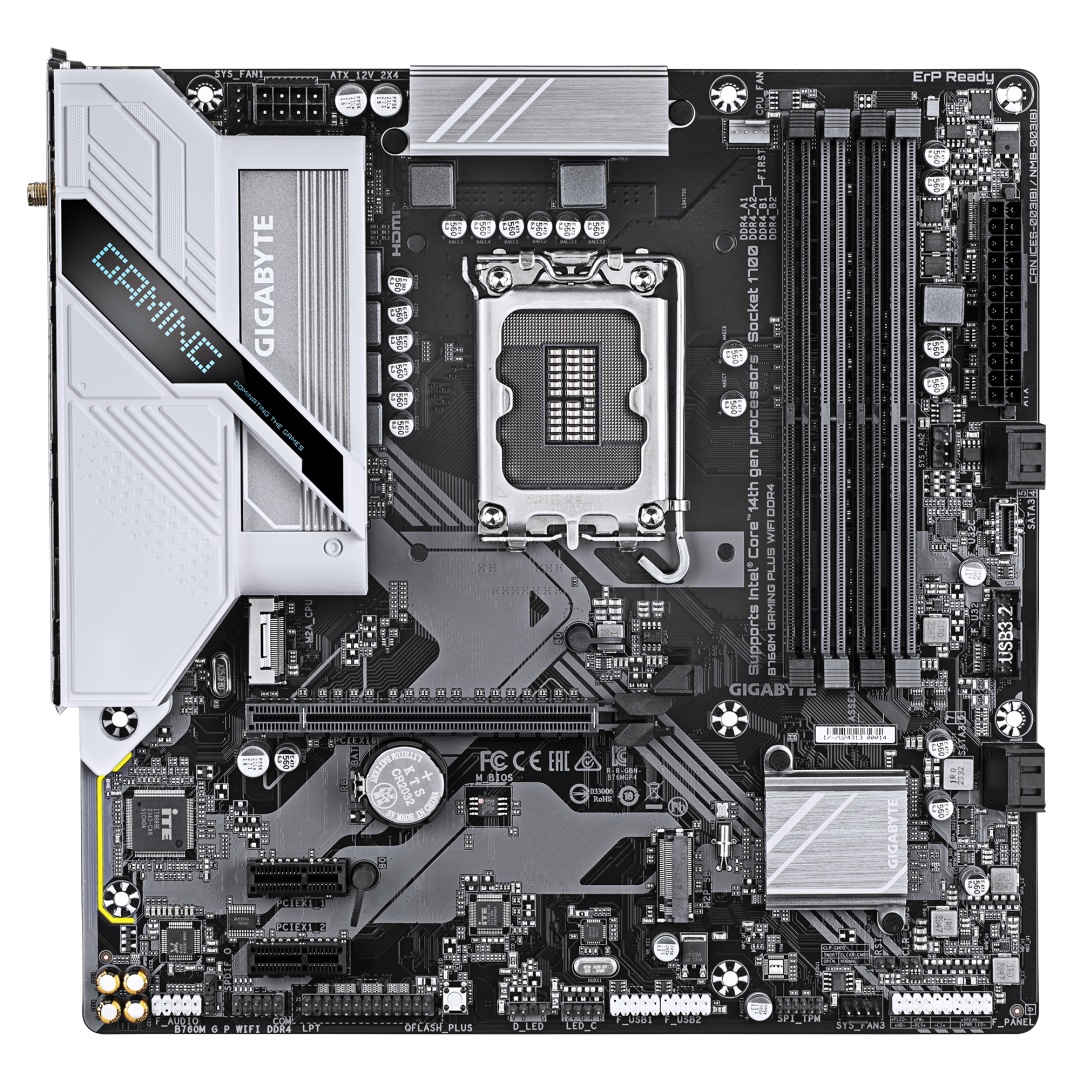

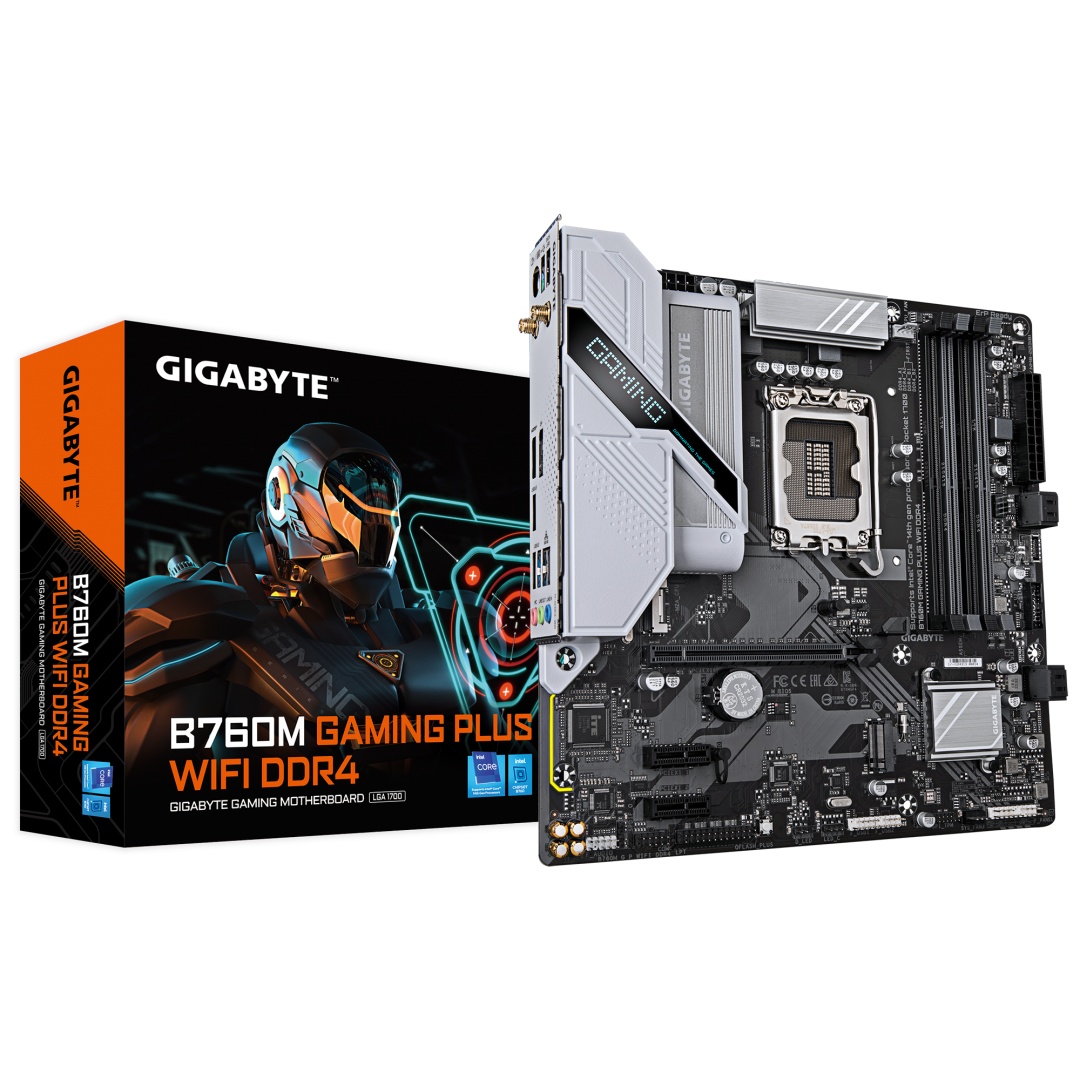

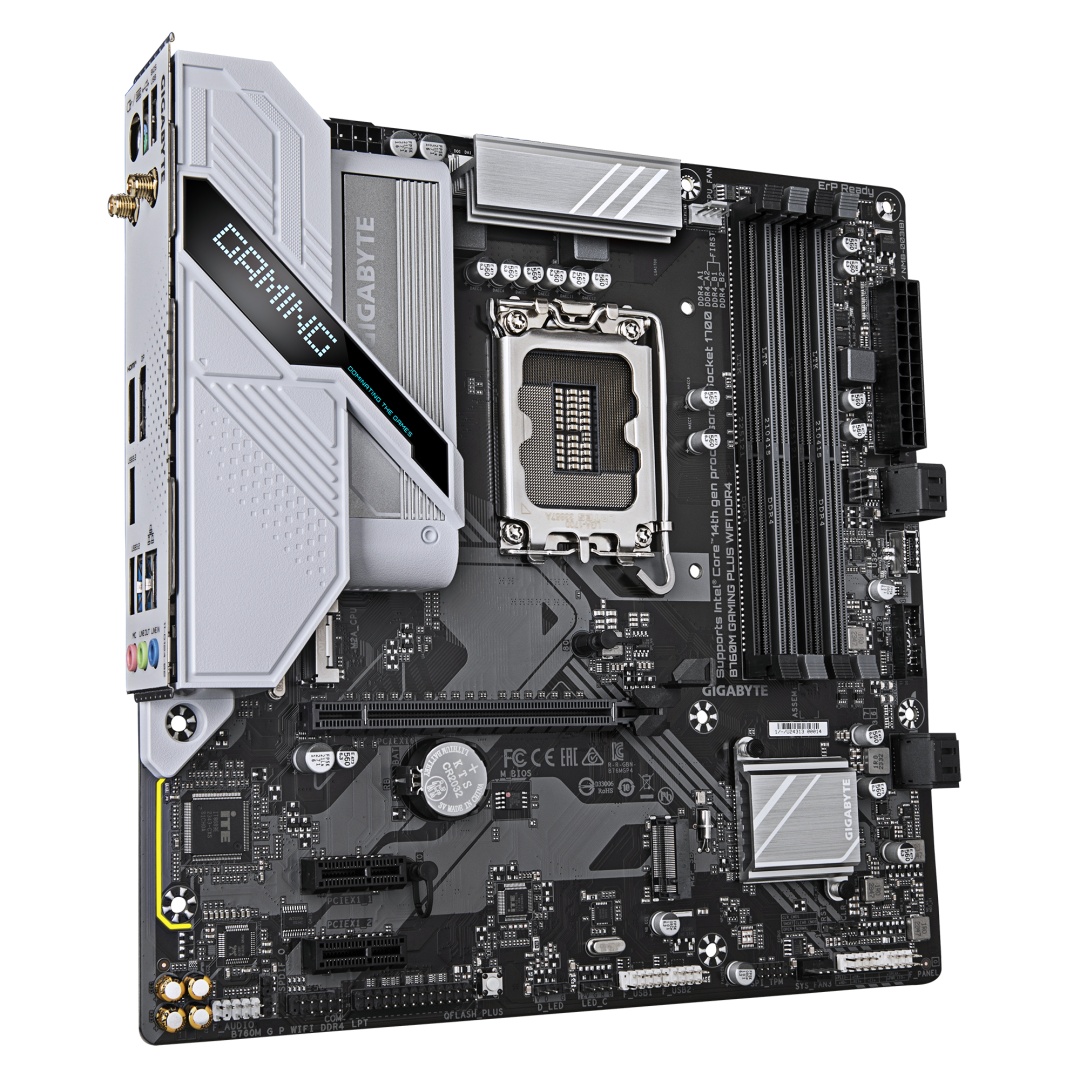

Placa de baza Gigabyte B760M GAMING PLUS WIFI, Socket 1700, DDR4, Micro-ATX
612 73 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B760M GAMING PLUS WIFI DDR4 LGA1700, 4x DDR4, 1x HDMI 1x DP, 1x PCIE x16 2x PCIE x1, 2x M.2, 4x SATA 6GB/s, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B760M G P WIFI DDR4
Categorii
Brand
PCI Express x1 (Gen 3.x) slots
2
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAM-Slots
4
USB3
4-8
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
Number of CPU fan connectors
1
S/PDIF out connector
Yes
ECC сompatibility
ECC & Non-ECC
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
MB-Socket
1700
MB-Format
micro-ATX
PCI-Ex16
1
Number of RGB LED pin headers
2
PS/2 ports quantity
1
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
PCI-Ex1
2
Maximum resolution
4096 x 2304 pixels
Parallel connector
Yes
Maximum internal memory supported by processor
128 GB
Supported memory clock speed (max)
5333 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
Yes
Depth
24.4 mm
Weight
1.1 kg
Width
244 mm
Height
35 mm
Component for
PC
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
12 kg
Product colour
Grey
Country of origin
China
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty period
3 year(s)
DisplayPort version
1.2
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
BLUETOOTH
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version
5.3
Audio Chip
Realtek ALC897
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
128 GB
WLAN controller model
Realtek RTL8851BE
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B760
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
HDCP
Yes
Headphone outputs
1
