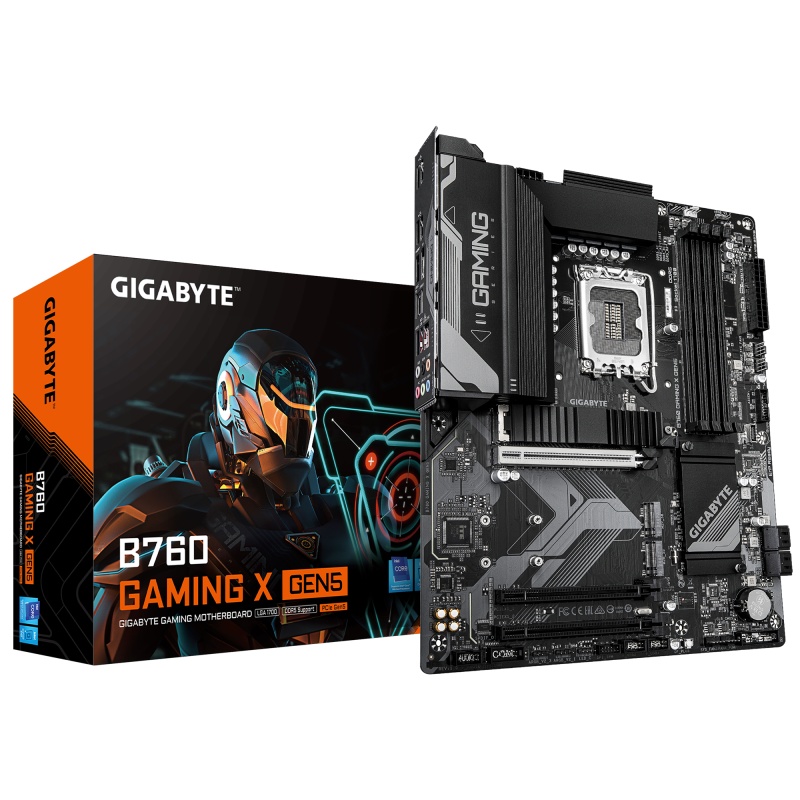

Placa de bază Gigabyte B760 GAMING X GEN5 LGA1700
674 93 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B760 GAMING X GEN5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 2x PCIE 3.0 x16, 3x M.2, 4x SATA 6GB/s, ATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B760 GAMING X GEN5
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
3
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 3.x) slots
2
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Screws included
Yes
DVI-D ports quantity
0
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
MB-Format
ATX
RAM-Slots
4
USB3
4-8
1st M.2 highest PCI Express generation
4.0
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
S/PDIF out connector
Yes
ECC сompatibility
ECC & Non-ECC
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
RAID levels
0, 1, 5, 10
MB-Socket
1700
1st M.2 largest key size
22110
PCI-Ex1
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
PCI-Ex16
2
Number of chassis fan connectors
4
LAN controller
Realtek RTL8125
Maximum resolution
4096 x 2304 pixels
Supported memory clock speeds
4400,4800,5200,5600 MHz
Supported memory clock speed (max)
5600 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Wi-Fi
No
Depth
244 mm
Weight
1.56 kg
Width
305 mm
Height
35 mm
Component for
PC
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
1.8 kg
Product colour
Dark brown
Country of origin
China
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
Warranty period
3 year(s)
DisplayPort version
1.2
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Audio Chip
Realtek ALC897
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
256 GB
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 2.0 ports quantity
5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
HDMI version
2.1
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B760
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
HDCP
Yes
Headphone outputs
1
