NOU

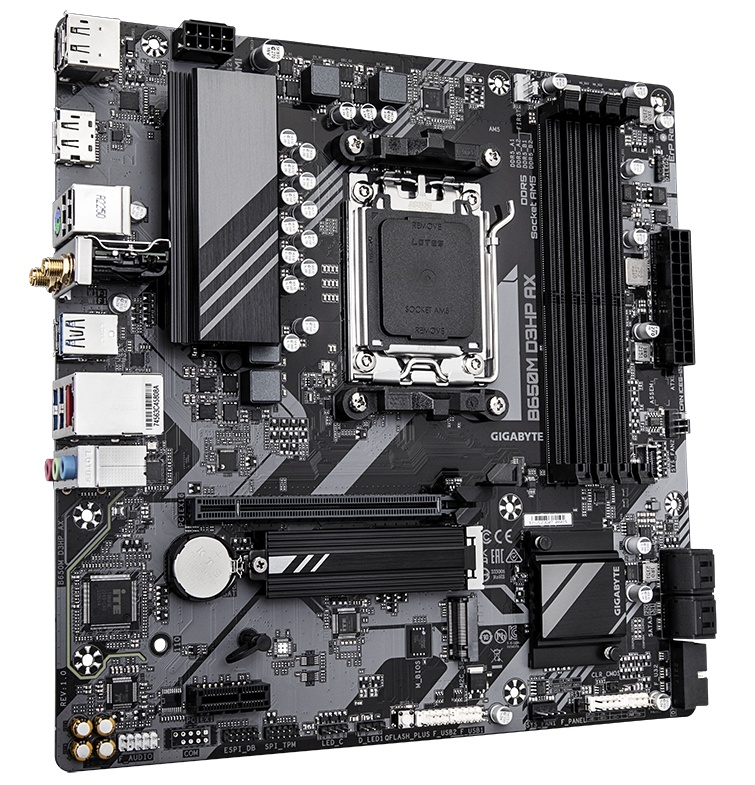

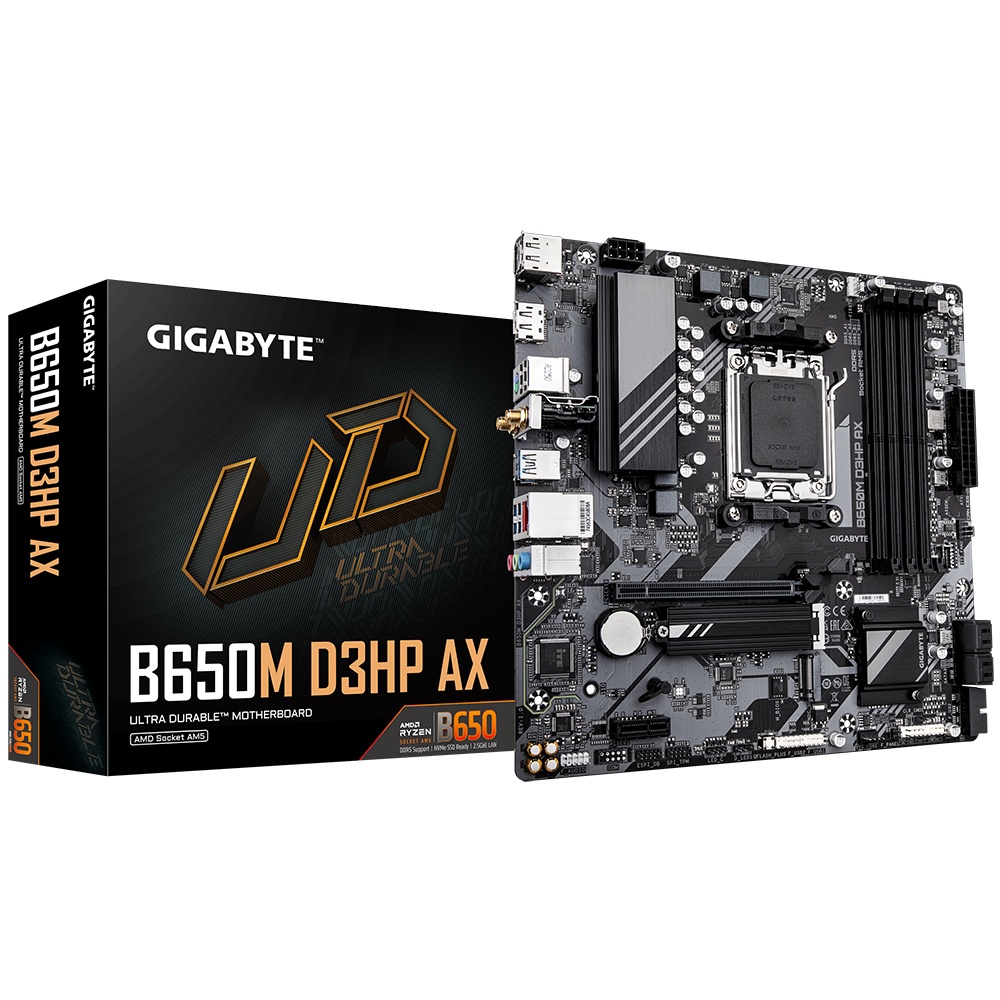

Placa de baza Gigabyte B650M D3HP AX, Socket AM5, DDR5, Micro-ATX
622 78 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza GIGABYTE B650M D3HP AX AM5, 4x DDR5, 2x DP 1x HDMI, 1x PCIE x16 1x PCIE x1, 2x M.2, 4x SATA 6gb/s, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B650M D3HP AX
Categorii
Brand
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speeds
4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz
Supported memory clock speed (max)
7600 MHz
ECC сompatibility
Non-ECC
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID levels
0, 1, 10
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
Motherboard form factor
micro ATX
USB 2.0 connectors
2
Number of chassis fan connectors
2
Number of CPU fan connectors
1
Number of storage drives supported
6
PS/2 ports quantity
1
Ethernet interface type
2.5 Gigabit Ethernet
1st M.2 largest key size
2580
PC health monitoring
Fan, Temperature, Voltage
Number of RGB LED pin headers
3
LAN controller
Realtek RTL8125
Discrete graphics support
Yes
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
Yes
Depth
24.4 mm
Width
244 mm
Height
35 mm
Component for
PC
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
1.2 kg
Product colour
Brown
Country of origin
China
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
DisplayPort version
1.4
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Audio Chip
Realtek ALC897
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
256 GB
WLAN controller model
Realtek RTL8852CE
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
HDMI version
2.1
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B650
RAID support
Yes
DisplayPorts quantity
2
VGA (D-Sub) ports quantity
0
HDCP
Yes
Headphone outputs
1
