NOU

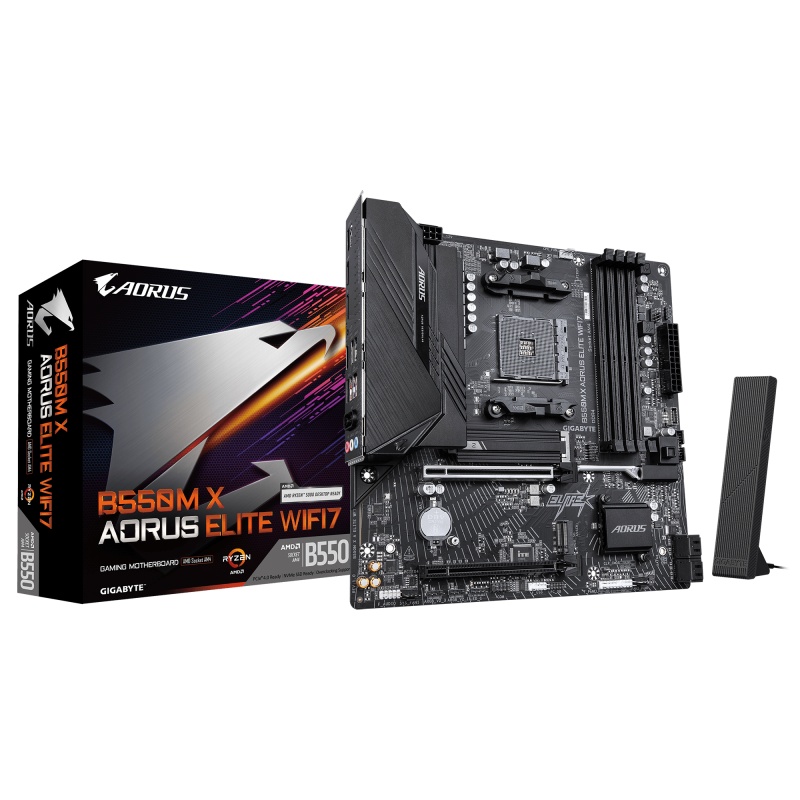

Placa de baza Gigabyte B550M X AORUS ELITE WIFI7, Socket AM4, DDR4, Micro-ATX
765 38 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza Gigabyte B550M X A ELITE WF7
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B550M X A ELITE WF7
Categorii
Brand
Product colour
Black
Wi-FI
Yes
Ethernet LAN
Yes
Bluetooth
Yes
DisplayPorts quantity
1
USB 2.0 ports quantity
2
HDCP
Yes
Ethernet LAN (RJ-45) ports
1
HDCP version
2.3
Batteries included
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
HDMI ports quantity
1
HDMI version
2.1
Microphone in
Yes
Processor manufacturer
AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Memory channels
Dual-channel
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Maximum internal memory
128 GB
Audio Chip
Realtek ALC1220
DisplayPort version
1.4
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Country of origin
China
Audio output channels
7.1 channels
PCI Express x16 (Gen 3.x) slots
1
VGA (D-Sub) ports quantity
0
Weight
1.14 kg
Number of SATA III connectors
4
Products per shipping (inner) case
1 pc(s)
Warranty period
3 year(s)
DirectX version
12.0
DVI-D ports quantity
0
Parallel processing technology support
Not supported
Lithium weight per battery
0.07 g
Battery capacity
220 mAh
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
BIOS memory size
128 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Component for
PC
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Supported memory clock speed (max)
3200 MHz
ECC сompatibility
ECC & Non-ECC
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Supported processor sockets
Socket AM4
Processor socket
Socket AM4
RAID levels
0, 1, 10
RAID support
Yes
Height
35 mm
Width
244 mm
1st M.2 largest key size
2580
Power source type
ATX
Cooling type
Passive
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
12V power connector
Yes
Number of memory slots
4
Unbuffered memory
Yes
WLAN controller model
Realtek RTL8922AE
Bundled software
Norton Internet Security (OEM version)
Antenna included
Yes
Screws included
Yes
WiFi-AP antenna jack
2
Number of storage drives supported
6
Supported storage drive types
HDD & SSD
Depth
244 mm
Desktop Management Interface (DMI) version
2.3
2nd M.2 largest key size
2280
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
2nd M.2 highest PCI Express generation
3.0
PC health monitoring
Temperature, Voltage, Fan, Water cooling
Windows operating systems supported
Windows 11
Motherboard chipset
AMD B550
Maximum resolution
5120 x 2880 pixels
USB 2.0 connectors
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Supported memory clock speeds
3200,2933,2667,2400,2133 MHz
Maximum internal memory per slot
32 GB
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Realtek RTL8125
Package height
68 mm
Package width
270 mm
Package depth
268 mm
Package weight
1.3 kg
Compatible processor series
AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 3.0, SATA III
Number of HDDs supported
4
