NOU

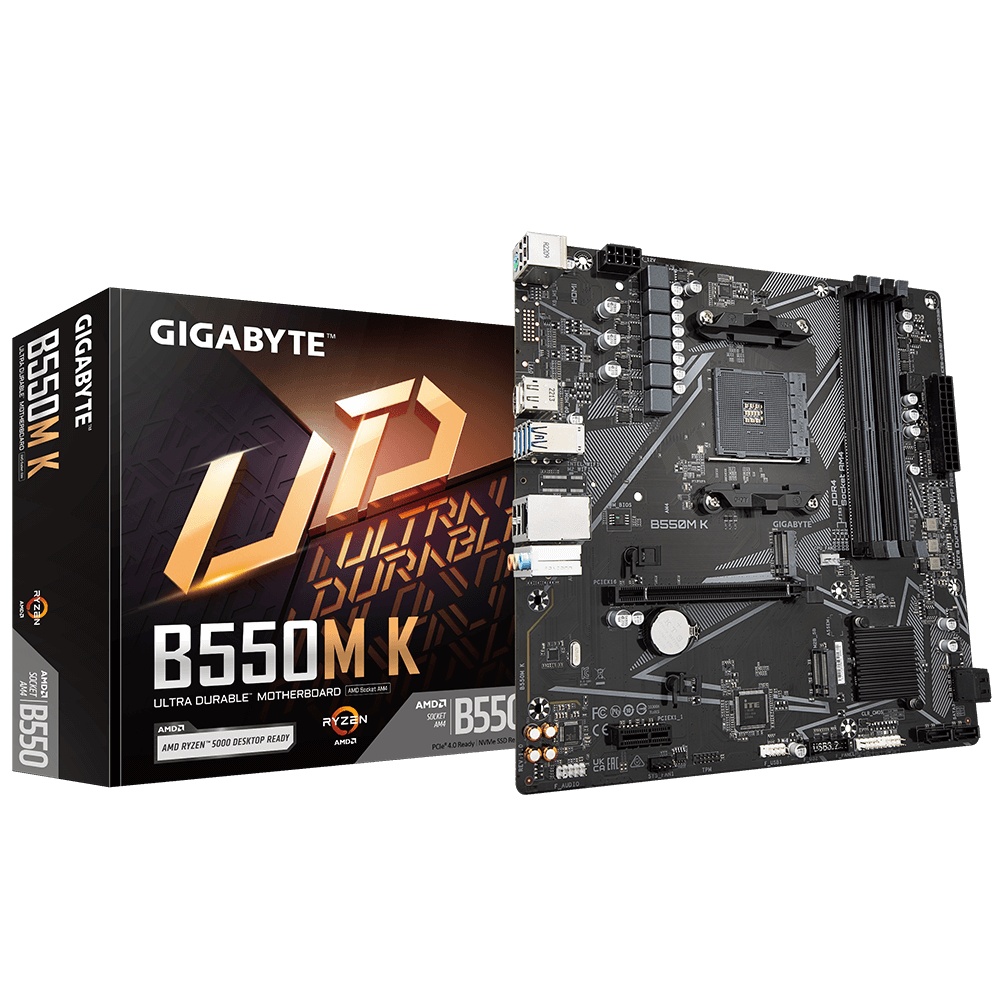

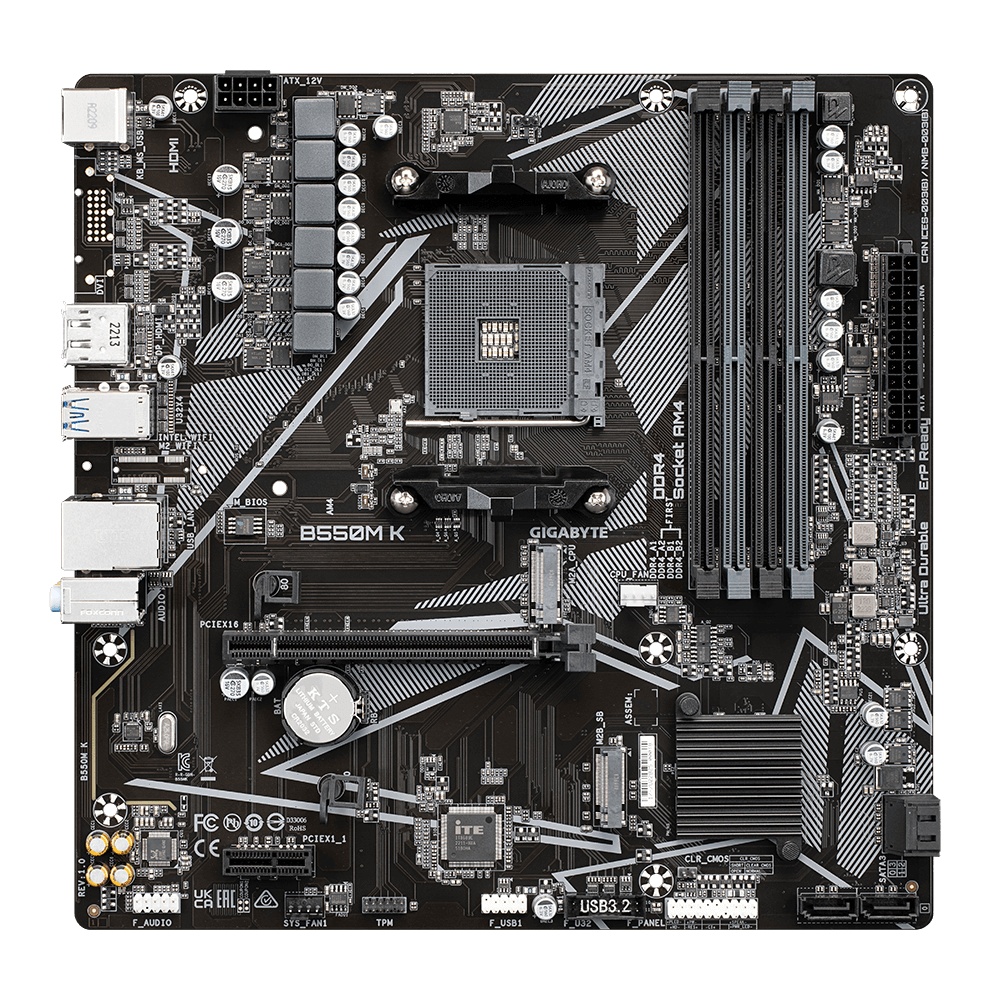

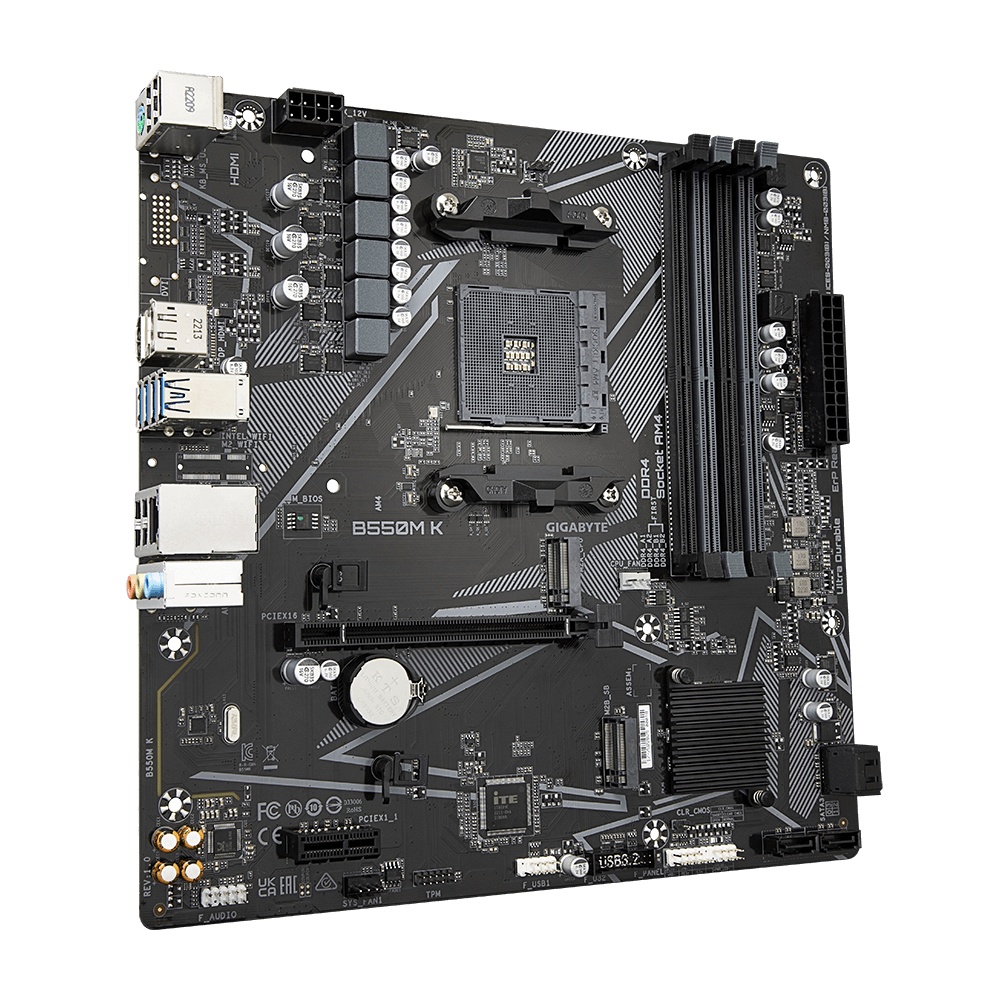

Placa de baza Gigabyte B550M K, Socket AM4, DDR4, Micro-ATX
383 13 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

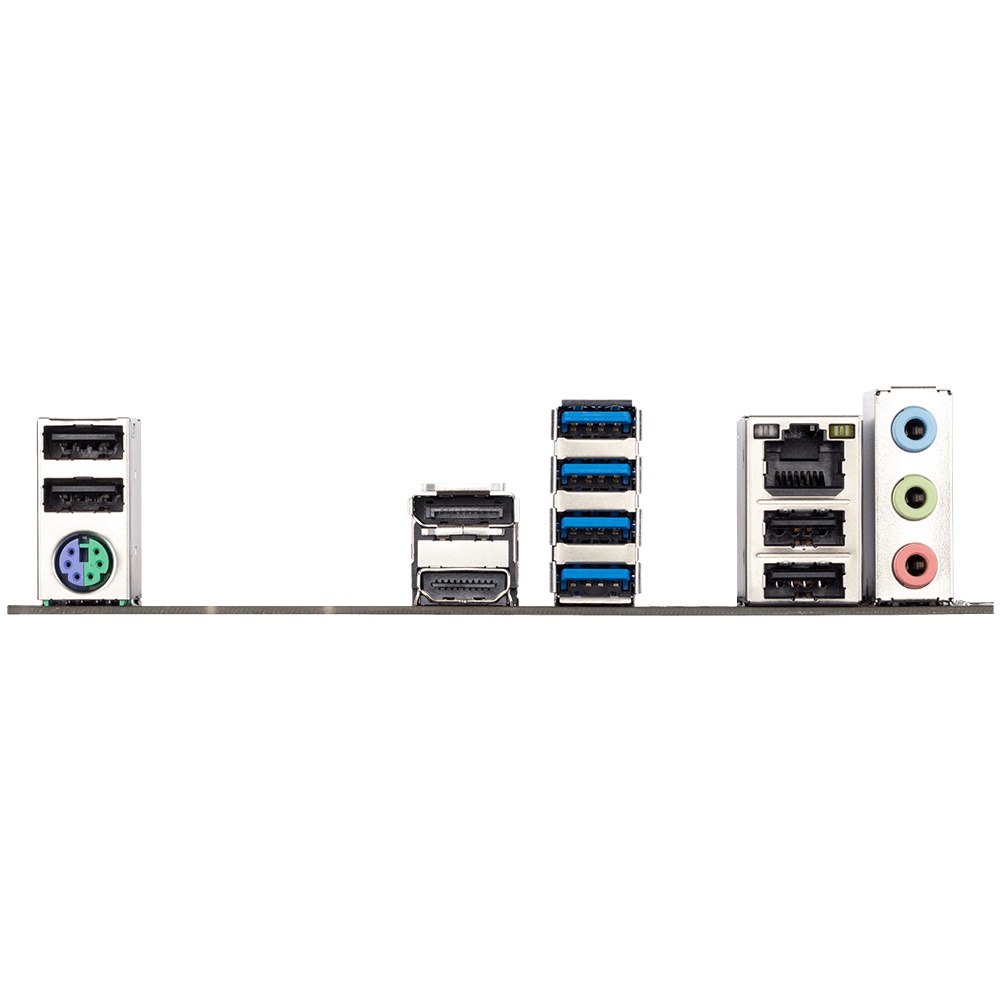

Placa de baza Gigabyte B550M K AM4, 4x DDR4, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gb/s, 1Gbps LAN, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B550M K
Categorii
Brand
Ethernet LAN
Yes
DisplayPorts quantity
1
HDCP
Yes
Ethernet LAN (RJ-45) ports
1
Batteries included
Yes
On-board graphics card
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
Microphone in
Yes
Processor manufacturer
AMD
USB 2.0 ports quantity
4
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Maximum internal memory
128 GB
DisplayPort version
1.4
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Country of origin
China
Audio output channels
7.1 channels
PCI Express x16 slots
1
Wi-FI
No
Graphics card family
AMD
VGA (D-Sub) ports quantity
0
Ethernet interface type
Gigabit Ethernet
Number of SATA III connectors
4
PCI Express x1 (Gen 3.x) slots
1
Products per shipping (inner) case
1 pc(s)
Warranty period
3 year(s)
DirectX version
12.0
DVI-D ports quantity
0
Parallel processing technology support
Not supported
Lithium weight per battery
0.07 g
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
BIOS memory size
128 Mbit
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Component for
PC
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Power fan connector
Yes
ECC сompatibility
ECC & Non-ECC
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Package width
265 mm
Supported processor sockets
Socket AM4
Processor socket
Socket AM4
PS/2 ports quantity
1
RAID levels
0, 1, 10
RAID support
Yes
Height
35 mm
Width
244 mm
Power source type
ATX
Cooling type
Passive
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
Front panel connector
Yes
TPM connector
Yes
12V power connector
Yes
Number of memory slots
4
Unbuffered memory
Yes
Screws included
Yes
Number of HDDs supported
2
Number of storage drives supported
6
Supported storage drive types
HDD & SSD
2nd M.2 largest key size
2280
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
2nd M.2 highest PCI Express generation
3.0
Motherboard chipset
AMD B550
Maximum resolution
5120 x 2880 pixels
USB 2.0 connectors
1
Number of EPS power connectors (8-pin)
1
Maximum internal memory per slot
32 GB
1st M.2 largest key size
2280
Audio Chip
Realtek ALC897
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Supported memory clock speed (max)
4733 MHz
Supported memory clock speeds
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Maximum internal memory supported by processor
128 GB
Windows operating systems supported
Windows 10 x64, Windows 11 x64
LAN controller
Realtek RTL8111H
Package depth
265 mm
Package height
54 mm
Number of chassis fan connectors
1
Number of CPU fan connectors
1
PC health monitoring
Fan, Temperature, Voltage
Total number of SATA connectors
4
Audio connector
Yes
Supported storage drive interfaces
M.2, SATA
PCI Express x1 slots
1
Product colour
Brown
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Depth
24.4 mm
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory channels
Dodeca-channel
Package weight
837 g
