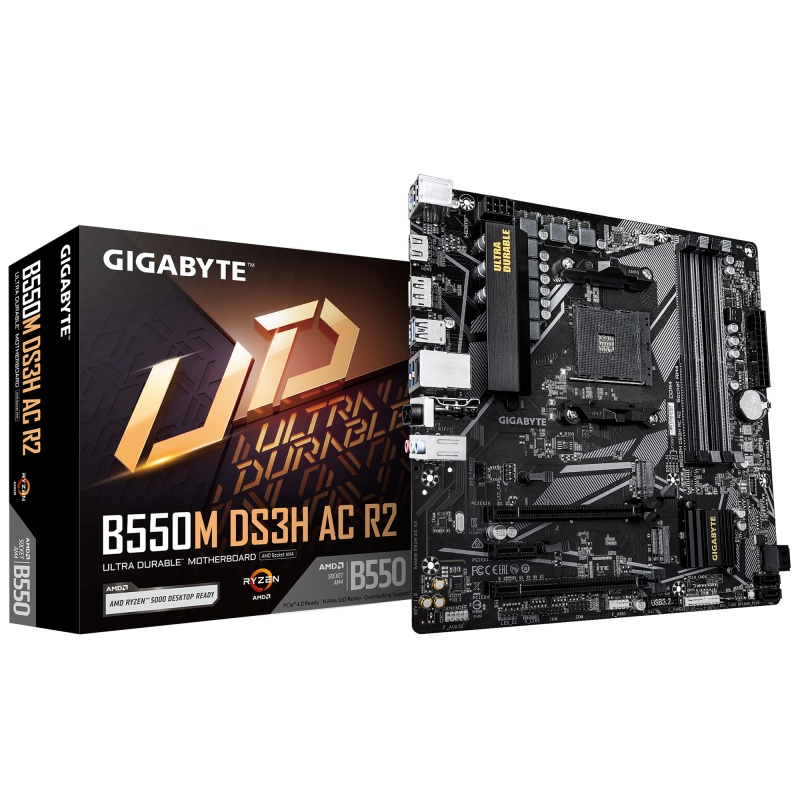

Placa de baza Gigabyte B550M DS3H AC R2, Socket AM4, DDR4, Micro-ATX
501 46 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE B550M DS3H AC R2 AM4, 4x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B550M DS3H AC R2
Categorii
Brand
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID levels
0, 1, 10
RAM-Slots
4
USB3
4-8
PCI-Ex1
1
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
Number of chassis fan connectors
2
Number of CPU fan connectors
1
ECC сompatibility
ECC & Non-ECC
Number of storage drives supported
6
MB-Format
micro-ATX
USB 2.0 connectors
1
PS/2 ports quantity
1
2nd M.2 highest PCI Express generation
3.0
Number of RGB LED pin headers
5
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
PCI-Ex16
2
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
PC health monitoring
Fan, Temperature, Voltage
PCI Express x16 (Gen 3.x) slots
1
Maximum resolution
5120 x 2880 pixels
MB-Socket
AM4
Supported memory clock speed (max)
4733 MHz
Supported memory clock speeds
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Wi-Fi
Yes
Depth
24.4 mm
Weight
980 g
Width
244 mm
Height
35 mm
Component for
PC
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
1.07 kg
Product colour
Dark brown
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty period
3 year(s)
DisplayPort version
1.4
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
BLUETOOTH
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version
5.0
On-board graphics card
No
Audio Chip
Realtek ALC1220-VB
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
128 GB
WLAN controller model
Realtek RTL8821CE
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, PCI Express 3.0, PCI Express 4.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B550
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
HDCP
Yes
Headphone outputs
1
