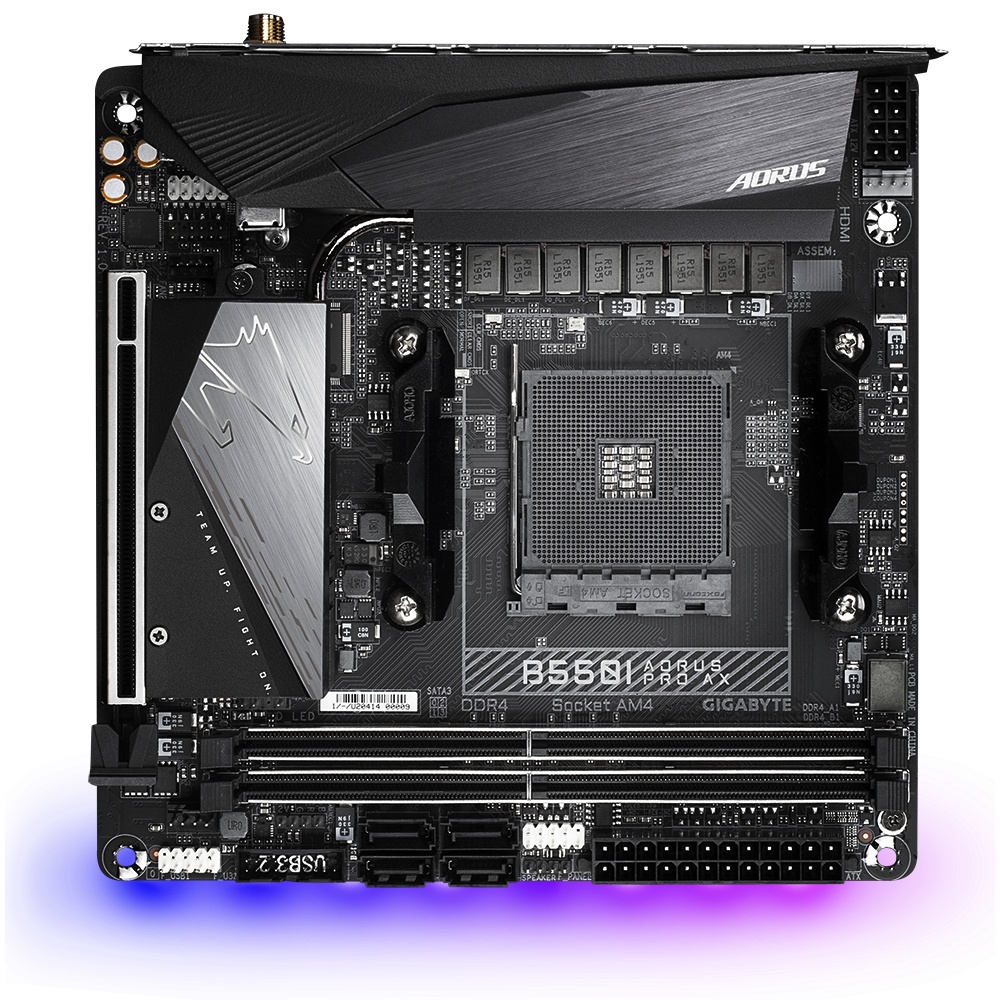

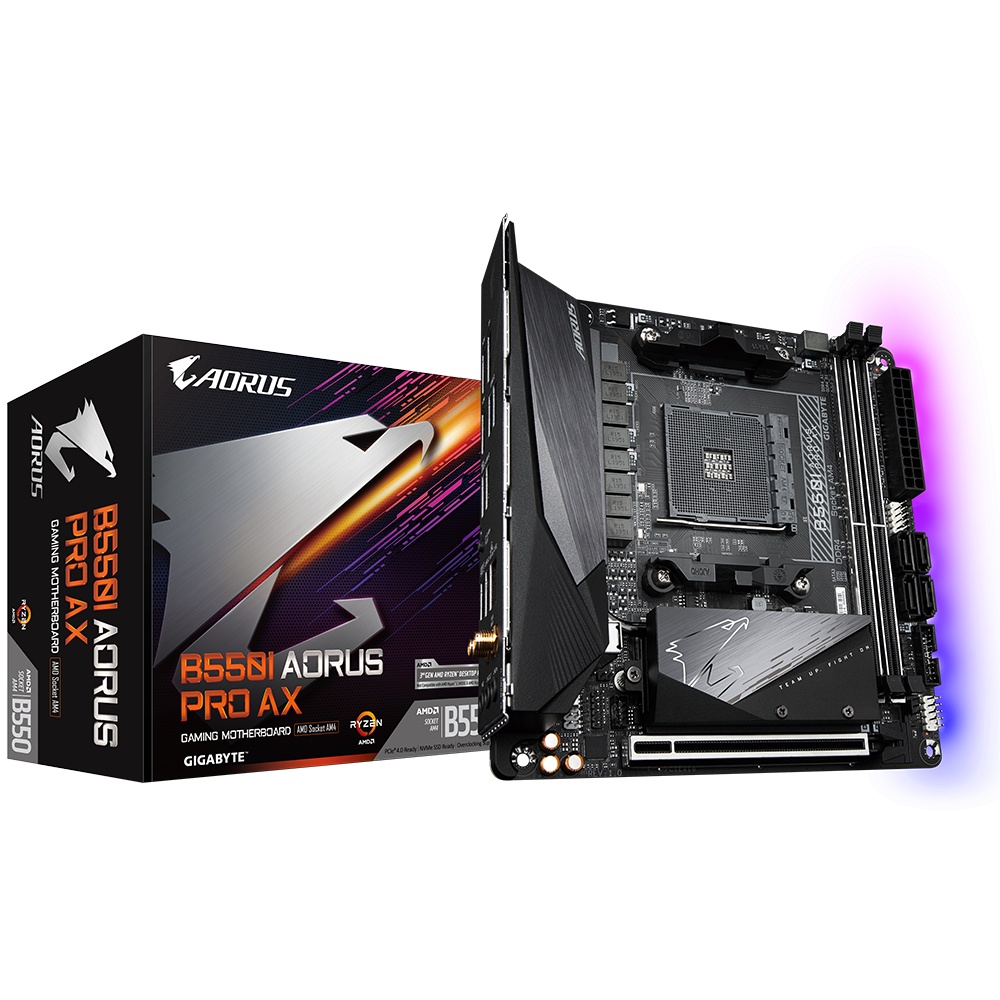

Placa de baza Gigabyte B550I AORUS PRO AX, Socket AM4, DDR4, Mini-ITX

845 92 RON (TVA inclus)
Costurile de livrare nu sunt incluse
Cod produs - SKU B550I AORUS PRO AX
Disponibil in stoc
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0733.941.350 (Luni-Vineri, 09:00-18:00)

Descriere

Placa de baza Gigabyte B550I AORUS PRO AX AM4 CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors (Please refer "CPU Support List" for more information.) Chipset AMD B550 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory AMD Ryzen™ 5000 series Processors/ 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) /4866(O.C.) / 4600(O.C.) / 4400 (O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600 (O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333 (O.C.)/3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB Audio Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual- Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate https://www.gigabyte.com/Motherboard/B550I-AORUS-PRO-AX-rev-10/sp#sp

Ce spun clientii

Detii sau ai utilizat produsul?
Posteaza review

Detalii

SKU
B550I AORUS PRO AX
Categorii
Placi de baza
Brand
GIGABYTE
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
DVI-D ports quantity
0
Number of HDDs supported
4
RAID levels
0, 1, 10
Number of M.2 (M) slots
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Number of storage drives supported
6
USB 2.0 connectors
1
Supported memory types
DDR4-SDRAM
Processor socket
Socket AM4
Ethernet interface type
2.5 Gigabit Ethernet
Maximum number of SMP processors
1
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
PC health monitoring
Fan, Temperature, Voltage
Total number of SATA connectors
4
Maximum resolution
5120 x 2880 pixels
PS/2 ports quantity
0
Motherboard form factor
mini ITX
Number of displays supported
3
Maximum internal memory supported by processor
64 GB
Supported memory clock speeds
2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4400,4600,4800,5100,5200,5300 MHz
Supported memory clock speed (max)
5300 MHz
Compatible processor series
AMD Ryzen 3000 Series
Harmonized System (HS) code
84733020
Number of Parallel ATA connectors
0
PCI
0
Serial-or-Paralel
No/No
Wi-Fi
Yes
Depth
170 mm
Weight
790 g
Width
170 mm
Height
35 mm
Component for
Nettop
Package width
265 mm
Package depth
235 mm
Package height
97 mm
Package weight
1.4 kg
Country of origin
Taiwan
Windows operating systems supported
Windows 10 x64, Windows 11 x64
DisplayPort version
1.4
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
On-board graphics card
No
Audio Chip
Realtek ALC1220-VB
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
64 GB
HDMI ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, SATA
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
AMD B550
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
HDCP
Yes
