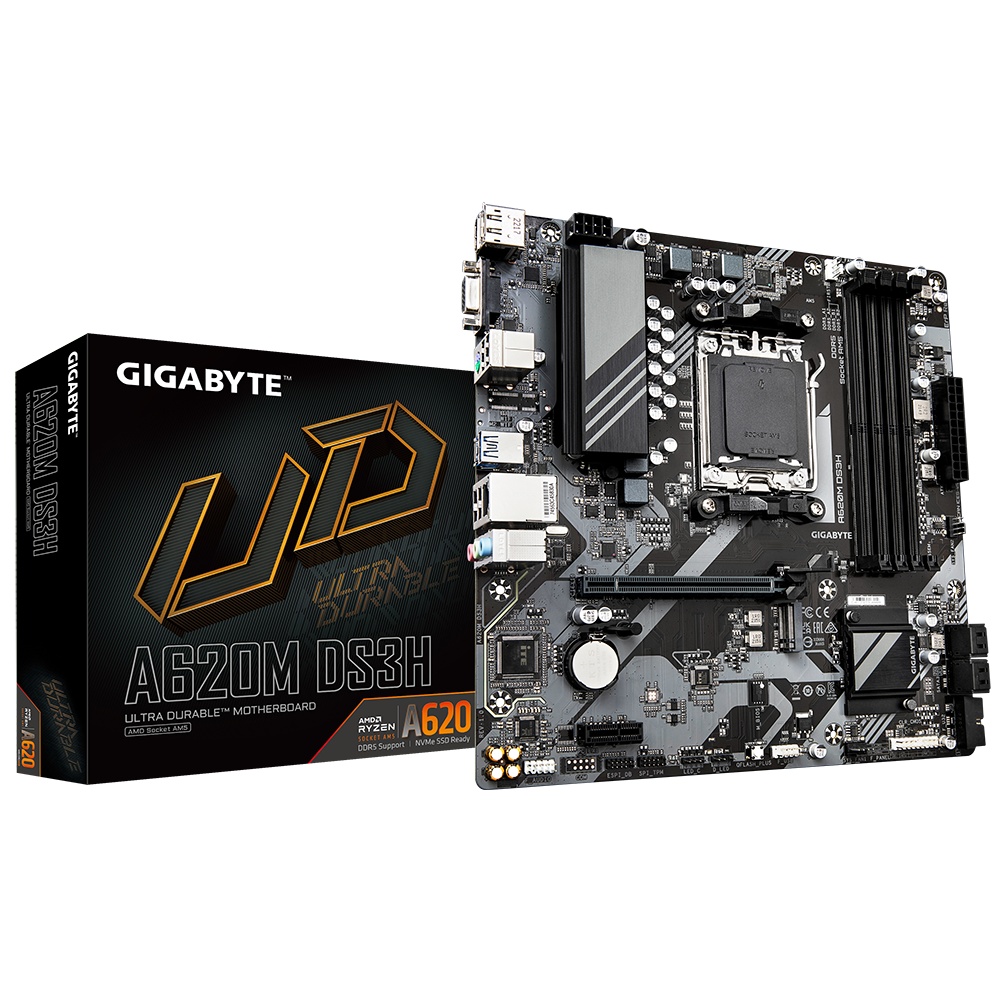

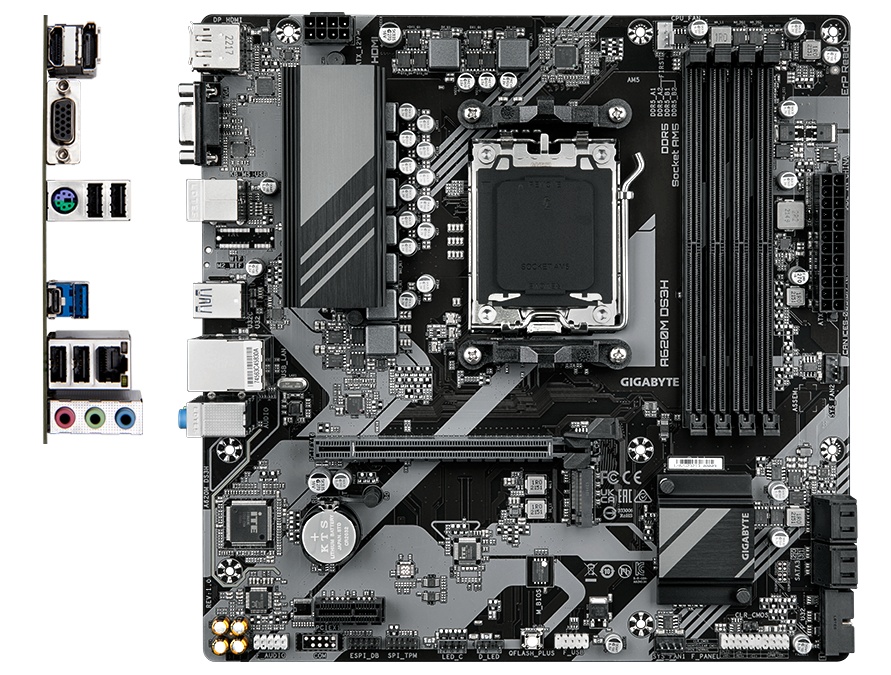

Placa de baza Gigabyte A620M DS3H, Socket AM5, DDR5, Micro-ATX
443 06 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
MB GIGABYTE A620M DS3H (rev. 1.0) AM5 4xDDR5 1x Display Port, 1x HDMI, 1x D-Sub, Micro ATX https://www.gigabyte.com/Motherboard/A620M-DS3H-rev-10/sp#sp
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
A620M DS3H
Categorii
Brand
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speed (max)
7600 MHz
ECC сompatibility
Non-ECC
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Microphone in
Yes
Supported storage drive types
HDD & SSD
RAID levels
0, 1, 10
RAM-Slots
4
MB-Socket
AM5
USB3
4-8
PCI-Ex1
1
Motherboard form factor
micro ATX
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
MB-Format
micro-ATX
PCI-Ex16
1
Number of M.2 (M) slots
1
USB 2.0 connectors
1
PS/2 ports quantity
1
Total number of SATA connectors
4
Number of storage drives supported
4
Compatible processor series
AMD Ryzen 7000 Series
PCI Express x16 slots
1
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
PCI Express x1 slots
1
Number of HDDs supported
1
Maximum internal memory supported by processor
192 GB
Supported memory clock speeds
4800,5200,5600,6000,6200,6400,6800,7000,7200,7600 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
No
Depth
24.4 mm
Width
244 mm
Height
35 mm
Component for
PC
Package width
265 mm
Package depth
265 mm
Package height
54 mm
Package weight
1.07 kg
Product colour
Brown
Country of origin
China
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cables included
SATA
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
DisplayPort version
1.4
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
192 GB
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
USB connector type
USB Type-A, USB Type-C
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD A620
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
1
HDCP
Yes
Headphone outputs
3
