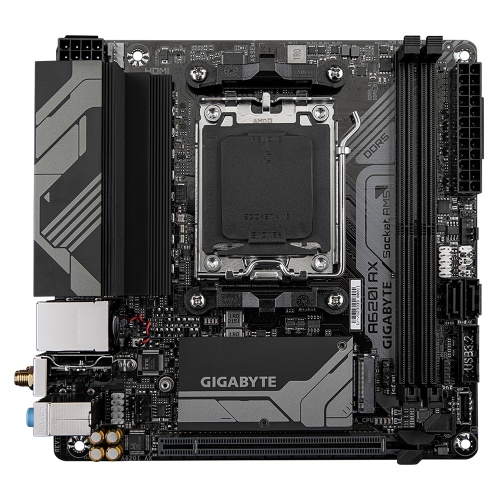

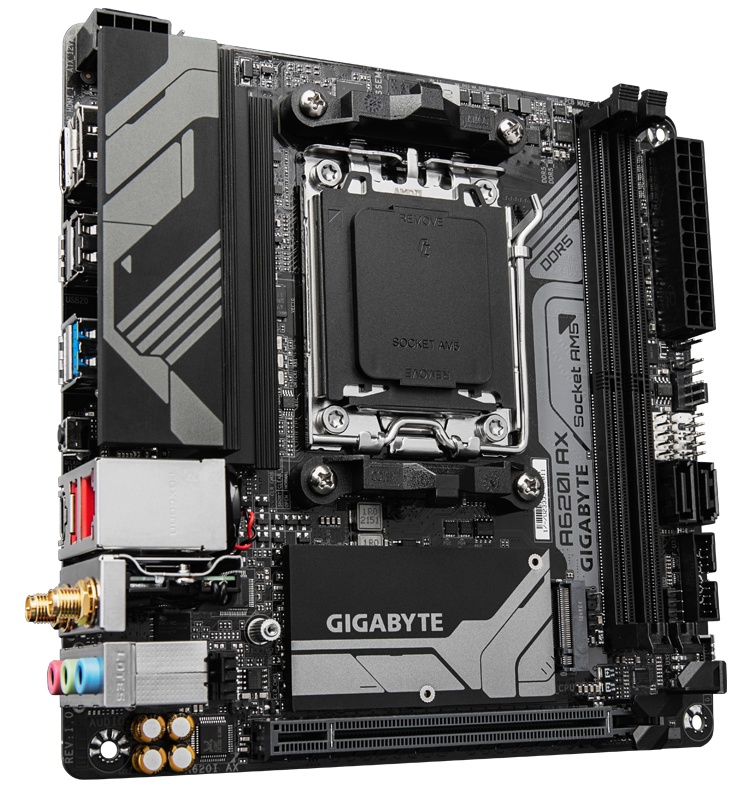

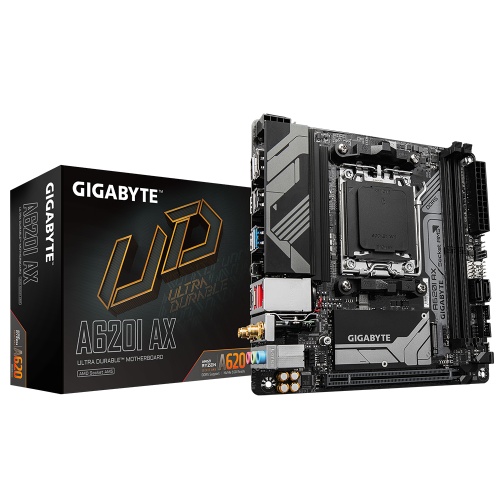

Placa de baza Gigabyte A620I AX, Socket AM5, DDR5, Mini-ITX
687 89 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
MB GIGABYTE A620I AX (rev. 1.0) AM5, 2xDDR5, 1x Display Port, 1x HDMI, mini-ITX https://www.gigabyte.com/Motherboard/A620I-AX-rev-10/sp#sp
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
A620I AX
Categorii
Brand
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Total number of SATA connectors
2
Number of SATA III connectors
2
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
WiFi-AP antenna jack
2
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of memory slots
2
Number of M.2 (M) slots
1
USB 2.0 connectors
1
Supported memory clock speed (max)
6400 MHz
Ethernet interface type
2.5 Gigabit Ethernet
Chassis intrusion connector
Yes
RAID levels
0, 1
Number of HDDs supported
2
Compatible processor series
AMD Ryzen 7000 Series
Maximum internal memory supported by processor
96 GB
PCI Express x16 slots
1
Motherboard form factor
mini ITX
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400 MHz
Number of storage drives supported
3
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
Yes
Depth
170 mm
Width
170 mm
Height
35 mm
Component for
PC
Package width
222 mm
Package depth
180 mm
Package height
65 mm
Package weight
860 g
Product colour
Brown
Country of origin
China
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cables included
SATA
Bundled software
Norton Internet Security
DisplayPort version
1.4
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
96 GB
WLAN controller model
Realtek RTL8852CE
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
HDMI version
2.1
USB connector type
USB Type-A, USB Type-C
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD A620
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
HDCP
Yes
Headphone outputs
3
