NOU

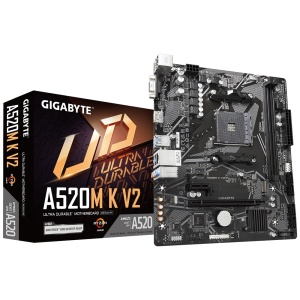

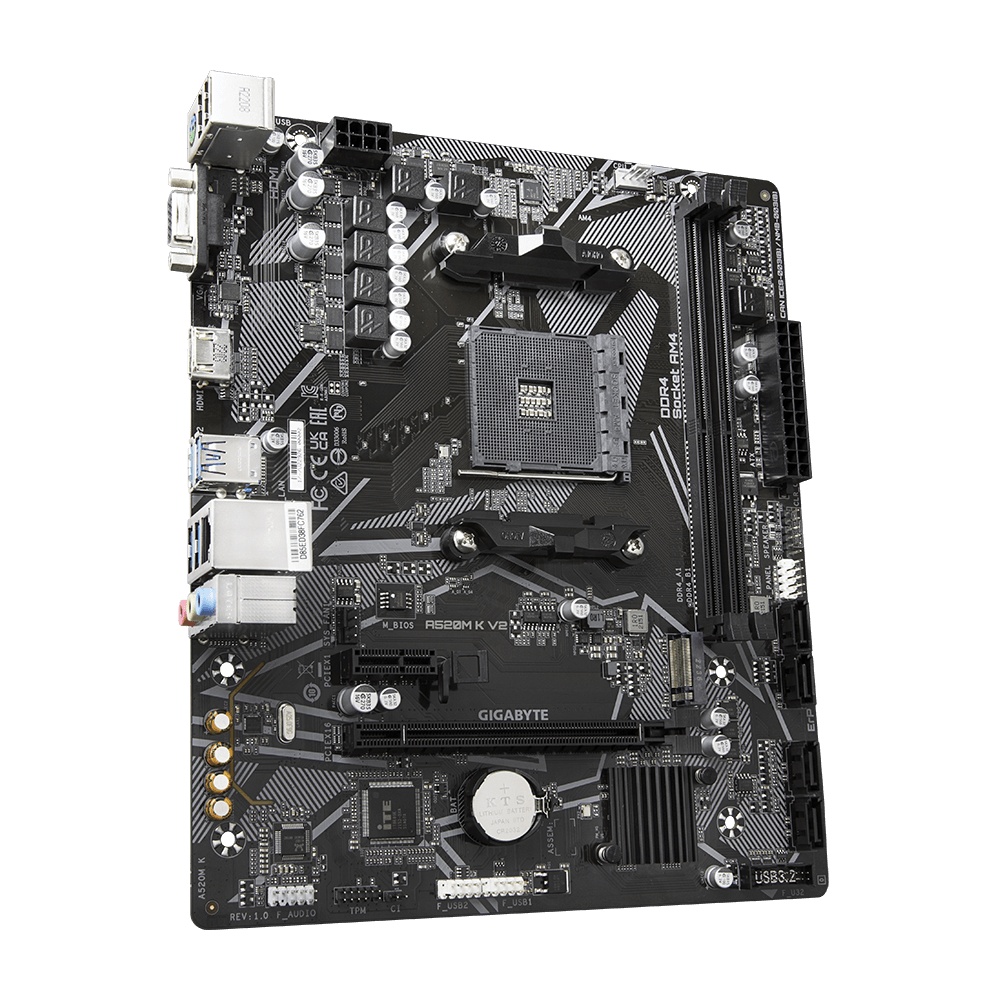

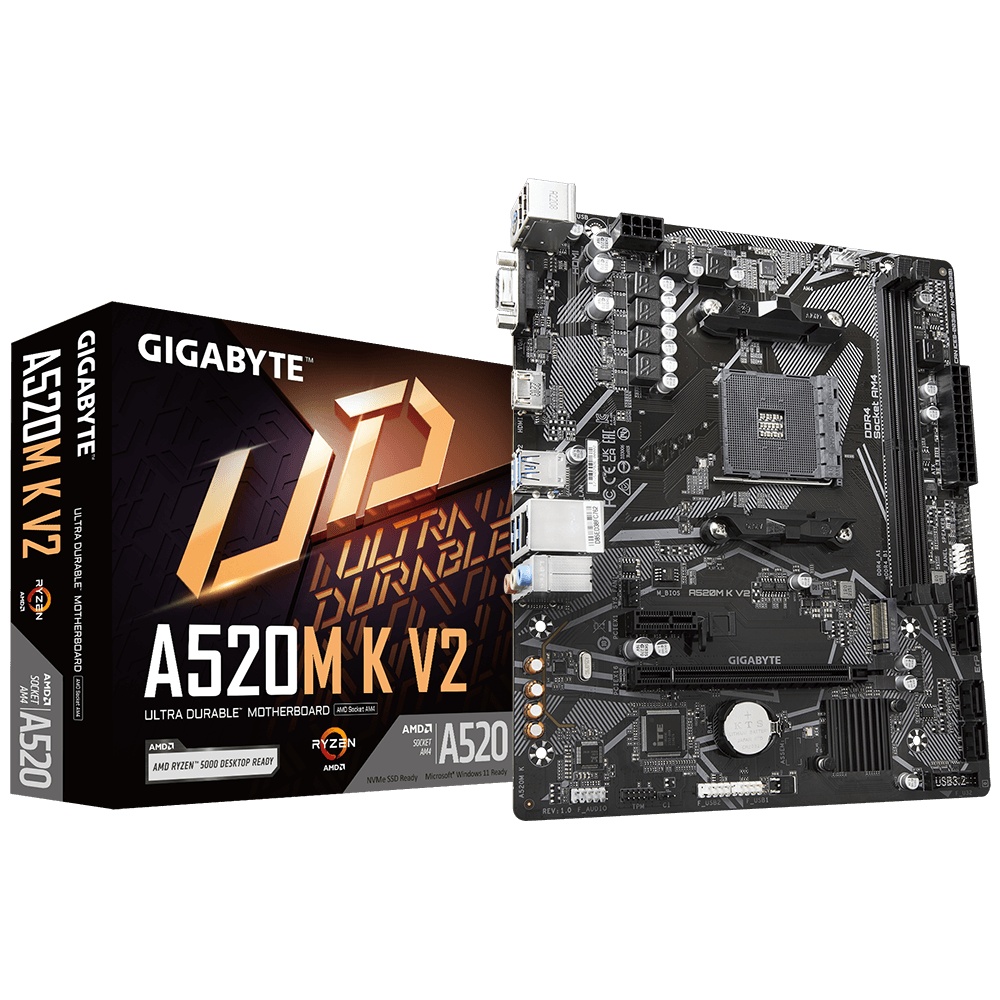

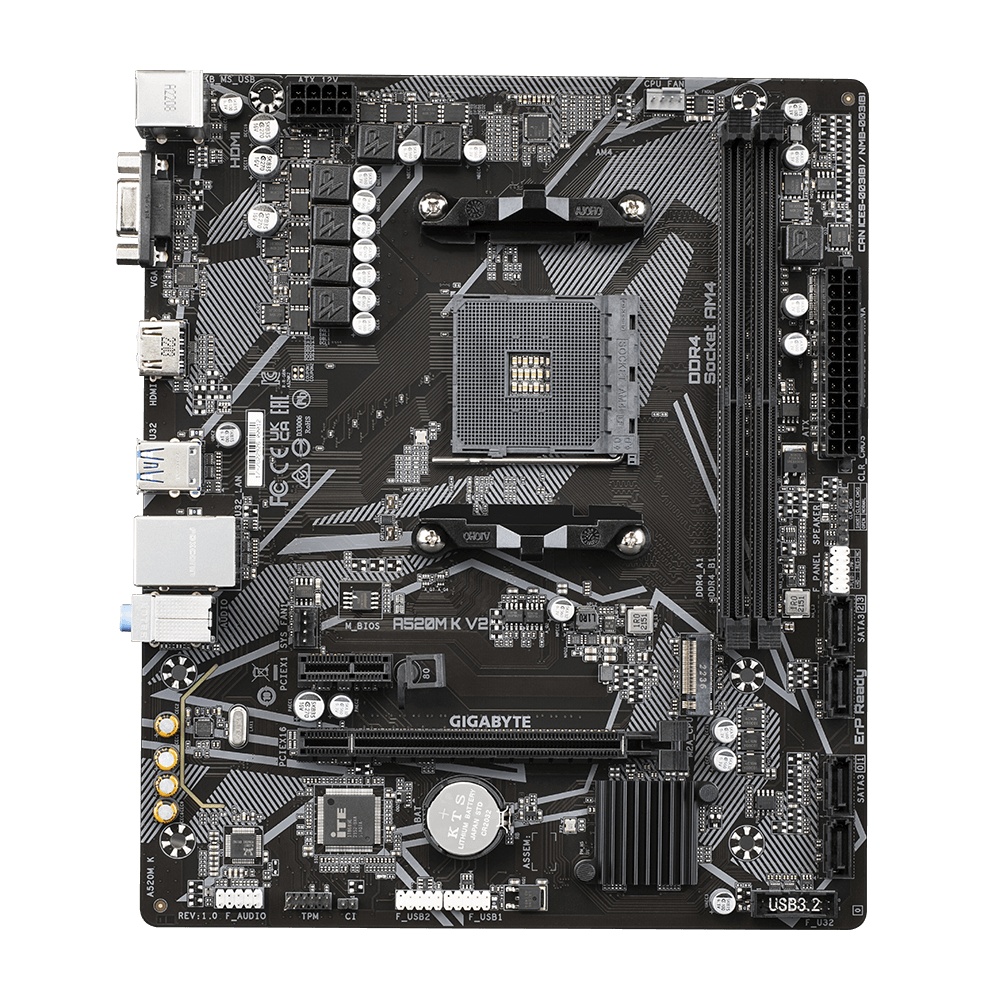

Placa de baza Gigabyte A520M K V2, Socket AM4, DDR4, Micro-ATX
268 20 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

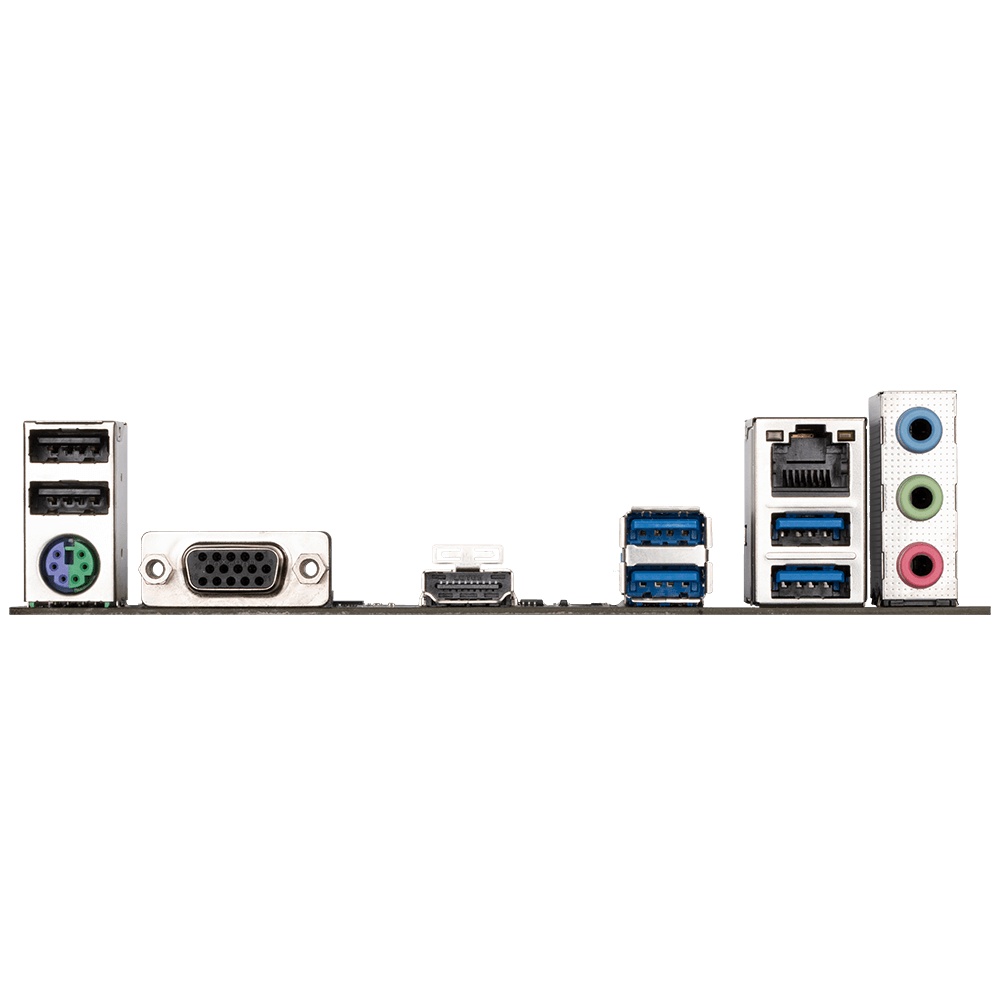

Placa de baza Gigabyte A520M K V2 AM4, 2x DDR4, 1x HDMI, 1x D-Sub, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, LAN 1 Gbps, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
A520M K V2
Categorii
Brand
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
12V power connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Microphone in
Yes
Supported storage drive types
HDD & SSD
RAID levels
0, 1, 10
USB3
4-8
PCI-Ex1
1
BIOS memory size
128 Mbit
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
MB-Format
micro-ATX
RAM-Slots
2
PCI-Ex16
1
Number of M.2 (M) slots
1
PS/2 ports quantity
1
Number of storage drives supported
5
Supported memory types
DDR4-SDRAM
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Chassis intrusion connector
Yes
PC health monitoring
Fan, Temperature, Voltage
Supported memory clock speed (max)
5100 MHz
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
MB-Socket
AM4
PCI Express x16 slots
1
PCI Express x1 slots
1
Supported memory clock speeds
2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
No
Depth
198 mm
Width
233 mm
Height
35 mm
Component for
PC
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
675 g
Country of origin
China
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cables included
SATA
Bundled software
Norton Internet Security
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
64 GB
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
USB connector type
USB Type-A
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD A520
RAID support
Yes
VGA (D-Sub) ports quantity
1
HDCP
Yes
Headphone outputs
3
