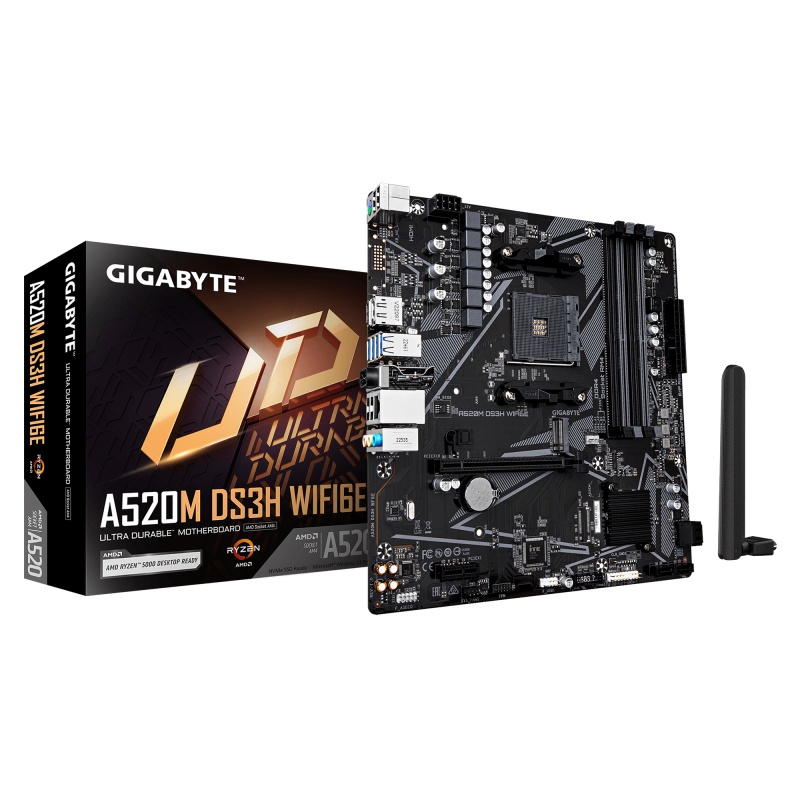

Placa de baza Gigabyte A520M DS3H WIFI6E, Socket AM4, DDR4, Micro-ATX
493 31 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
GIGABYTE A520M DS3H WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, M
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
A520M DS3H WF6E
Categorii
Brand
Wi-FI
Yes
Ethernet LAN
Yes
Bluetooth
Yes
DisplayPorts quantity
1
HDCP
Yes
Ethernet LAN (RJ-45) ports
1
Bluetooth version
5.3
HDCP version
2.3
Batteries included
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
Microphone in
Yes
Processor manufacturer
AMD
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Memory channels
Dual-channel
USB 2.0 ports quantity
4
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Maximum internal memory
128 GB
DisplayPort version
1.4
Line-in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Country of origin
China
Audio output channels
7.1 channels
PCI Express x16 (Gen 3.x) slots
1
VGA (D-Sub) ports quantity
0
Weight
880 g
Number of SATA III connectors
4
PCI Express x1 (Gen 3.x) slots
1
Products per shipping (inner) case
1 pc(s)
Warranty period
3 year(s)
DirectX version
12.0
DVI-D ports quantity
0
Parallel processing technology support
Not supported
Lithium weight per battery
0.07 g
Battery capacity
220 mAh
Battery weight
3 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
BIOS memory size
128 Mbit
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Number of M.2 (M) slots
1
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Component for
PC
Motherboard chipset
AMD A520
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
ECC сompatibility
ECC & Non-ECC
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Supported processor sockets
Socket AM4
Processor socket
Socket AM4
PS/2 ports quantity
1
RAID levels
0, 1, 10
RAID support
Yes
Height
35 mm
Width
244 mm
Power source type
ATX
Cooling type
Passive
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
Front panel connector
Yes
TPM connector
Yes
12V power connector
Yes
Number of memory slots
4
Unbuffered memory
Yes
Bundled software
Norton Internet Security (OEM version)
Antenna included
Yes
Screws included
Yes
WiFi-AP antenna jack
2
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Depth
244 mm
Maximum resolution
5120 x 2880 pixels
USB 2.0 connectors
1
Number of EPS power connectors (8-pin)
1
Maximum internal memory per slot
32 GB
Package height
68 mm
Package width
270 mm
Package depth
268 mm
Number of HDDs supported
4
1st M.2 largest key size
2280
Product colour
Dark brown
Audio Chip
Realtek ALC897
WLAN controller model
MediaTek MT7902
Number of storage drives supported
5
Supported memory clock speed (max)
4733 MHz
Windows operating systems supported
Windows 10 x64, Windows 11 x64
LAN controller
Realtek RTL8111H
1st M.2 highest PCI Express generation
3.0
PC health monitoring
Temperature, Voltage, Fan
Number of chassis fan connectors
1
Number of CPU fan connectors
1
Supported memory clock speeds
2133,2400,2667,2933,3200,3600,4000,4400,4733,3400,3466,3733,3866,4133,4266,4600 MHz
Ethernet interface type
Gigabit Ethernet, Fast Ethernet
Drivers included
Yes
Package weight
972 g
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series
