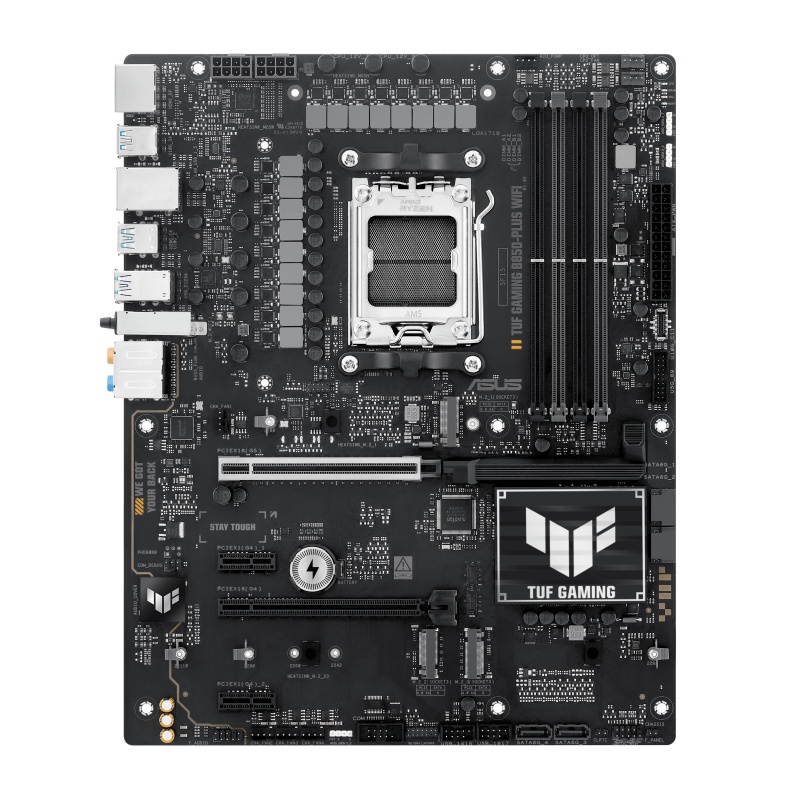

Placa de baza ASUS TUF GAMING B850-PLUS WIFI, Socket AM5, DDR5, ATX
1.452 65 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de Baza ASUS TUF GAMING B850-PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 2x PCIE 4.0 x16 2x PCIE 4.0 x1, 3x M.2, 4x SATA 6GB/s, ATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
TUF GAMING B850-PLUS WIFI
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
PCI Express x16 (Gen 4.x) slots
1
Clear CMOS button
Yes
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Number of M.2 (M) slots
3
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
Number of CPU fan connectors
2
RGB LED pin header
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Antenna included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Microphone in
Yes
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
USB3
4-8
1st M.2 largest key size
2280
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
ECC сompatibility
ECC & Non-ECC
RAID levels
0, 1, 5, 10
Number of water pump connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
Number of COM connectors
1
Thunderbolt headers
1
Chassis intrusion connector
Yes
Supported memory clock speed (max)
8000 MHz
3rd M.2 largest key size
2280
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
PCI-Ex1
2
Maximum resolution
7680 x 4320 pixels
Number of RGB LED pin headers
3
Number of EPS power connectors (8-pin)
2
Quick installation guide
Yes
PCI Express x1 (Gen 4.x) slots
2
PCI-Ex16
3
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
Yes
Depth
24.4 mm
Weight
1.32 kg
Width
30.5 mm
Component for
PC
Package width
353 mm
Package depth
273 mm
Package height
68 mm
Package weight
1.81 kg
Windows operating systems supported
Windows 11
Cables included
SATA
DisplayPort version
1.4
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
On-board graphics card
No
Audio Chip
Realtek ALC1220
Maximum internal memory
192 GB
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
Motherboard chipset
AMD B850
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
Headphone outputs
1
