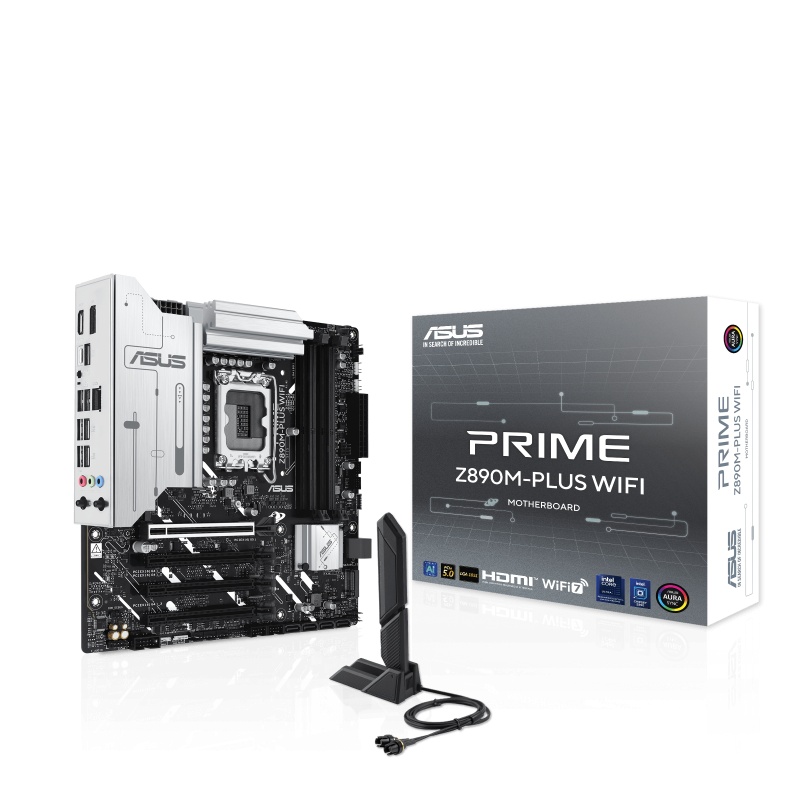

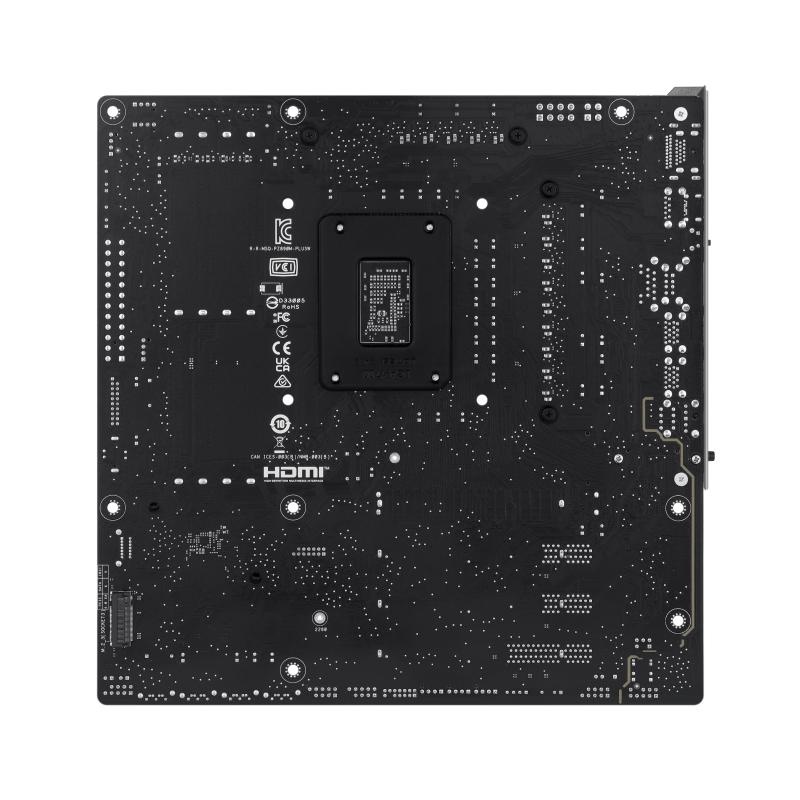

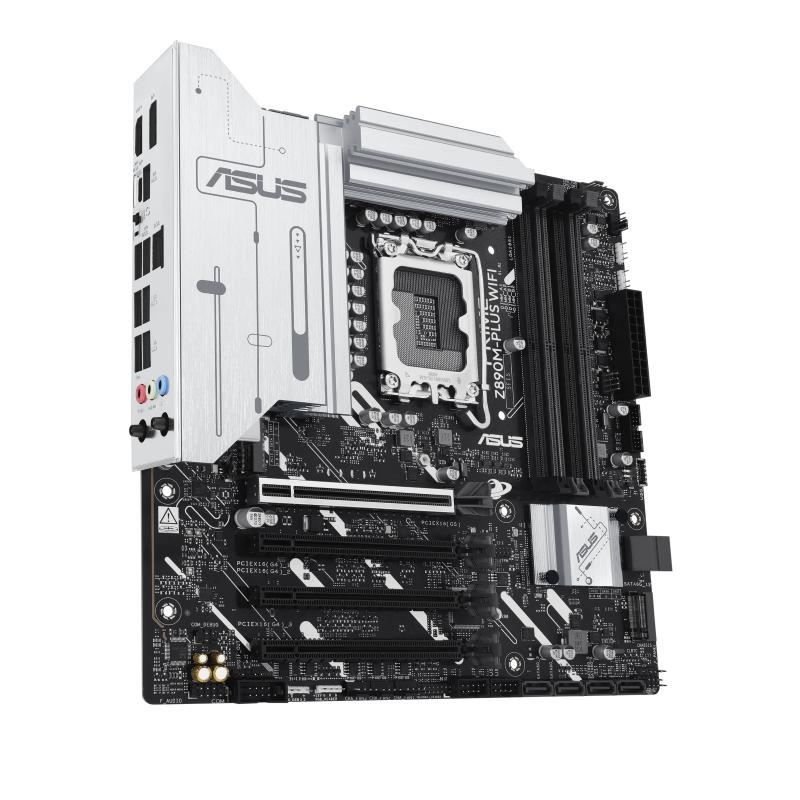

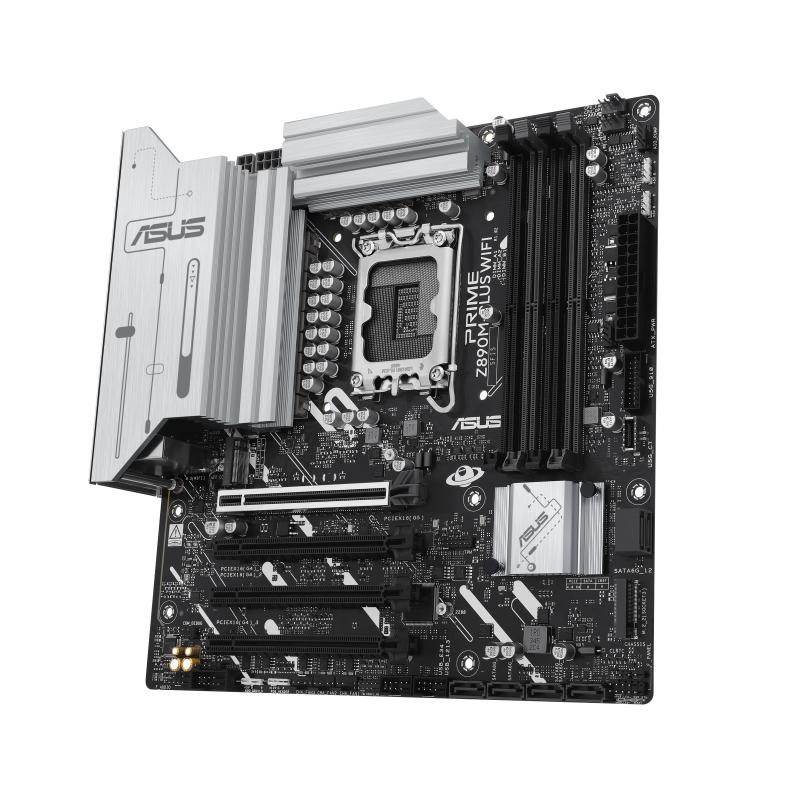

Placa de Baza ASUS PRIME Z890M-PLUS WIFI LGA1851
1.344 25 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

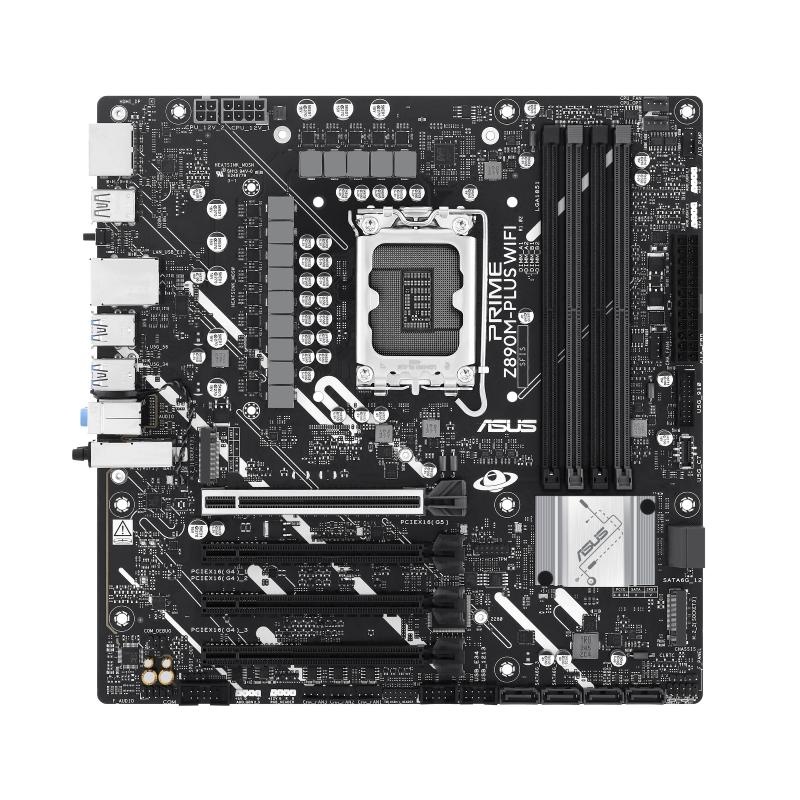

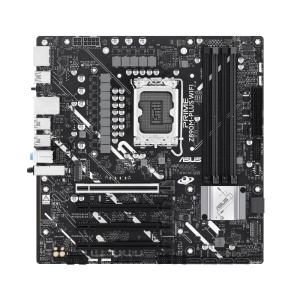

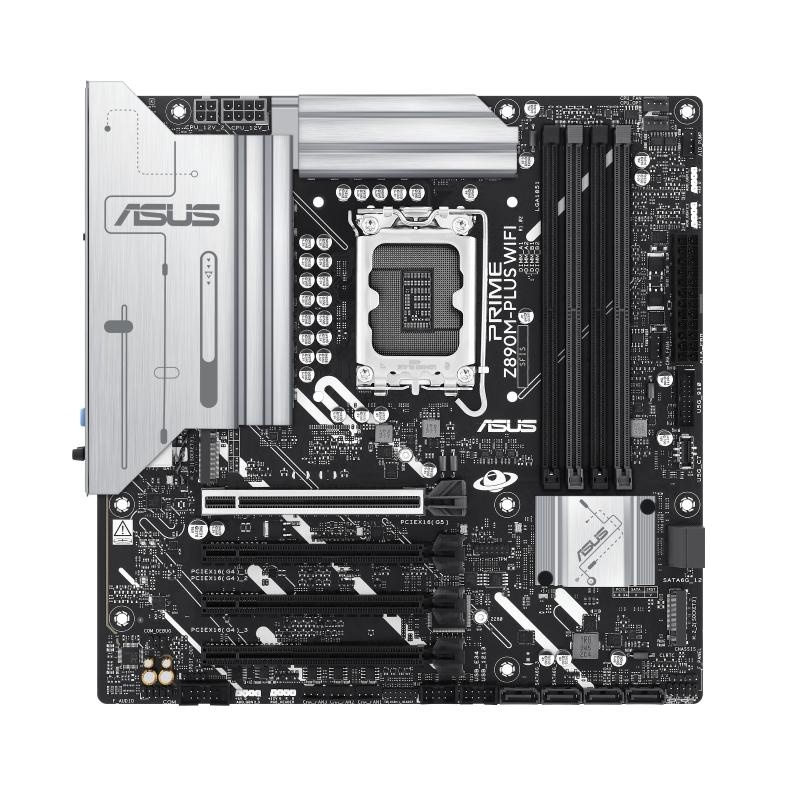

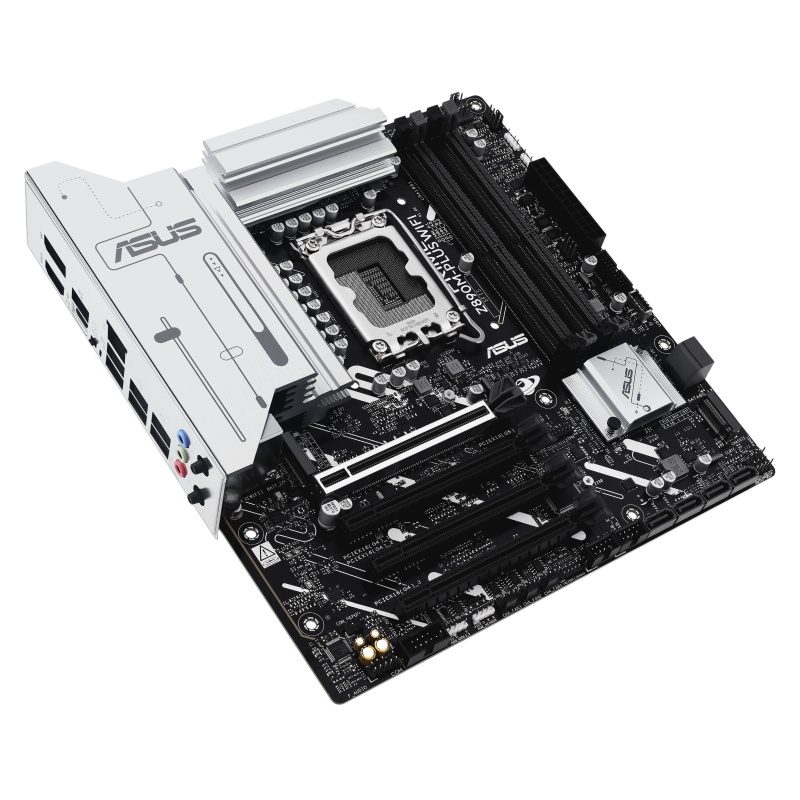

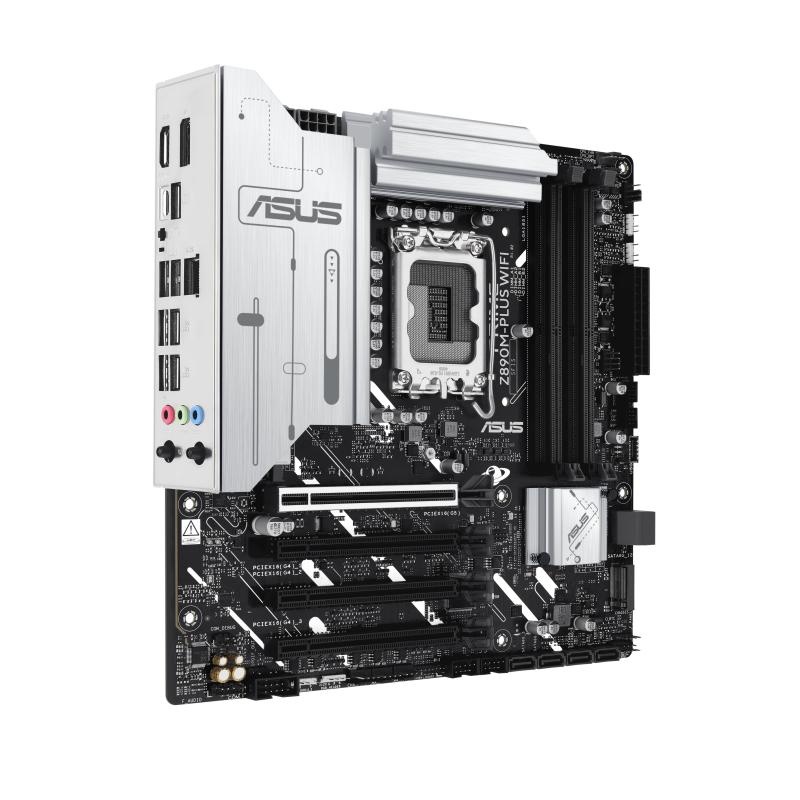

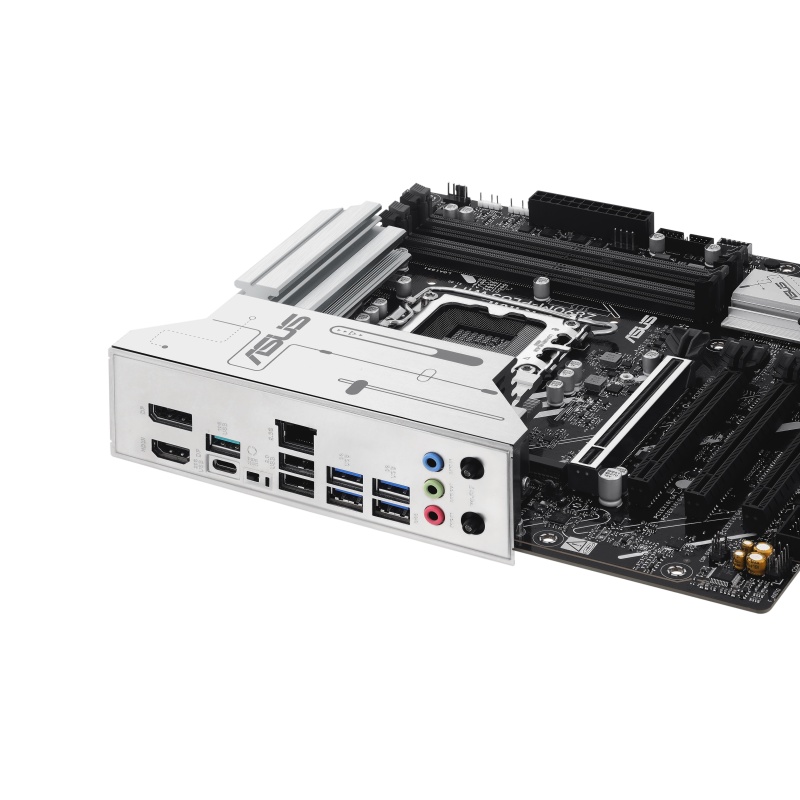

Placa de Baza ASUS PRIME Z890M-PLUS WIFI LGA1851 4x DDR5, 1x DP 1x HDMI 1x USB Type-c, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 (suporta x4) 2x PCIE 4.0 x16 (suporta x1), 3x M.2, 6x SATA 6GB/s, mATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
PRIME Z890M-PLUS WIFI
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Number of M.2 (M) slots
3
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
TPM connector
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
Screws included
Yes
DVI-D ports quantity
0
Microphone in
Yes
Supported storage drive types
HDD & SSD
RAM-Slots
4
PCI-Ex16
4
USB3
4-8
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
S/PDIF out connector
Yes
RAID levels
0, 1, 5, 10
MB-Format
micro-ATX
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
MB-Socket
LGA1851
PCI-Ex1
0
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
Number of COM connectors
1
Thunderbolt headers
1
Chassis intrusion connector
Yes
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
WiFi-AP antenna jack
1
Format
Micro-ATX (mATX)
Chipset audio integrat
Realtek
Tip Memorie
DDR5
Numar sloturi memorie
4
USB Type C
Da
PCI Express x16 (Gen 4.x) slots
3
Number of SATA III connectors
6
Number of storage drives supported
9
Number of HDDs supported
6
Soclu Procesor
Socket 1851
Model Chipset
Z890
Sloturi M.2
3
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Gaming
Nu
Wi-Fi
Yes
Depth
244 mm
Width
244 mm
Component for
PC
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.64 kg
Product colour
Aluminium, Black
Windows operating systems supported
Windows 11
Cables included
SATA
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
BLUETOOTH
Nu
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
On-board graphics card
No
Maximum internal memory
192 GB
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
Motherboard chipset
Intel Z890
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
Thunderbolt
Nu
HDMI
Da
