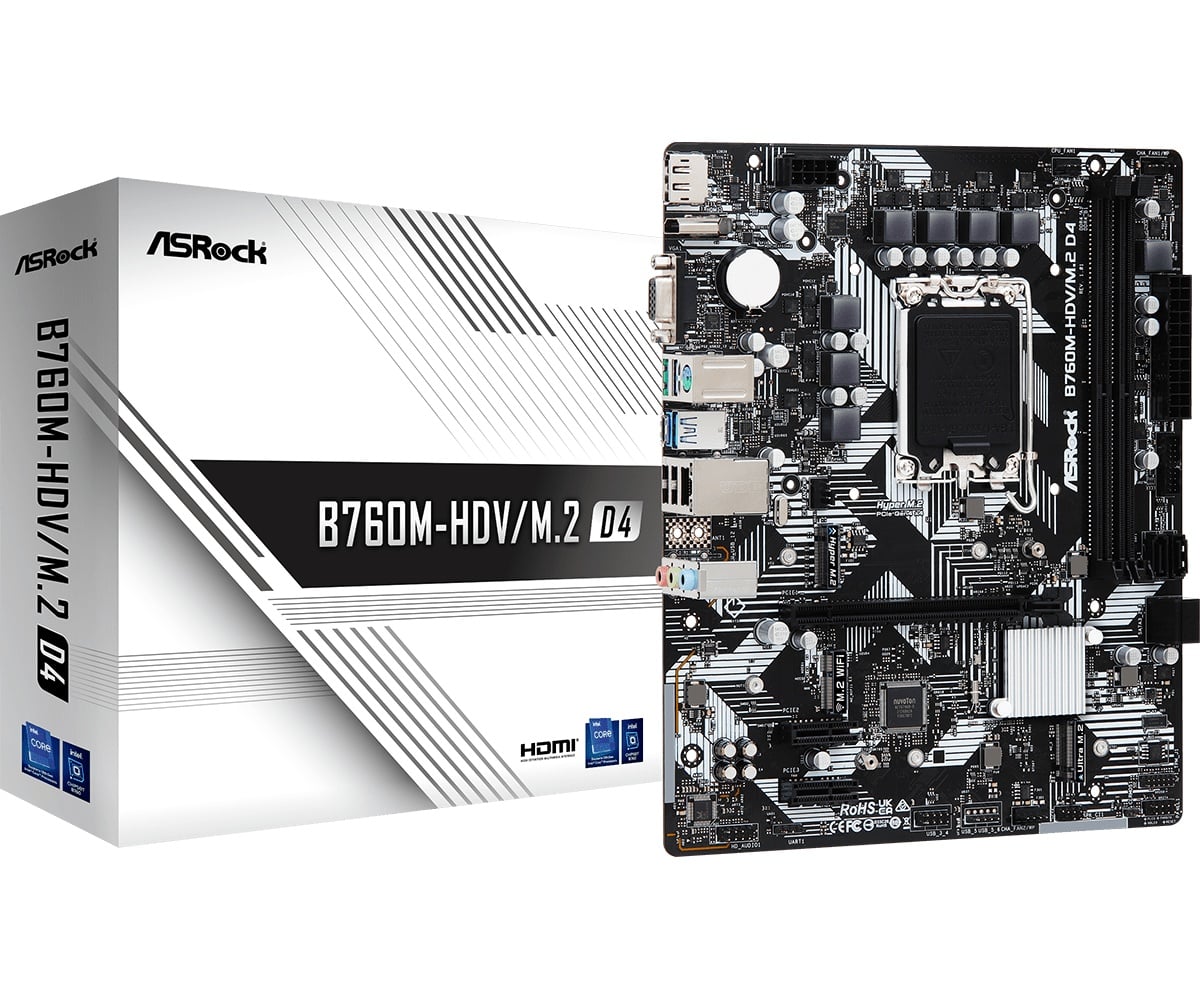

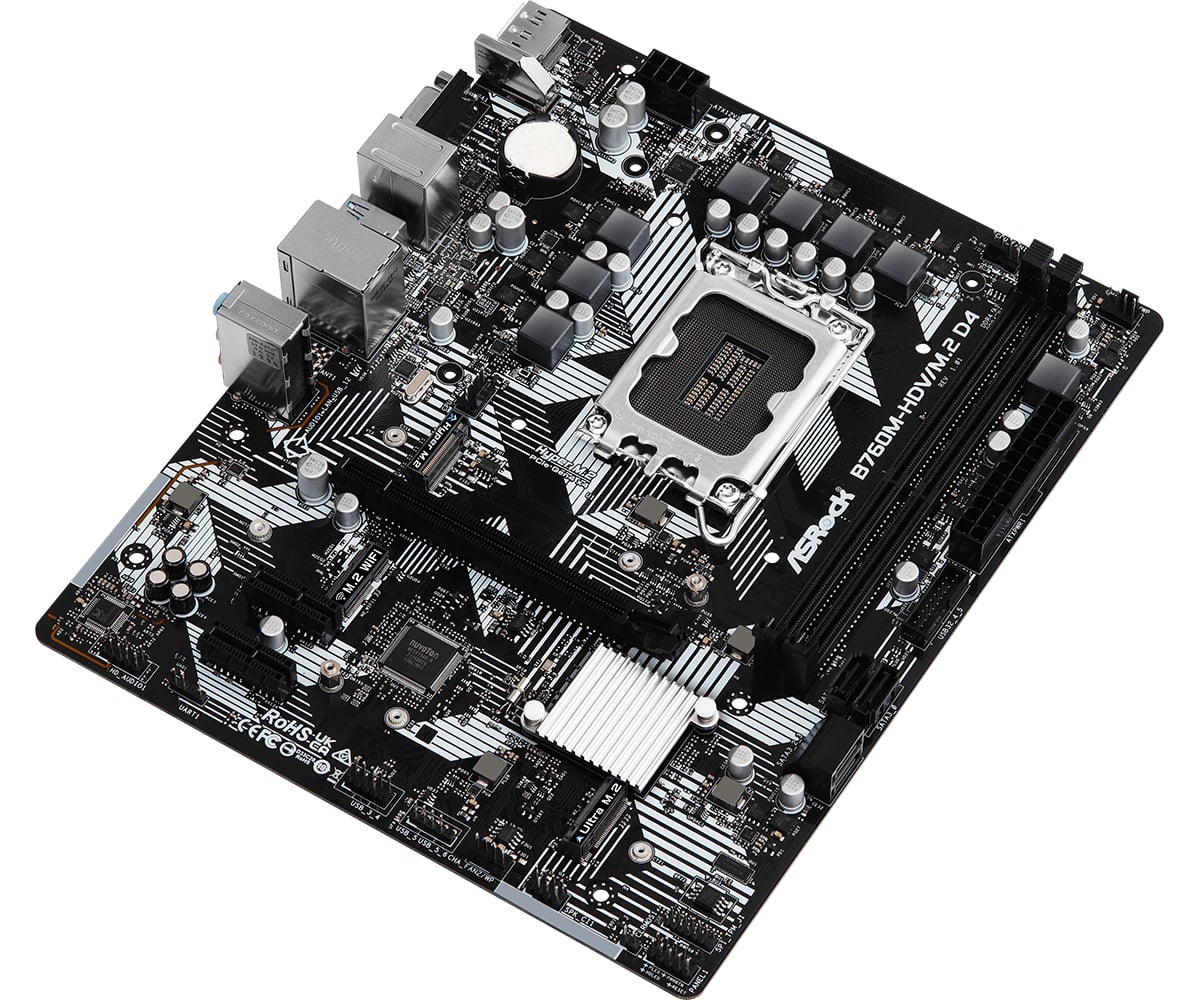

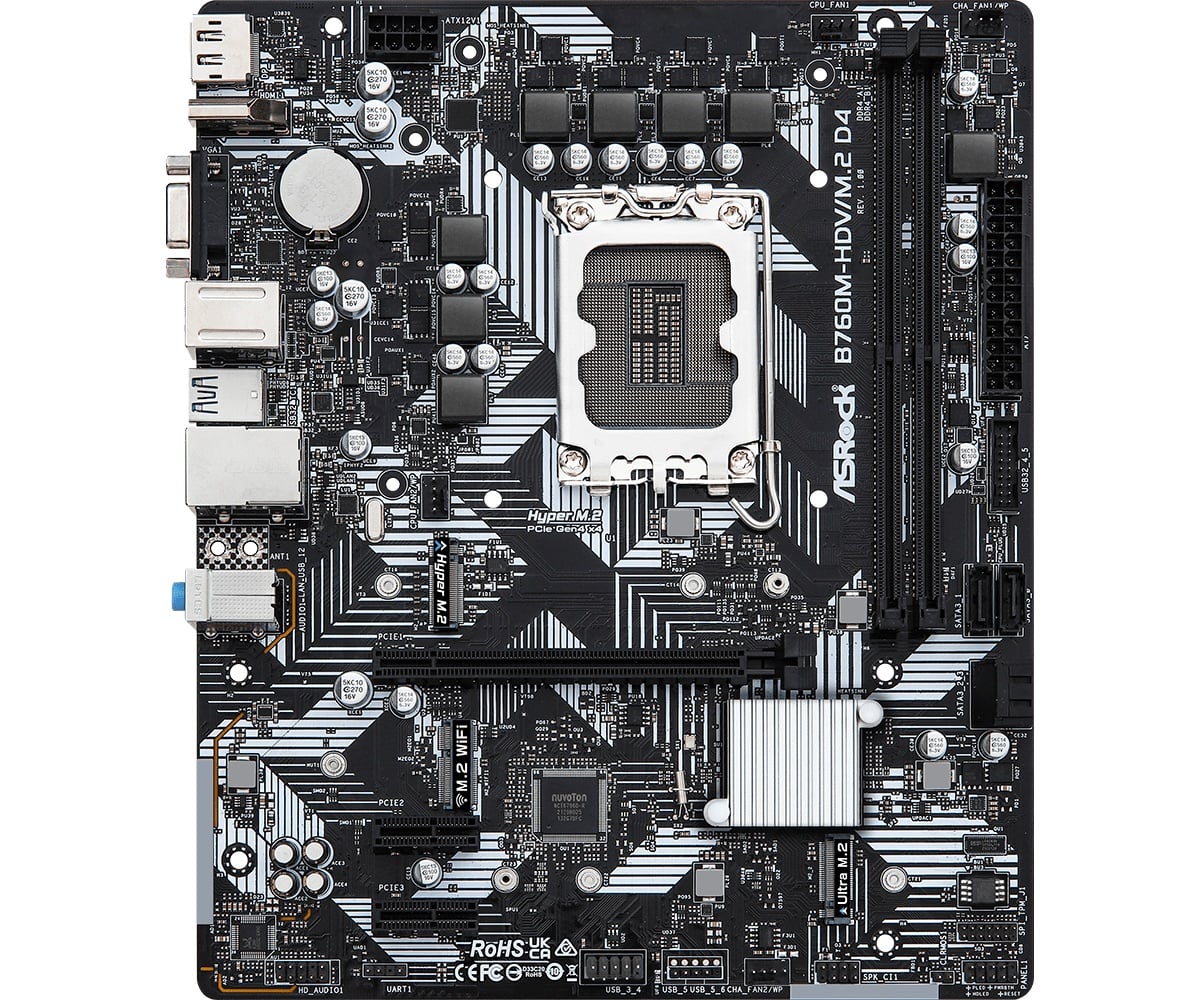

Placa de baza ASRock B760M-HDV/M.2 D4, Socket 1700, DDR4, Micro-ATX
411 79 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placa de baza Asrock B760M-HDV/M.2 DDR4, 2x DDR4, frecventa maxima 5333MHz, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 2x PCIe x1, 2x M.2, 4x SATA3 6Gbs, LAN 1Gbps, microATX
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B760M-HDV/M.2 D4
Categorii
Brand
PCI Express x1 (Gen 3.x) slots
2
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
BIOS type
UEFI AMI
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Microphone in
Yes
USB3
4-8
PCI-Ex1
1
BIOS memory size
128 Mbit
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Number of memory slots
2
Processor socket
LGA 1700
RAID levels
0, 1, 5, 10
MB-Socket
1700
MB-Format
micro-ATX
RAM-Slots
2
Number of M.2 (M) slots
1
PS/2 ports quantity
1
Supported memory types
DDR4-SDRAM
Maximum number of SMP processors
1
PCI-Ex16
2
Chassis intrusion connector
Yes
Compatible processor series
Intel Core™ i3, Intel Core™ i5, Intel Core™ i7, Intel Core™ i9
Supported memory clock speeds
3200,4400,5333 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
No
Depth
201 mm
Width
244 mm
Component for
PC
Certification
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Windows operating systems supported
Windows 10 Education x64, Windows 11 x64
Cables included
SATA
DisplayPort version
1.4
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Audio Chip
Realtek ALC897
Maximum internal memory
64 GB
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B760
RAID support
Yes
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
1
HDCP
Yes
