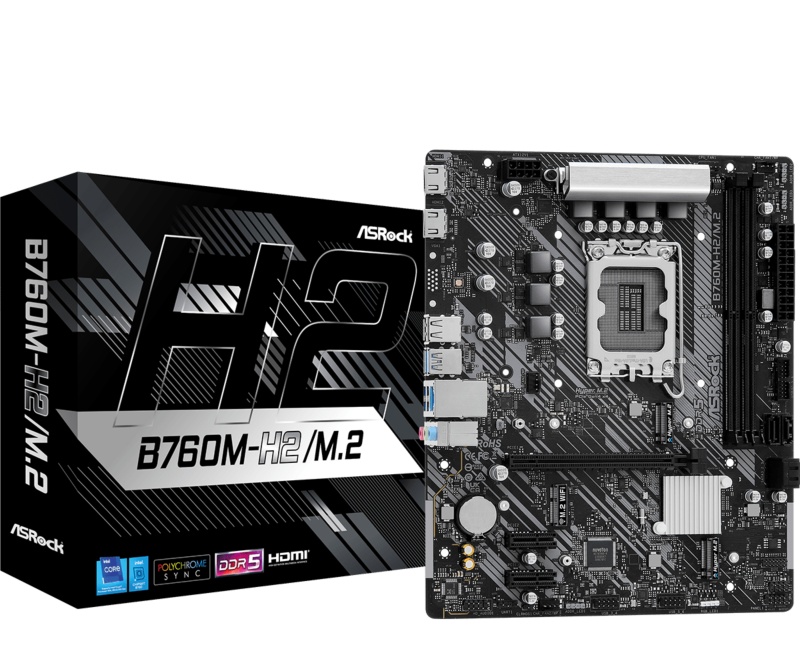

Placa de baza ASRock B760M-H2/M.2, Socket 1700, DDR5, Micro-ATX
437 12 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Placă de bază ASRock B760M-H2/M.2, micro-ATX, socket LGA1700, chipset Intel B760, suport DDR4 128 GB, PCIe 4.0 x16, slot M.2 PCIe Gen4, LAN Gigabit.
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
B760M-H2/M.2
Categorii
Brand
PCI Express x1 (Gen 3.x) slots
2
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
BIOS type
UEFI AMI
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
DVI-D ports quantity
0
Microphone in
Yes
USB3
4-8
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Number of memory slots
2
Supported memory clock speed (max)
7200 MHz
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
RAID levels
0, 1, 5, 10
MB-Socket
1700
MB-Format
micro-ATX
RAM-Slots
2
PCI-Ex16
1
PS/2 ports quantity
1
USB 2.0 connectors
4
Ethernet interface type
2.5 Gigabit Ethernet
Maximum number of SMP processors
1
Chassis intrusion connector
Yes
PCI-Ex1
2
Total number of SATA connectors
4
Number of storage drives supported
4
Number of HDDs supported
6
Maximum internal memory supported by processor
128 GB
Compatible processor series
Intel Core™ i3, Intel Core™ i5, Intel Core™ i7, Intel Core™ i9
Supported memory clock speeds
5600,6800,7200 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Wi-Fi
No
Depth
201 mm
Width
244 mm
Component for
PC
Certification
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cables included
SATA
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Audio Chip
Realtek ALC897
Maximum internal memory
128 GB
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
HDMI version
2.1
Supported storage drive interfaces
M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B760
RAID support
Yes
VGA (D-Sub) ports quantity
0
HDCP
Yes
