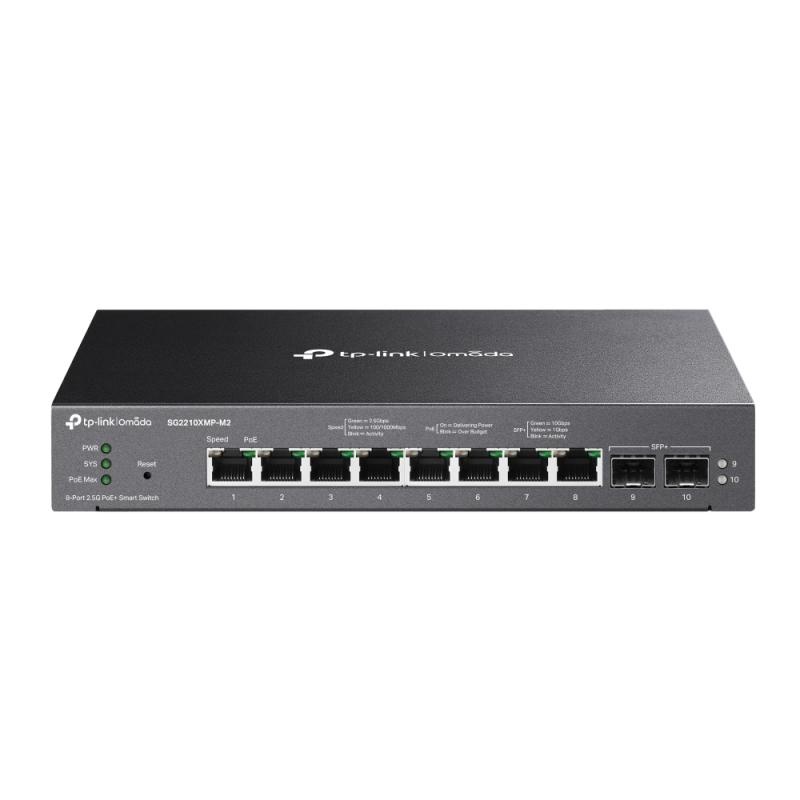

Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots SPEC: 802.3at/af, 160 W PoE Power, Desktop & Fanless Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q
1.527 74 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots SPEC: 802.3at/af, 160 W PoE Power, Desktop & Fanless Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
SG2210XMP-M2
Categorii
Brand
Reset button
Yes
Power supply included
Yes
Quality of Service (QoS) support
Yes
VLAN support
Yes
Jumbo frames support
Yes
Web-based management
Yes
Access Control List (ACL)
Yes
System event log
Yes
Static route
Yes
Power over Ethernet (PoE)
Yes
Rate limiting
Yes
Flow control support
Yes
MAC address table
16000 entries
Rack mounting
Yes
Cloud-managed
Yes
Switch type
Managed
Port mirroring
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports quantity
8
SFP module slots quantity
2
Power source
AC
IGMP snooping
Yes
Authentication type
RADIUS
Stackable
No
10G support
No
Multicast support
Yes
Installed SFP modules quantity
0
Jumbo frames
9000
MIB support
Y
Number of VLANs
4000
Broadcast storm control
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Switch layer
L2/L2+
Configuring Location Settings (CLI)
Yes
ARP inspection
Yes
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Loop protection
Yes
Switching capacity
80 Gbit/s
SFP+ module slots quantity
2
Power connector
AC/DC
Authentication
MAC-based authentication, Port-based authentication
Forwarding rate
59.52 Mpps
Packet buffer memory
9 MB
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
Virtual LAN features
Protocol-based VLAN, Tagged VLAN, Voice VLAN
Heat dissipation
614.58 BTU/h
Total Power over Ethernet (PoE) budget
160 W
DHCP features
DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping
Form factor
Desktop/Wall-Mounting
LAN-Port-Type
FastEthernet
LAN-Ports
8
Rackable
No
Redundant-PSU
No
Operating temperature (T-T)
0 - 40 C
Depth
131 mm
Width
226 mm
Height
35 mm
Power consumption (max)
180.1 W
Storage temperature (T-T)
-40 - 70 C
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance
Yes
Product colour
Black
Security algorithms
SNMP, SNMPv2, SNMPv3
LED indicators
Yes
Quick start guide
Yes
Storage relative humidity (H-H)
5 - 90%
Operating relative humidity (H-H)
10 - 90%
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Wall mountable
Yes
