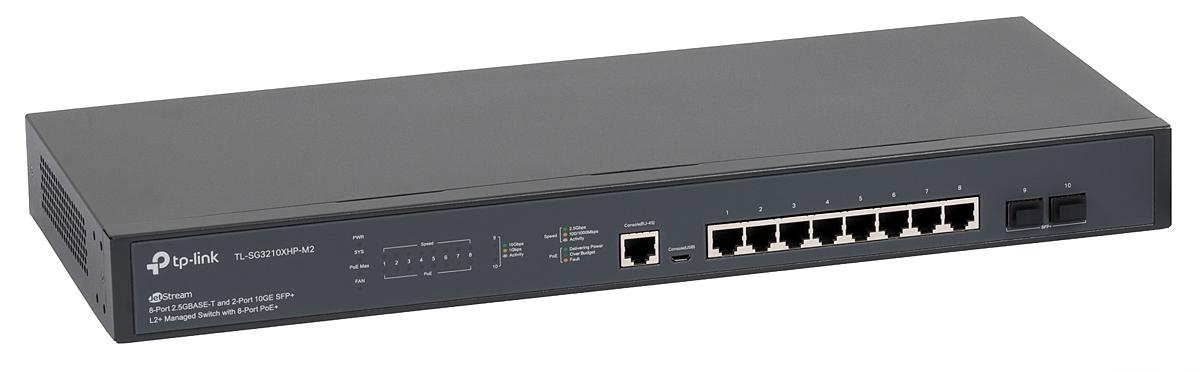

"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration
3.437 71 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
TL-SG3210XHP-M2
Categorii
Brand
Number of fans
2 fan(s)
Power supply included
Yes
Quality of Service (QoS) support
Yes
VLAN support
Yes
Jumbo frames support
Yes
Web-based management
Yes
Access Control List (ACL)
Yes
MAC address filtering
Yes
System event log
Yes
Static route
Yes
Power over Ethernet (PoE)
Yes
Rate limiting
Yes
Flow control support
Yes
MAC address table
16000 entries
Rack mounting
Yes
Cloud-managed
Yes
Switch type
Managed
10G support
Yes
Port mirroring
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports quantity
8
SFP module slots quantity
2
Power source
AC
IGMP snooping
Yes
SSH/SSL support
Yes
Stackable
No
Switch layer
L2
Multicast support
Yes
Installed SFP modules quantity
0
Jumbo frames
9000
Number of VLANs
4000
Broadcast storm control
Yes
Power over Ethernet plus (PoE+) ports quantity
8
BPDU filtering/protection
Yes
Packet buffer memory
12 MB
Configuring Location Settings (CLI)
Yes
ARP inspection
Yes
Multicast Listener Discovery (MLD) snooping
Y
Head-of-line (HOL) blocking
Yes
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Power connector
AC-in jack
Console port
RJ-45/micro-USB
GARP VLAN Registration Protocol (GVRP)
Yes
Loop protection
Yes
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
IP-MAC-Port binding
Yes
Power over Ethernet (PoE) power per port
30 W
Switching capacity
80 Gbit/s
SFP+ module slots quantity
2
Management protocols
SNMPv1/v2c/v3, SNTP
Static port security
Yes
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
2.5G Ethernet (copper) ports quantity
8
Traffic classification
Yes
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
IP routing
Yes
Authentication type
AAA, TACACS+
Layer
Layer-2
Authentication
MAC-based authentication, Port-based authentication
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Forwarding rate
59.52 Mpps
Networking standards
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Total Power over Ethernet (PoE) budget
240 W
Harmonized System (HS) code
85176990
Number of static routes
48
Number of IP interfaces
16
Heat dissipation
996.35 BTU/h
Form factor
1U
LAN-Ports
8
Rackable
No
Redundant-PSU
Yes
LAN port type
Gigabit
Operating temperature (T-T)
0 - 45 C
Depth
180 mm
Width
440 mm
Height
44 mm
Package width
528 mm
Package depth
250 mm
Package height
80 mm
Package weight
2.84 kg
Power consumption (max)
292 W
Storage temperature (T-T)
-40 - 70 C
Product colour
Black
Certification
CE, FCC, RoHS
Package type
Box
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
Cables included
AC
LED indicators
Yes
Password protection
Yes
Quick start guide
Yes
Storage relative humidity (H-H)
5 - 90%
Operating relative humidity (H-H)
10 - 90%
Ethernet LAN data rates
100,1000,2500 Mbit/s
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
