NOU

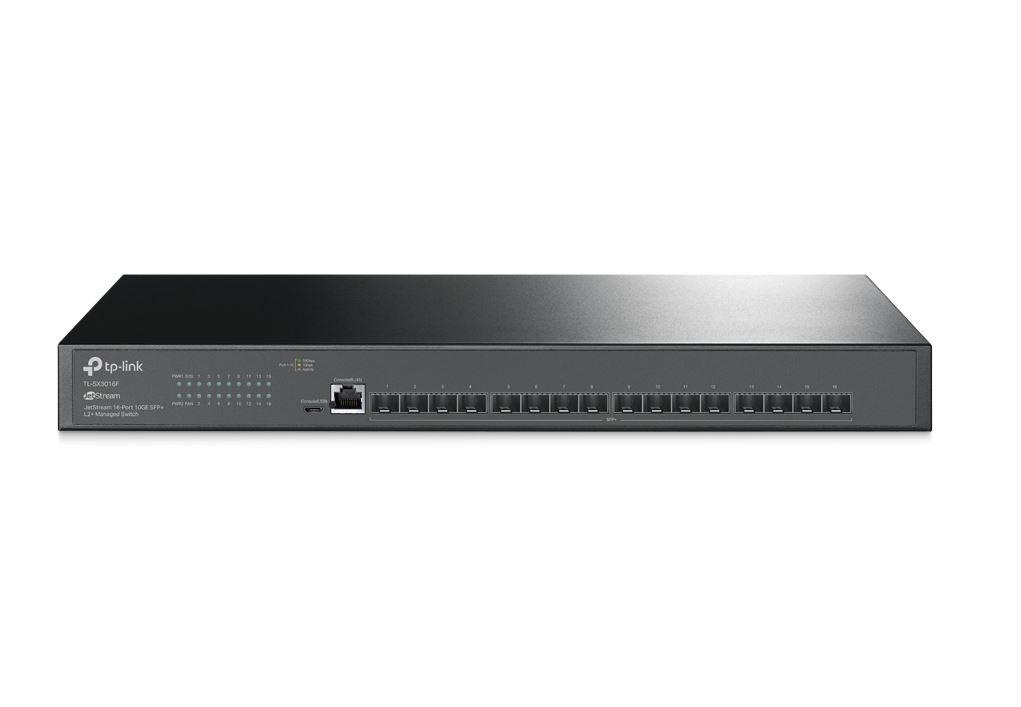

"JetStream™ 16-Port 10GE SFP+ L2+ Managed Switch PORT: 16× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ,
3.153 87 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
"JetStream™ 16-Port 10GE SFP+ L2+ Managed Switch PORT: 16× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies"
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
TL-SX3016F
Categorii
Brand
Power supply included
Yes
Quality of Service (QoS) support
Yes
VLAN support
Yes
Jumbo frames support
Yes
Web-based management
Yes
Access Control List (ACL)
Yes
MAC address filtering
Yes
System event log
Yes
Static route
Yes
Rate limiting
Yes
Flow control support
Yes
Rack mounting
Yes
Cloud-managed
Yes
Switch type
Managed
10G support
Yes
Port mirroring
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Installed SFP+ modules quantity
0
Power source
AC
IGMP snooping
Yes
SSH/SSL support
Yes
Power over Ethernet (PoE)
No
Multicast support
Yes
Switching capacity
320 Gbit/s
Installed SFP modules quantity
0
Jumbo frames
9000
Number of VLANs
4000
Broadcast storm control
Yes
BPDU filtering/protection
Yes
Rack mount kit
Yes
MAC address table
32000 entries
Configuring Location Settings (CLI)
Yes
ARP inspection
Yes
Multicast Listener Discovery (MLD) snooping
Y
Head-of-line (HOL) blocking
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Console port
RJ-45/micro-USB
Loop protection
Yes
IP-MAC-Port binding
Yes
Number of queues
8
Power connector
DC-in jack
Management protocols
SNMPv1/v2c/v3, SNTP
Static port security
Yes
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Traffic classification
Yes
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
IP routing
Yes
Basic switching RJ-45 Ethernet ports quantity
0
Basic switching RJ-45 Ethernet ports type
No
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert
DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type
AAA, TACACS+
Packet buffer memory
24 MB
Heat dissipation
111.71 BTU/h
SFP+ module slots quantity
16
SFP module slots quantity
16
Switch layer
L2/L3
Harmonized System (HS) code
85176990
Forwarding rate
23.808 Mpps
LAN port type
10Gigabit
Operating temperature (T-T)
0 - 45 C
Depth
220 mm
Width
440 mm
Height
44 mm
Package width
528 mm
Package depth
336 mm
Package height
100 mm
Package weight
37 kg
Power consumption (max)
32.74 W
Storage temperature (T-T)
-40 - 70 C
Product colour
Black
Certification
CE, FCC, RoHS
Package type
Box
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
Cables included
AC
LED indicators
Yes
Quick start guide
Yes
Storage relative humidity (H-H)
5 - 90%
Operating relative humidity (H-H)
10 - 90%
Manual
Yes
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
