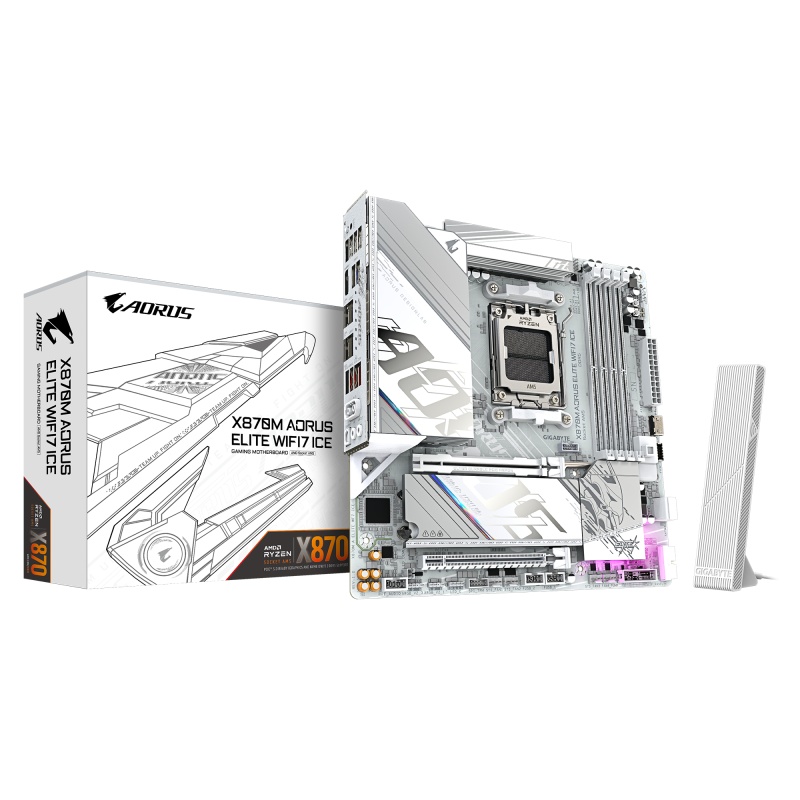

GIGABYTE X870M AORUS ELITE WIFI7 ICE. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal
1.720 40 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
GIGABYTE X870M AORUS ELITE WIFI7 ICE. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ce spun clientii
Detii sau ai utilizat produsul?
Posteaza review
Detalii
SKU
X870M A ELITE WF7 ICE
Categorii
Brand
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
Number of SATA III connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Batteries included
Yes
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
RAID levels
0, 1, 5, 10
Number of chassis fan connectors
4
LAN controller
Realtek RTL8125
Supported memory clock speed (max)
8200 MHz
USB 3.2 Gen 2x2 connectors
1
S/PDIF out port
Yes
Number of storage drives supported
4
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Number of HDDs supported
2
Digital audio optical out
1
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Cooling type
Passive
Wi-Fi
Yes
Depth
244 mm
Weight
1.86 kg
Width
244 mm
Height
35 mm
Component for
PC
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
2.06 kg
Product colour
White
Country of origin
China
Windows operating systems supported
Windows 11 x64
Bundled software
Norton Internet Security (OEM version)
Warranty period
3 year(s)
DisplayPort version
1.4
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
BLUETOOTH
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Battery capacity
220 mAh
Audio Chip
Realtek ALC1220-VB
Number of battery cells
1
Battery weight
3 g
Maximum internal memory
256 GB
WLAN controller model
Realtek RTL8922AE
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI version
2.1
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB4 Gen 3x2 ports quantity
2
Motherboard chipset
AMD X870
RAID support
Yes
VGA (D-Sub) ports quantity
0
HDCP version
2.3
HDCP
Yes
Headphone outputs
1
